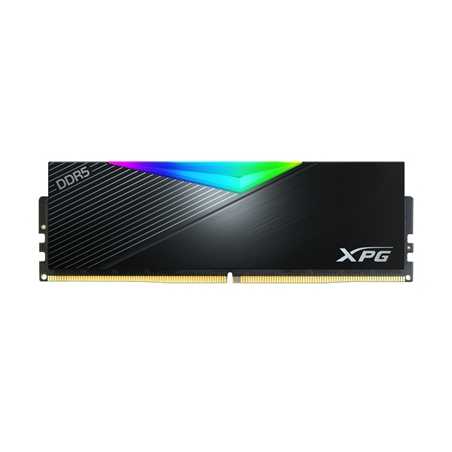

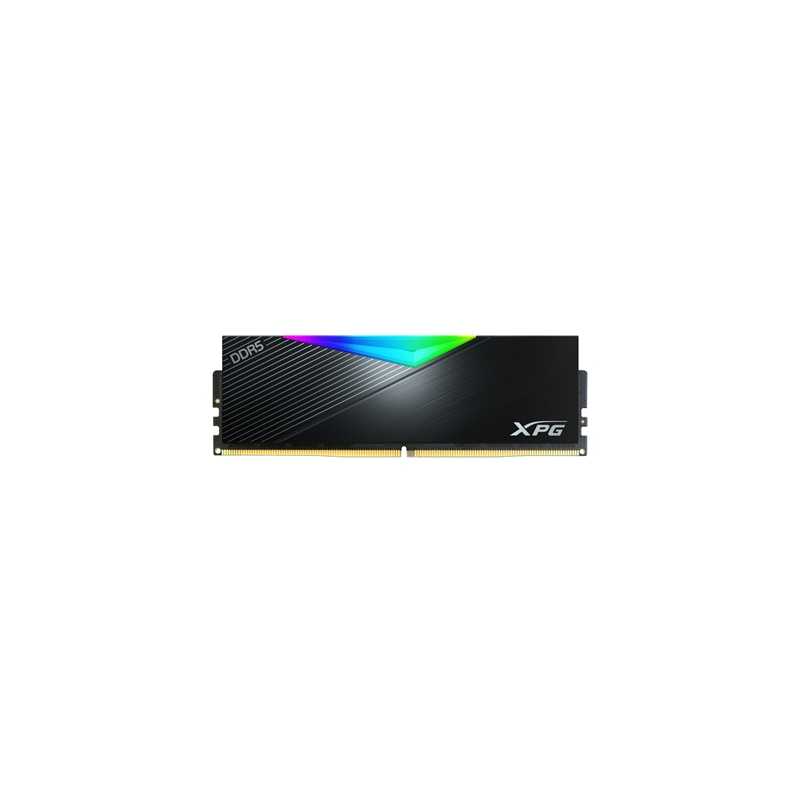

Adata XPG Lancer RGB AX5U6000C4016G-CLABK 16GB U-DIMM System Memory DDR5, 6000MHz, 1 x 16

LANCER RGB DDR5 DRAM MODULE
New speed benchmark in gaming memory
Customizable RGB light effects
PMIC for power supply stability
On-die ECC error correction
Supports Intel® XMP 3.0 and AMD EXPO for easy overclocking

A New Speed Benchmark in Gaming Memory
The XPG LANCER ushers in the DDR5 era for gaming memory. Reaching frequencies of up to 7200 MT/s, It will give you a major performance boost for gaming and overclocking.

RGB Your Way
Set the RGB lighting the way you want it. Choose from different effects (static, breathing, and comet) or sync the lights with your favorite jams via Music Mode. All this can be done through RGB control software from all the major motherboard brands.

Enhanced Power Management
The XPG LANCER DDR5 features a built-in Power Management IC (PMIC) that enhance power supply stability. It's lower operating voltage also make LANCER more power-efficient than DDR4.

Stability and Reliability
With On-die error correcting code (ECC) this module can correct errors in real-time to provide increased stability and reliability.

Made with High-Quality Materials
High-quality ICs and PCBs ensure uncompromised performance and reliable overclocking, ideal for discerning gamers and overclockers.

AMD EXPO
Support for AMD EXPO (EXtended Profiles for Overclocking) and compatibility with the latest platforms for reliability and stability.

Overclocking Made Easy
With support for Intel XMP 3.0, get overclocking easily without the need to hassle with BIOS settings. There is no need to repeatedly adjust and fine-tune overclocking parameters.

QuikTips: DDR5 vs DDR4 - Appearance
DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.

QuikTips: DDR5 vs DDR4 - Chip Architecture
DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length and Prefetch are also doubled. And to ensure data integrity, they feature error correcting code (ECC) technology.

QuikTips: DDR5 vs DDR4 - Performance
The biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MT/s and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.

Specifications

Memory Type
DDR5

Colour
Black

Capacity
16GB

Speed
6000MHz

CAS Latencies
30-40

Operating Voltage
1.25V-1.4V

Operating Temperature
0°C to 85°C

Dimensions (L x W x H)
133.35 x 40 x 8mm

Weight
72.4g

Warranty
Limited lifetime warranty
