- Out of stock

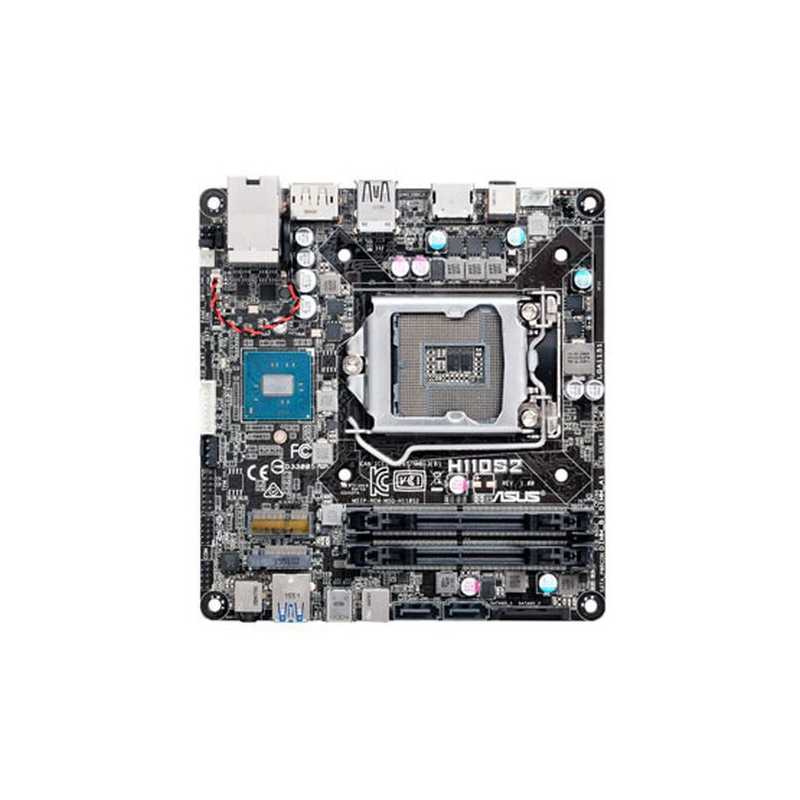

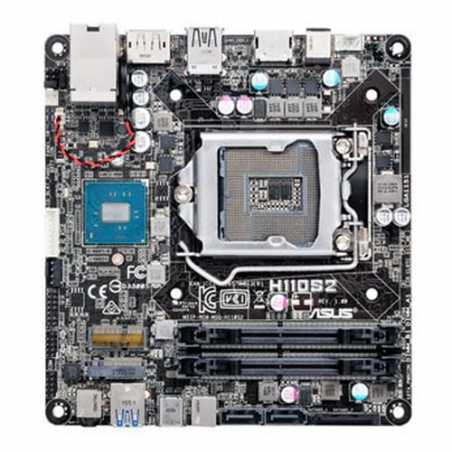

Asus H110S2, Intel H110, 1151, Mini STX, DDR4 SODIMM, M.2, HDMI, DP, USB3 Type-C, DC Jack, Dual GB LAN
£77.99
VAT included
Full-featured mini-STX H110 with 5X Protection II for dependable stability, DDR4 support, UEFI BIOS with EZ Flash 3, and dual gigabit LAN.
- 5X Protection II: Advanced hardware safeguards for all-round protection.
- High-speed memory: DDR4 compatibility
- Future-proof: USB 3.0 Type-C connector
- Supports multiple graphics outputs: DisplayPort, HDMI, and LVDS
- Fan Xpert: Dedicated CPU and case-fan controls
Dependable Stability
______________________________________________________________
5X Protection II
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.
Superb Performance
______________________________________________________________
Make your memory go faster
______________________________________________________________
DDR4 Support
Make your memory go faster
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.
S.M.A.R.T
Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.
Q-Fan Control
You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Mode
Intuitive Graphical Fan Control:
Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP:
Improve your DRAM performance with a click.
SATA Information:
View SATA port details for easy device recognition.
Fast Clock Adjustment:
Use mouse controls to change the time and date.
Advanced Mode
GPU POST:
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase:
Restore your SSDs to factory-fresh condition.
Last Modified Log:
Track last change and save preferred profiles onto a USB drive.
SATA Port Renaming:
Rename SATA ports for easy identification.
Ultrafast Transfer Speed
______________________________________________________________
______________________________________________________________
M.2
With x4 PCI Express 2.0 bandwidth, M.2 supports up to 20 Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
With x4 PCI Express 2.0 bandwidth, M.2 supports up to 20 Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
Optimized Cooling
______________________________________________________________
______________________________________________________________
Fan Xpert
Dedicated CPU and case fan controls
Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!
One-Stop Control
______________________________________________________________
______________________________________________________________
AI Suite 3
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Mini STX
- Socket: 1151 - Sky Lake / Kaby Lake
- Chipset: Intel H110
- #Hide#DDR Type: DDR4 SO-DIMM
- RAM Technology: DDR4 SO-DIMM (Dual Channel)
- RAM Slots: 2 x SODIMM
- RAM Speeds: 2133 MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI Express: -
- PCI: -
- Storage: 2 x SATA III
1 x M.2 Socket (2280) - SATA & PCIe - RAID: -
- Wireless: -
- LAN: Dual GB LAN
- Audio: Realtek ALC3236 4-Channel High Definition Audio CODEC
- USB Ports Supported: 1 x USB 3.0 Type-C port (at back)
1 x USB 3.0 port (at back)
1 x USB 2.0 port (at back) - Back Panel I/O Ports: 1 x HDMI
1 x DisplayPort
1 x USB 3.0
1 x DC in
Dual LAN - Front Panel I/O Ports: 1 x USB 3.0 Type C
1 x USB 3.0
Mic in
Headphone/Mic Combo - Internal I/O Connectors: 2 x M.2 Socket 1 & 3
1 x COM port
2 x SATA 6Gb/s
1 x SATA power
1 x CPU Fan
1 x Chassis Fan
1 x Clear CMOS
1 x FPD brightness
1 x Panel off
1 x LVDS
1 x 14-1 pin TPM
1 x System panel - .: 2 x M.2 Socket 1 & 3
1 x COM port
2 x SATA 6Gb/s
1 x SATA power
1 x CPU Fan
1 x Chassis Fan
1 x Clear CMOS
1 x FPD brightness
1 x Panel off
1 x LVDS
1 x 14-1 pin TPM
1 x System panel - CPU Support: See manufacturers link (next to product images)
- Accessories: Users manual
I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cables
2 x M.2 Screw Package
1 x Supporting DVD - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 1.1600 kg
- Warranty: 3 Years
