- Out of stock

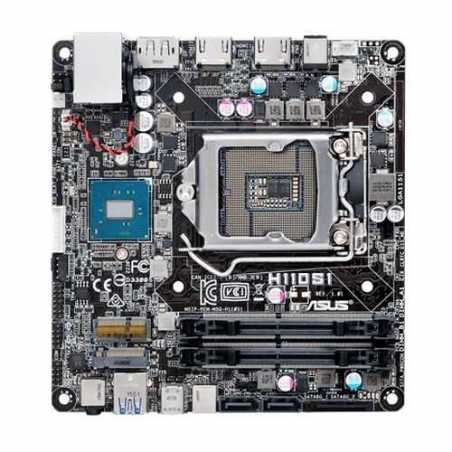

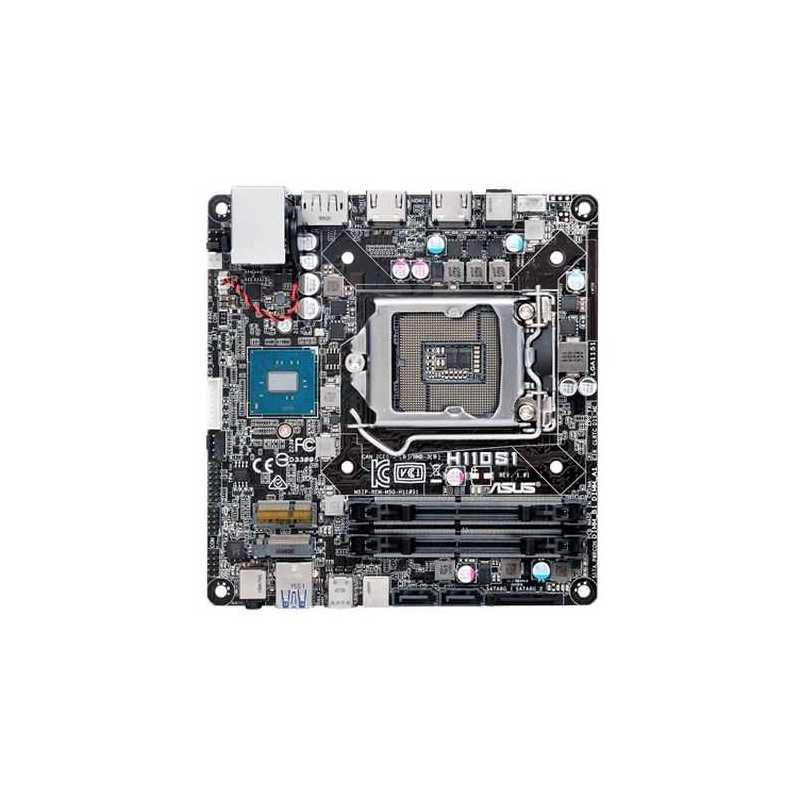

Asus H110 S1 CSM - Corporate Stable Model, Intel H110, 1151, Mini STX, DDR4 SODIMM, M.2, 2 HDMI, DP, USB3 Type-C, DC Jack
£81.33
VAT included
Full-featured mini-STX H110 with 5X Protection II for dependable stability, DDR4 support, and UEFI BIOS with EZ Flash 3.
- 5X Protection II: Advanced hardware safeguards for all-round protection
- High-speed memory: DDR4 compatibility
- Future-proof: USB 3.0 Type-C connector
- Supports multiple graphics outputs: DisplayPort, 2 x HDMI and LVDS
- Fan Xpert: Dedicated CPU and case-fan controls
Dependable Stability
______________________________________________________________
5X Protection III
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.
Superb Performance
______________________________________________________________
DDR4 Support
Make your memory go faster
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
Ultrafast Transfer Speed
______________________________________________________________
M.2
M.2 With x4 PCI Express 2.0 bandwidth, M.2 supports up to 20Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
Optimized Cooling
______________________________________________________________
Fan Xpert
Dedicated CPU and case fan controls
Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!
One-Stop Control
______________________________________________________________
AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
Intel CPU and Chipset Features
______________________________________________________________
Intel® H110 Chipset
Intel® chipset is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to four USB 3.0 ports for up to ten times faster transfer than USB 2.0. Moreover, Intel® H110 chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.
Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, dual channel (2 DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Mini STX
- Socket: 1151 - Sky Lake / Kaby Lake
- Chipset: Intel H110
- #Hide#DDR Type: DDR4 SO-DIMM
- RAM Technology: DDR4 SO-DIMM (Dual Channel)
- RAM Slots: 2 x SODIMM
- RAM Speeds: 2400/2133 MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 2 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI Express: -
- PCI: -
- Storage: 2 x SATA III
1 x M.2 Socket (2280) - SATA & PCIe - RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: Realtek ALC3236 4-Channel High Definition Audio CODEC
- USB Ports Supported: 1 x USB 3.0 (USB Type-C)
2 x USB 3.0 (1 at back)
1 x USB 2.0 (1 at back) - Back Panel I/O Ports: 1 x DisplayPort
2 x HDMI
1 x LAN (RJ45)
1 x USB 3.1 Gen1
1 x USB 2.0
1 x DC power - Front Panel I/O Ports: 1 x USB 3.0 Type C
1 x USB 3.0
Mic in
Headphone/Mic Combo - Internal I/O Connectors: 1 x M.2 Socket 3
1 x COM port
2 x SATA 6Gb/s
1 x SATA power
1 x CPU Fan
1 x Chassis Fan
1 x Clear CMOS
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off
1 x LVDS
1 x 14-1 pin TPM - .: 1 x System panel
1 x M.2 Socket 1 with E key
1 x Backlight inverter voltage selection - CPU Support: Click here for CPU support
- Accessories: Users manual
I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cables
2 x M.2 Screw Package
1 x Supporting DVD - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.6200 kg
- Warranty: 3 Years
90MB0R50-M0EAYC
Data sheet
- .
- 1 x System panel, 1 x M.2 Socket 1 with E key, 1 x Backlight inverter voltage selection
- PCI Express
- -
- Wireless
- -
- RAM Speeds
- 2400/2133 MHz
- Accessories
- Users manual, I/O Shield, 1 x SATA power cable, 2 x SATA 6Gb/s cables, 2 x M.2 Screw Package, 1 x Supporting DVD
- USB Ports Supported
- 1 x USB 3.0 (USB Type-C), 2 x USB 3.0 (1 at back), 1 x USB 2.0 (1 at back)
- Storage
- 2 x SATA III, 1 x M.2 Socket (2280) - SATA & PCIe
- RAID
- -
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Mini STX
- Socket
- 1151 - Sky Lake / Kaby Lake
- Chipset
- Intel H110
- DDR Type
- DDR4 SO-DIMM
- RAM Technology
- DDR4 SO-DIMM (Dual Channel)
- RAM Slots
- 2 x SODIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- Realtek ALC3236 4-Channel High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x DisplayPort, 2 x HDMI, 1 x LAN (RJ45), 1 x USB 3.1 Gen1, 1 x USB 2.0 , 1 x DC power
- Internal I/O Connectors
- 1 x M.2 Socket 3, 1 x COM port, 2 x SATA 6Gb/s, 1 x SATA power, 1 x CPU Fan, 1 x Chassis Fan, 1 x Clear CMOS, 1 x FPD brightness, 1 x Panel voltage selection, 1 x Panel off, 1 x LVDS, 1 x 14-1 pin TPM
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.6200 kg
- Graphics Ports
- 2 x HDMI, 1 x DisplayPort
- Additional Features
- See Overview
- Front Panel I/O Ports
- 1 x USB 3.0 Type C, 1 x USB 3.0, Mic in, Headphone/Mic Combo
- Graphics
- Supports Intel HD Graphics
