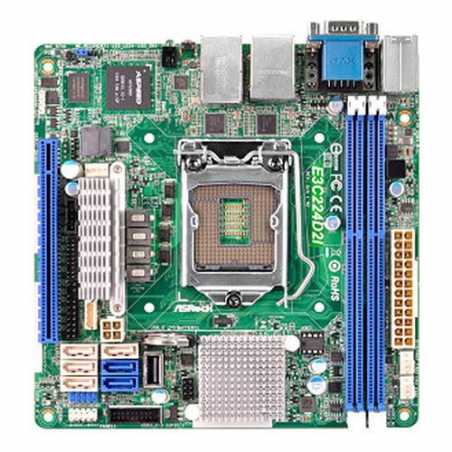

Asrock Rack E3C224D2I Server Board, Intel C224, 1150, Mini ITX, Dual GB LAN, IPMI LAN, Serial Port

£185.50

VAT included

Out of stock

E3C224D2I
MIni ITX Server Board

Mini ITX 6.7" x 6.7"
Single socket H3 (LGA 1150)
Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150)
2 x DIMM DDR3 1600/1333, Max. 16GB
1 x PCIe 3.0 x16
4 x SATA3, 2 SATA2 by Intel C224 support RAID 0,1,5,10
2 x Intel i210, support Dual GLAN with teaming function
ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
4 x USB 3.0 ports (2 rear + 2 via header )
5 x USB 2.0 ports (2 rear + 2 via header + 1 Type A)

Quantity

Out of stock

Description

Specification

Motherboard Type: Server / Workstation
Form Factor: Mini ITX
Socket: 1150
Chipset: Intel C224
#Hide#DDR Type: DDR3
RAM Technology: DDR3 ECC (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: 1600/1333 MHz
Maximum Memory: 16GB
Graphics: ASPEED AST2300
DDR3 16MB
Graphics Ports: 1 x VGA
Multi-GPU Support: -
PCI Express: 1 x PCIe 3.0 x 16
PCI: -
Storage: 4 x SATA III
2 x SATA II
RAID: "RAID 0, 1, 5, 10 and Intel Rapid Storage"
Wireless: -
LAN: Dual GB LAN & Dedicated IPMI LAN port
Audio: -
USB Ports Supported: "4 x USB 3.0 ports (2 at back, 2 at mid-board)
5 x USB 2.0 ports (2 at back, 2 at mid-board + 1 Type A)"
Back Panel I/O Ports: 1 x PS/2 KB/Mouse
1 x VGA
2 x USB 2.0 Port
2 x USB 3.0 Port
2 x GB Lan Port
1 x RJ45 Dedicated IPMI LAN port
1 x Serial Port
1 X UID Button/UID LED
Internal I/O Connectors: 1 x Auxiliary Panel
1 x IPMB
3 x 4-pin Fan
1 x ATX Power (24-pin) + 1 (4-pin)
1 x USB 3.0 Connector
2 x USB 2.0 Connector
1 x Type A USB 2.0 Port
CPU Support: See manufacturers link (next to product images)
Package Type: Retail
Additional Features: See Overview
Package Weight: 0.6650 kg
Warranty: 3 Years

Brand ASROCK_RACK

Reference E3C224D2I
