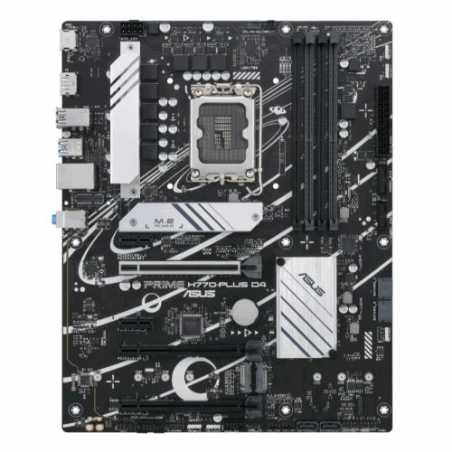

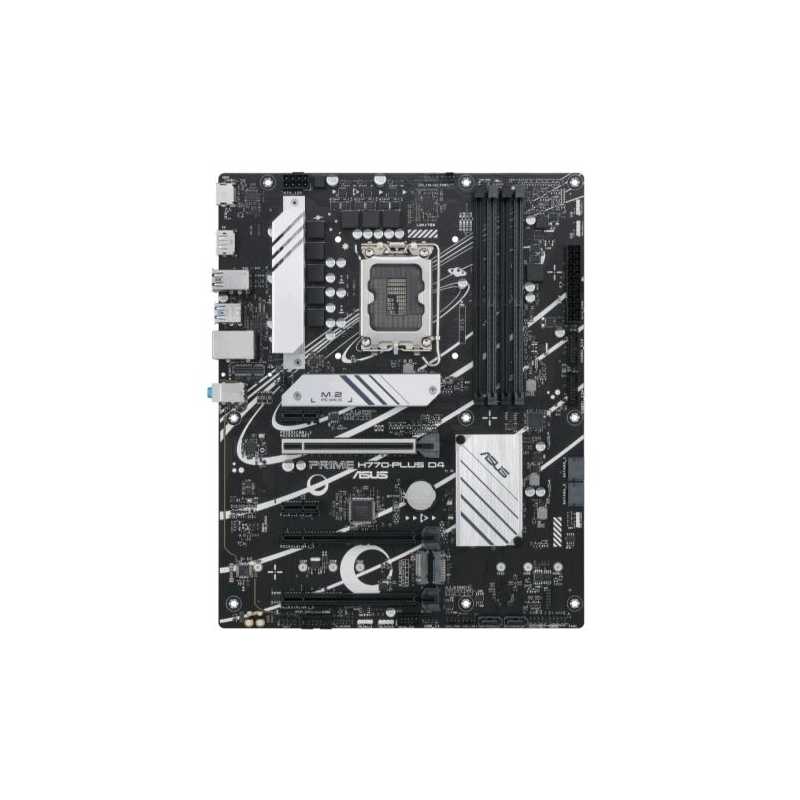

Asus PRIME H770-PLUS D4, Intel H770, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2
£193.57
VAT included
ASUS Prime H770-PLUS D4, an Intel® H770 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C® and Thunderbolt™ (USB4®) header support
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Prime
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H770-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Flexibility
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME H770-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Cooling
PRIME H770-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
The PRIME H770-PLUS D4 motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS H770 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Customization
The PRIME H770-PLUS D4 motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
** Click here for full product details **
90MB1CU0-M0EAY0
Data sheet
- .
- 1 x COM Port1 x Front Panel Audio1 x S/PDIF Out1 x SPI TPM (14-1pin)1 x 20-3 pin System Panel1 x Thunderbolt (USB4)
- Wireless
- -
- RAM Speeds
- Up to 5066(OC)
- Accessories
- 2 x SATA 6Gb/s cables1 x I/O Shield1 x M.2 Rubber Package2 x Screw packages for M.2 SSD1 x User guide
- USB Ports Supported
- 1 x USB 3.2 Gen2 Type-C (at back)2 x USB 3.2 Gen2 Type-A (at back)7 x USB 3.2 Gen1 (3 at back, 4 at mid-board)5 x USB 2.0 (2 at back, 3 at mid-board)
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - SATA & PCIe
- RAID
- Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel H770
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- LAN
- 2.5GB LAN
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C)3 x USB 3.2 Gen1 Type-A2 x USB 2.01 x DisplayPort1 x HDMI1 x Vertical M.2 (Key E)1 x Realtek 2.5Gb Ethernet3 x Audio jacks
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin AIO Pump 3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V3 x M.2 (Key M)4 x SATA 6Gb/s2 x USB 3.2 Gen12 x USB 2.03 x Addressable Gen22 x Aura RGB1 x Clear CMOS
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x162 x PCIe 4.0 x16 (support x4 mode)2 x PCIe 3.0 x1
