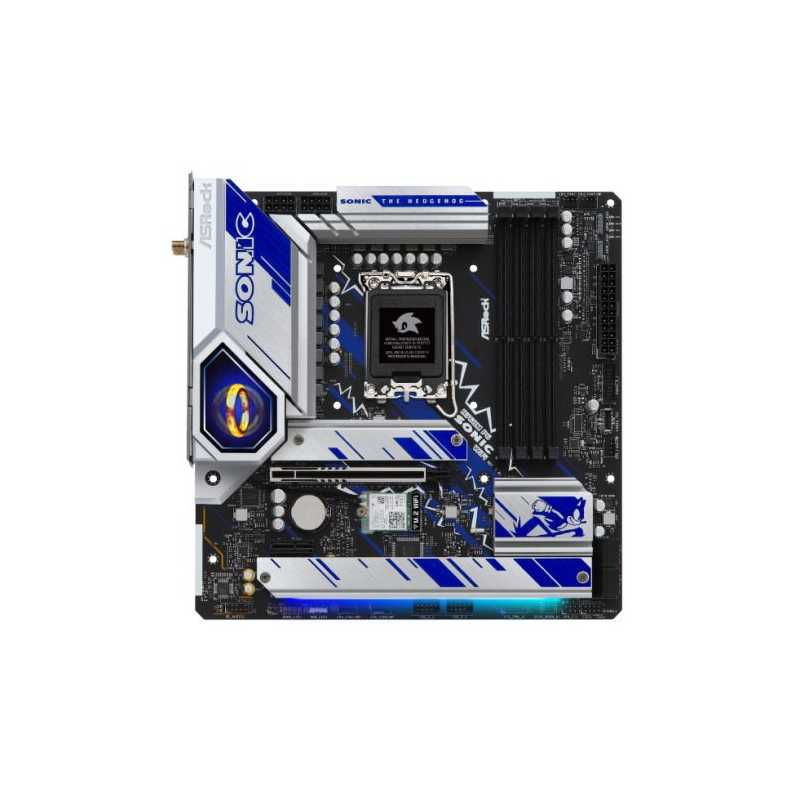

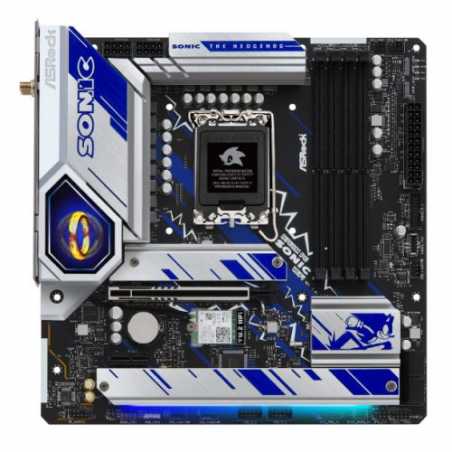

Asrock B760M PG SONIC WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2, RGB, Animated
search
  • Asrock B760M PG SONIC WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2, RGB, Animated

Asrock B760M PG SONIC WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2, RGB, Animated

£151.21
VAT included
Stock status: Very low
Last 6 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



ASRock Z790 PG SONIC, an officially licensed motherboard featuring SEGA’s Sonic the Hedgehog.


A 16-bit spinning ring emblazons the rear IO cover, while on the rear side you’ll even catch a glimpse of Sonic mid-run. The ASRock motherboard is co-launched to celebrate the release of SEGA’s new Sonic Frontiers game.

Designed to bring back epic memories of catching rings in Green Hill Zone, the motherboard echoes Sonic’s lightning speed with its fast blue and silver shards and Sonic silhouette.



  • Supports 13th Gen & 12th Gen Intel® Core Processors (LGA1700)
  • 12+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 6800MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
  • 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
  • 1 USB 3.2 Gen2 Type-A (Rear)
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front)
  • 6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN
  • 802.11ax (WiFi 6E) + Bluetooth
  • Supports ASRock Auto Driver Installer



ASROCK
B760M PG SONIC WIFI
6 Items

Data sheet

.
1 x USB 3.2 Gen11 x Front Panel Type-C USB 3.2 Gen2
Wireless
802.11ax Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/ac/axSupports Dual-Band 2x2 with extended 6GHz band support2 antennas - 2 (Transmit) x 2 (Receive) diversity techSupports Bluetooth + High speed class IISupports MU-MIMO
RAM Speeds
Up to 6800+(OC)
Accessories
1 x User Manual2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas3 x Screws for M.2 Sockets2 x Standoffs for M.2 Sockets
USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)1 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x Front Panel Type-C USB 3.2 Gen2 Header
Storage
4 x SATA III1 x M.2 (2260/2280) - PCIe1 x M.2 (2260/2280) - PCIe1 x M.2 (2260/2280) - PCIe
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Warranty
2 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel B760
DDR Type
DDR5
RAM Technology
DDR4 ECC Registered (Quad Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
LAN
2.5GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Back Panel I/O Ports
2 x Antenna1 x PS/2 Mouse/Keyboard1 x HDMI Port1 x DisplayPort 1.41 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C4 x USB 3.2 Gen12 x USB 2.01 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x eDP Signal1 x SPI TPM1 x Chassis Intrusion and Speaker1 x RGB LED3 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX2 x 8 pin 12V1 x Front Panel Audio2 x USB 2.0
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort 1.41 x eDP 1.4
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
RGB Lighting
Out of the box RGB lighting
PCI/PCI Express
1 x PCIe 5.0 x16 (supports x16 mode)1 x PCIe 4.0 x1
Wi-Fi
Yes (Wi-Fi)

Specific References

EAN13
4710483941788
