- Out of stock

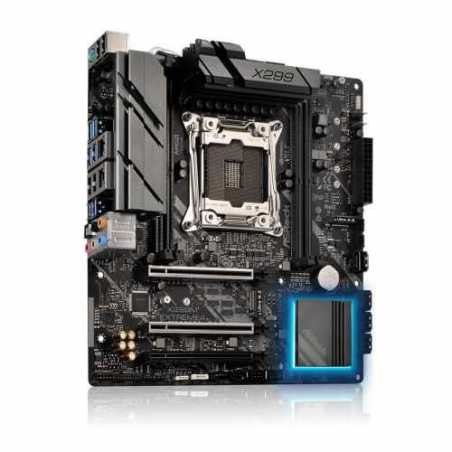

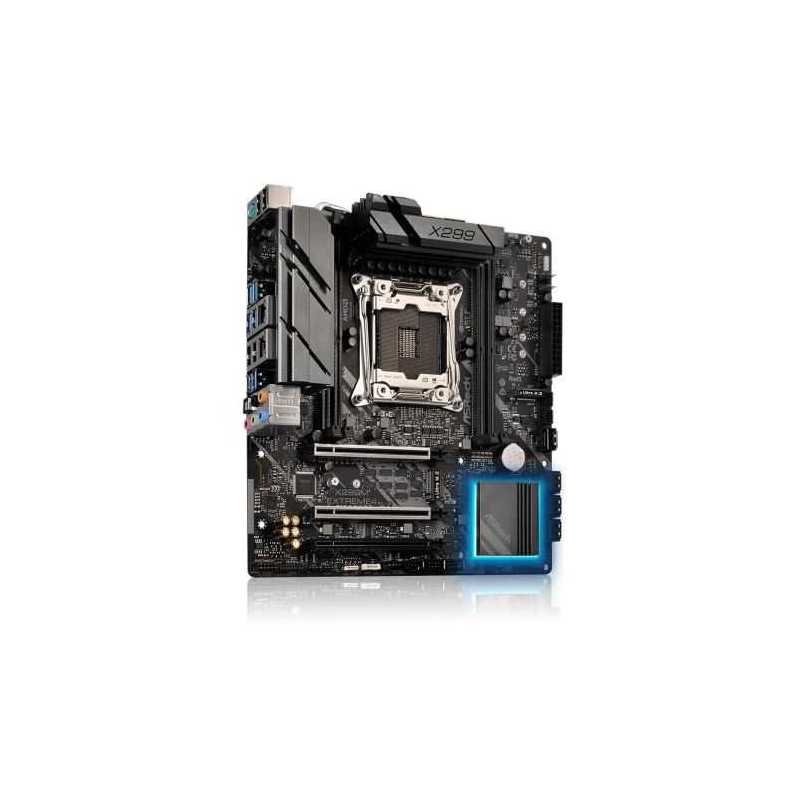

Asrock X299M EXTREME4, Intel X299, 2066, Micro ATX, DDR4, SLI/XFire, Dual LAN, RGB Lighting, M.2
£232.74
VAT included
- Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket
- 11 Power Phase Design, Dual Power Connectors
- Supports DDR4 4266+(OC)
- XXL Aluminum Alloy Heatsink & Heatpipe Design
- 3 PCIe 3.0 x16
- NVIDIA® Quad SLI™, AMD Quad CrossFireX™
- 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 Gen2 10Gb/s (1 Type-A, 1 Type-C)
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Dual Intel® Gigabit LAN
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
- ASRock RGB LED
XXL Aluminum Alloy Heatsink & Heatpipe Design
Extra-large aluminum alloy heatsink along with heatpipe that effectively take away heat from the MOSFET, so that your whole system may perform more stable.
11 Power Phase Design
Designed with an 11-Power-Phase Design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dual Power Connectors
Offering long-term reliability in various applications, this motherboard is equipped with dual power connectors to deliver cutting-edge current density.
Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance.
RGB LED
Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!
Super Alloy Motherboard
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.
Dual Intel® LAN
Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.
Purity Sound 4
It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.
PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket
- 11 Power Phase Design, Dual Power Connectors
- Supports DDR4 4266+(OC)
- XXL Aluminum Alloy Heatsink & Heatpipe Design
- 3 PCIe 3.0 x16
- NVIDIA® Quad SLI™, AMD Quad CrossFireX™
- 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 Gen2 10Gb/s (1 Type-A, 1 Type-C)
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Dual Intel® Gigabit LAN
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
- ASRock RGB LED
XXL Aluminum Alloy Heatsink & Heatpipe Design
Extra-large aluminum alloy heatsink along with heatpipe that effectively take away heat from the MOSFET, so that your whole system may perform more stable.
11 Power Phase Design
Designed with an 11-Power-Phase Design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dual Power Connectors
Offering long-term reliability in various applications, this motherboard is equipped with dual power connectors to deliver cutting-edge current density.
Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance.
RGB LED
Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!
Super Alloy Motherboard
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.
Dual Intel® LAN
Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.
Purity Sound 4
It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.
PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
X299M EXTREME4
Data sheet
- .
- 2 x USB 2.0, 1 x USB 3.1 Gen1, 1 x Performance Mode / Easy OC
2 x USB 2.01 x USB 3.1 Gen11 x Performance Mode / Easy OC - PCI Express
- 3 x PCIe 3.0 x16
- Wireless
- -
- RAM Speeds
- 4266+(OC)* / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz
- Accessories
- 2 x SATA Data Cables, 1 x ASRock SLI_HB_Bridge_1S Card, 2 x Screws for M.2 Sockets
2 x SATA Data Cables1 x ASRock SLI_HB_Bridge_1S Card2 x Screws for M.2 Sockets - USB Ports Supported
- "2 x USB 3.1 Gen 2 Type-A & Type-C (at back), 8 x USB 3.1 Gen 1 (4 at back, 2 at mid-board), 8 x USB 2.0 (4 at back, 4 at mid-board)"
2 x USB 3.1 Gen 2 Type-A & Type-C (at back)8 x USB 3.1 Gen 1 (4 at back, 2 at mid-board)8 x USB 2.0 (4 at back, 4 at mid-board) - Storage
- 8 x SATA III, 1 x M.2 (2260/2280) - SATA & PCIe, 1 x M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
8 x SATA III1 x M.2 (2260/2280) - SATA & PCIe1 x M.2 (2230/2242/2260/2280/22110) - SATA & PCIe - RAID
- "RAID 0, 1, 5, 10"
RAID 0, 1, 5, 10 - Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- 2066
Intel 2066 - Chipset
- Intel X299
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Quad Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports NVIDIA Quad-GPU SLI Technology , Supports AMD Quad-GPU CrossFireX Technology
Supports NVIDIA Quad-GPU SLI Technology Supports AMD Quad-GPU CrossFireX Technology - PCI
- -
- LAN
- Dual GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse/Keyboard, 1 x Optical SPDIF Out, 4 x USB 2.0, 1 x USB 3.1 Gen2 Type-A, 1 x USB 3.1 Gen2 Type-C, 4 x USB 3.1 Gen1, 2 x RJ-45 LAN, 1 x Clear CMOS Button, HD Audio Jacks
1 x PS/2 Mouse/Keyboard1 x Optical SPDIF Out4 x USB 2.01 x USB 3.1 Gen2 Type-A1 x USB 3.1 Gen2 Type-C4 x USB 3.1 Gen12 x RJ-45 LAN1 x Clear CMOS ButtonHD Audio Jacks - Internal I/O Connectors
- 1 x Virtual RAID On CPU, 1 x TPM, 1 x Power LED and Speaker, 2 x RGB LED, 1 x CPU Fan, 1 x CPU/Water Pump Fan, 3 x Chassis/Water Pump Fan, 1 x 24 pin ATX, 2 x 8 pin 12V, 1 x Front Audio, 1 x Right Angle Front Audio, 1 x Thunderbolt AIC
1 x Virtual RAID On CPU1 x TPM1 x Power LED and Speaker2 x RGB LED1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX2 x 8 pin 12V1 x Front Audio1 x Right Angle Front Audio1 x Thunderbolt AIC - CPU Support
- Click here for CPU support
See manufacturers link (next to product images) - Package Type
- Retail
- Package Weight
- 1.6590 kg
- Graphics Ports
- -
- Additional Features
- See Overview
- Graphics
- -
- M.2 Slot(s)
- Yes
Yes (M.2) - No. LAN Ports
- 2 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes
Yes (RGB)
Specific References
- EAN13
- 4717677335026
Comments (0)
No customer reviews for the moment.
