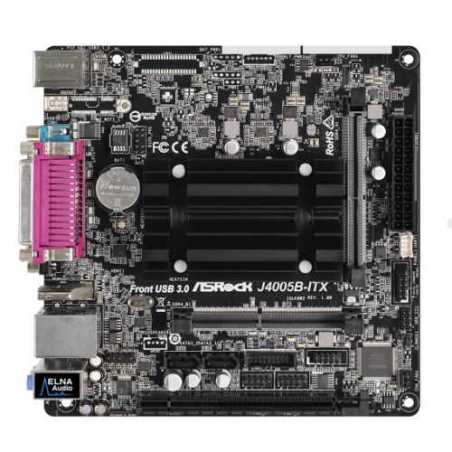

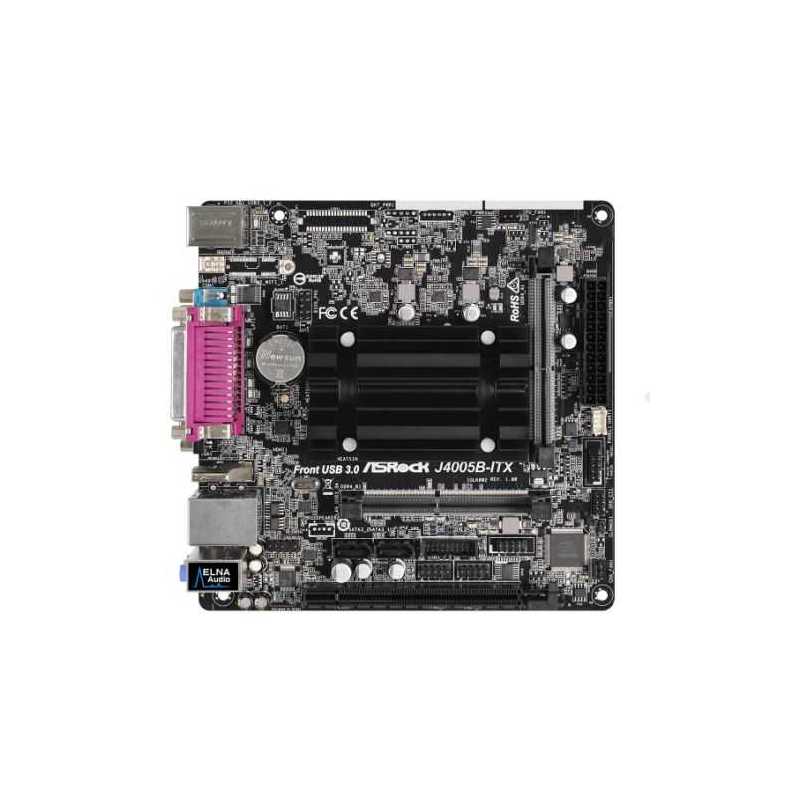

Asrock J4005B-ITX, Integrated Intel Dual-Core J4005, Mini ITX, DDR4 SODIMM, VGA, HDMI
£77.76
VAT included
- ASRock Super Alloy
- Intel® Dual-Core Processor J4005 (up to 2.7 GHz)
- Supports DDR4 2133/2400 SO-DIMM
- 1 PCIe 2.0 x16 (x2 mode)
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 2 SATA3
- 5 USB 3.1 Gen1 (2 Front, 3 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
D-Sub, HDMI, Parallel, COM
Packed with a COM port + Printer port + D-Sub + HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback.
HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.
Supports DDR4 SO-DIMMs
Supports the latest DDR4 SO-DIMM memory modules and most extreme memory performance!
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- ASRock Super Alloy
- Intel® Dual-Core Processor J4005 (up to 2.7 GHz)
- Supports DDR4 2133/2400 SO-DIMM
- 1 PCIe 2.0 x16 (x2 mode)
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 2 SATA3
- 5 USB 3.1 Gen1 (2 Front, 3 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
D-Sub, HDMI, Parallel, COM
Packed with a COM port + Printer port + D-Sub + HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback.
HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.
Supports DDR4 SO-DIMMs
Supports the latest DDR4 SO-DIMM memory modules and most extreme memory performance!
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
J4005B-ITX
Data sheet
- PCI Express
- 1 x PCIe 2.0 x16
- Wireless
- -
- RAM Speeds
- 2400/2133 MHz
- Accessories
- "Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables"
Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables - USB Ports Supported
- "5 x USB 3.1 Gen1 ports (3 at back, 2 at mid-board), 5 x USB 2.0 ports (1 at back, 4 at mid-board)"
5 x USB 3.1 Gen1 ports (3 at back, 2 at mid-board)5 x USB 2.0 ports (1 at back, 4 at mid-board) - Storage
- 2 x SATA III
- RAID
- -
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- Embedded CPU
- CPU
- Intel Dual-Core Processor J4005 (up to 2.7 GHz)
- DDR Type
- DDR4 SO-DIMM
- RAM Technology
- DDR4 SO-DIMM (Dual Channel)
- RAM Slots
- 2 x SODIMM
- Maximum Memory
- 8GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse/Keyboard, 1 x Parallel Port, 1 x Serial Port, 1 x D-Sub Port, 1 x HDMI Port, 1 x USB 2.0 Port, 3 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port, HD Audio Jacks
1 x PS/2 Mouse/Keyboard1 x Parallel Port1 x Serial Port1 x D-Sub Port1 x HDMI Port1 x USB 2.0 Port3 x USB 3.1 Gen1 Ports1 x RJ-45 LAN PortHD Audio Jacks - Internal I/O Connectors
- 1 x COM Port, 1 x Chassis Intrusion and Speaker, 1 x CPU Fan, 1 x Chassis Fan, 1 x 24 pin ATX Power, 1 x Front Panel Audio, 2 x USB 2.0, 1 x USB 3.1
1 x COM Port1 x Chassis Intrusion and Speaker1 x CPU Fan1 x Chassis Fan1 x 24 pin ATX Power1 x Front Panel Audio2 x USB 2.01 x USB 3.1 - CPU Support
- N/A (Integrated CPU)
- Package Type
- Retail
- Package Weight
- 0.6700 kg
- Graphics Ports
- 1 x VGA, 1 x HDMI
1 x VGA1 x HDMI - Additional Features
- See Overview
- Graphics
- Integrated Intel UHD Graphics 600
Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 700MHz) - No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
