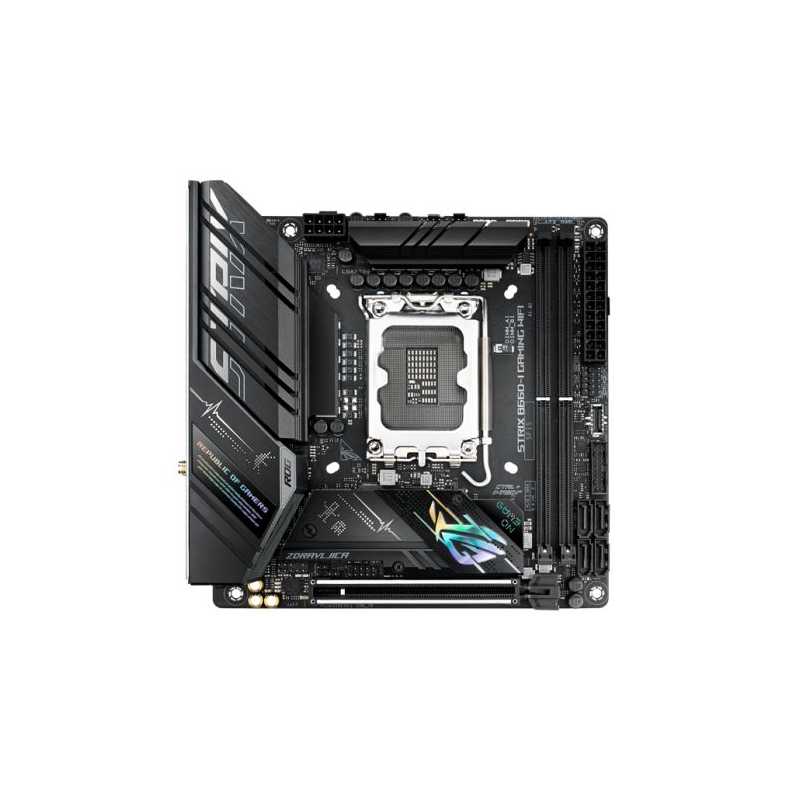

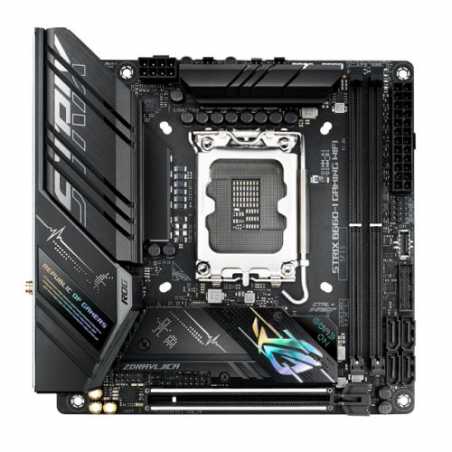

Asus ROG STRIX B660-I GAMING WIFI, Intel B660, 1700, Mini ITX, 2 DDR5, HDMI, DP, Wi-Fi, 2.5GB LAN, PCIe5, RGB, 2x M.2
£304.07
VAT included
Intel B660 LGA 1700 ITX motherboard with PCIe 5.0, 8+1 power stages, DDR5 memory support, ASUS Enhanced Memory Profile, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, two PCIe 4.0 M.2 slots, USB 3.2 Gen 2x2 Type-C, SATA and Aura Sync RGB lighting
- Intel LGA 1700 Socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron processors
- Optimal Power Solution: 8+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, one onboard M.2 heatsink, and one M.2 backplate
- High-performance Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, two M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
- Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, and Q-LED
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and an addressable Gen 2 RGB header
- Industry-leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86
All-Round Performance
ROG Strix B660-1 Gaming Win helps Diyers get the most out of their gaming builds with high-end power delivery, and intelligent controls for managing cooling, networking and audio settings.
Leading Connectivity
ROG Strix B660-1 Gaming WiFi features an innovative design that delivers diverse and wickedly fast connectivity options for supersmooth online experiences and ultrafast data transfers. And alongside those perks, ROG delivers an advanced audio solution that allows gamers to pick out the smallest cues and home in on their opponents.
Play In Style
Pair ROG Strix B660-I Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
Rog Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.
For more information please click here.
90MB19C0-M1EAY0
Data sheet
- .
- 1 x Clear CMOS1 x Front Panel Audio1 x S/PDIF Out1 x Speaker1 x 10-1 pin System Panel
- Wireless
- Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency bandBluetooth v5.2
- RAM Speeds
- Up to 6133(OC)
- Accessories
- 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable1 x Panel cable1 x ASUS Wi-Fi moving antennas 2 x M.2 SSD screw packages1 x M.2 bracket1 x ROG key chain1 x ROG STRIX stickers1 x ROG STRIX thank you card1 x User manual
- USB Ports Supported
- 1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen1 Type-C (at back)5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)5 x USB 2.0 (3 at back, 2 at mid-board)1 x USB 3.2 Gen2 Type-C front panel connector
- Storage
- 4 x SATA III1 x M.2 (2260/2280) - PCIe1 x M.2 (2242/2260/2280) - PCIe
- RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- Intel 1700
- Chipset
- Intel B660
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- LAN
- 2.5GB LAN
- Audio
- ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 Type-C4 x USB 3.2 Gen1 (3 Type-A & 1 Type-C)3 x USB 2.01 x HDMI1 x DisplayPort1 x Wi-Fi Module1 x Intel I225-V 2.5Gb Ethernet5 x Audio jacks
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin Chassis Fan1 x 4-pin AIO Pump1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M) 4 x SATA 6Gb/s1 x USB 3.2 Gen2 USB Type-C1 x USB 3.2 Gen11 x USB 2.01 x Addressable Gen21 x AURA RGB
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.4000 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Out of the box RGB lighting
- PCI/PCI Express
- 1 x PCIe 5.0 x16
- Wi-Fi
- Yes (Wi-Fi)
