LOGITECH 952-000019 Cat5e Kit for Logitech Tap, Video Conferencing Accessory Kit

CAT5E KIT FOR LOGITECH TAP
Data and power over category cable

SIMPLIFIED CABLING FOR LOGITECH TAP
Now, you can locate Logitech Tap nearly anywhere in your meeting rooms. With the Cat5e Kit, connect Tap up to 40 meters away from the meeting room computer with data and power carried over category cable.

DATA MEETS POWER
When connected to the meeting room computer with a USB cable, Tap needs its own power supply. But since the Cat5e Kit delivers both power and data over category cable, there's no need to find an outlet at the table.

FLEXIBLE CABLING
Use the 10 meters of cable included with the Cat5e Kit or supply your own cabling for runs of up to 40 meters. Cat5e allows for precise cable lengths, reducing clutter beneath tables.

COMPATIBLE WITH ALL TAP MOUNTS
Designed specifically for Logitech Tap, the Cat5e Kit works with the Table, Riser, and Wall Mounts, keeping cables out of the way and hidden from view.

DIMENSIONS
Logitech Tap Receiver
Height: 29 mm
Width: 83 mm
Depth: 85 mm

Dongle Transceiver (Dongle)
Height: 22.5 mm
Width: 31.0 mm
Depth: 83.7 mm
Cable length: 500 mm

Power Supply
Height: 91.0 mm
Width: 60.2 mm
Depth: 36.3 mm 1Without Plug

Included Cabling (Two Cables)
Length: 2.97 m
Length: 7.0 m

SYSTEM REQUIREMENTS
Meeting Room Equipment
Touch Controller: Logitech Tap
Meeting Room Computer: Windows 10 64-bit or ChromeOS 80 or higher with USB 2.0 port or higher

Customer-Supplied Cabling
Cable Type: Cat5e or higher (up to 40 meters in total length)

TECHNICAL SPECIFICATIONS
General
Cable Type: Cat5e SF/UTP AWG26 or higher
Power supply: 100-240V auto-switching power supply with international adaptor set

Compatibility
Touch Controller: Logitech Tap
Meeting Room Computer: USB 2.0 port or higher

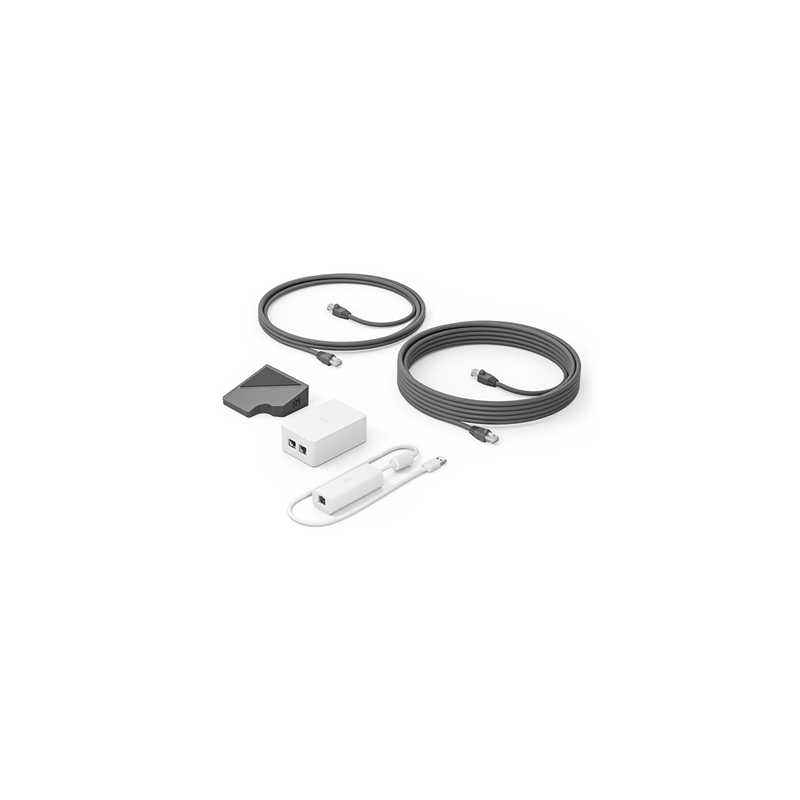

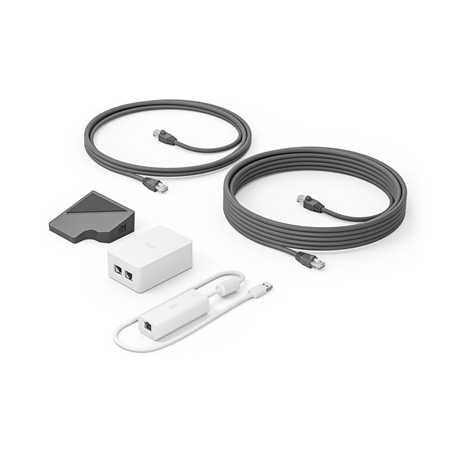

PACKAGE CONTENTS
Logitech Tap Receiver
Dongle Transceiver
100-240v Power Supply with International
International Adaptor Set
2.97 m Cat5e Cable
7.0 m Cat5e Cable
Documentation

WARRANTY INFORMATION
2-Year Limited Hardware Warranty

PART NUMBER
952-000019
