- Out of stock

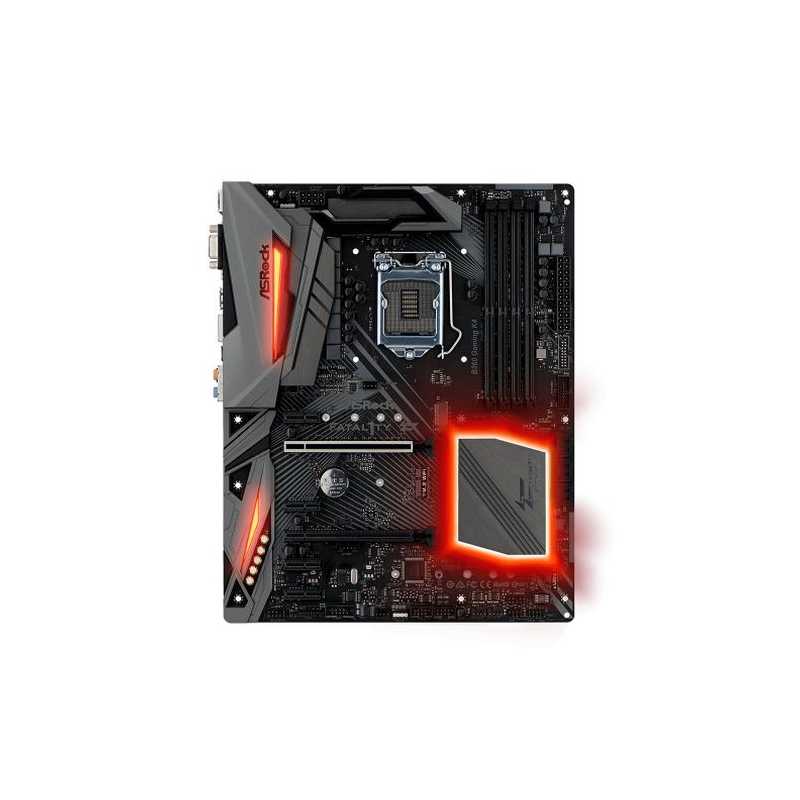

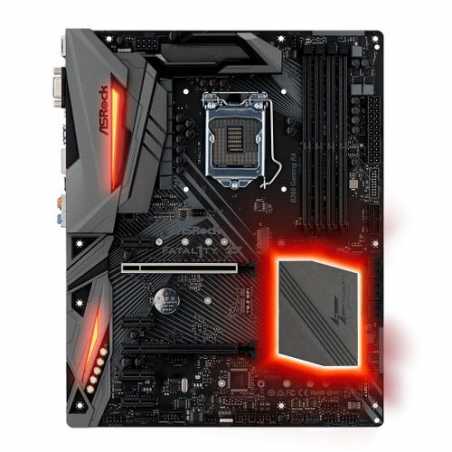

Asrock B360 GAMING K4, Intel B360, 1151, ATX, DDR4, VGA, HDMI, DP, XFire, M.2
£115.70
VAT included
- Supports 8th Generation Intel® Core™ Processors (Socket 1151)
- 10 Power Phase Design
- Supports DDR4 2666
- 2 PCIe 3.0 x16, 4 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- AMD Quad CrossFireX™
- Graphics Output Options: HDMI, D-Sub, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome RGB
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
Rule Your Own Lighting Way - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Creative Sound Blaster Cinema5
A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. 7.1 CH HD audio with Realtek ALC1220 audio codec that brings a truly immersive audio experience up to 120dB SNR.
Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
Super Alloy Motherboard
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Gaming Armor
Built to Kill
Power
Hi-Density Power Connector
Memory
15μ Gold Contact
VGA Card
15μ Gold Contact
Internet
Intel® LAN
Cooling
XXL Aluminum Alloy Heatsink
Audio
Creative Sound Blaster™ Cinema 5
F-Stream
Modify Your Weapon
Key Master
Consists of two major features, Sniper Key and Macro Key. It enhances your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay.
F-Stream
F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities.
Fatal1ty Mouse Port
After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz.
M.2 (Key E) for Wi-Fi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Gold Audio Jacks
Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!
Fatal1ty Mouse Port
After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz.
Key Master
Consists of two major features, Sniper Key and Macro Key. It enhances your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: 1151 - Coffee Lake
- Chipset: Intel B360
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 2666 / 2400 / 2133 MHz
- Maximum Memory: 64GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x VGA
1 x HDMI
1 x DisplayPort 1.2 - Multi-GPU Support: Supports AMD Quad CrossFireX
- PCI Express: 2 x PCIe 3.0 x16
4 x PCIe 3.0 x1 - PCI: -
- Storage: 6 x SATA III
1 x M.2 Socket (2230/2242/2260/2280/22110) - SATA & PCIe
1 x M.2 (2230/2242/2260/2280) - SATA & PCIe - RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- USB Ports Supported: "2 x USB 3.1 Gen2 Type-A & C (at back)
4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.2
1 x Optical SPDIF Out
2 x USB 2.0
1 x USB 3.1 Gen2 Type-A
1 x USB 3.1 Gen2 Type-C
2 x USB 3.1 Gen1
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x COM Port
1 x TPM
1 x Chassis Intrusion
1 x Power LED and Speaker
2 x RGB LED
1 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio - .: 1 x Thunderbolt AIC
2 x USB 2.0
1 x USB 3.1 Gen1 - CPU Support: See manufacturers link (next to product images)
- Accessories: Quick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 1.8600 kg
- Warranty: 3 Year Replacement Warranty
B360 GAMING K4
Data sheet
- .
- 1 x Thunderbolt AIC, 2 x USB 2.0, 1 x USB 3.1 Gen1
- PCI Express
- 2 x PCIe 3.0 x16, 4 x PCIe 3.0 x1
- Wireless
- -
- RAM Speeds
- 2666 / 2400 / 2133 MHz
- Accessories
- Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 3 x Screws for M.2 Sockets
- USB Ports Supported
- "2 x USB 3.1 Gen2 Type-A & C (at back), 4 x USB 3.1 Gen1 (2 at back, 2 at mid-board), 6 x USB 2.0 (2 at back, 4 at mid-board)"
- Storage
- 6 x SATA III, 1 x M.2 Socket (2230/2242/2260/2280/22110) - SATA & PCIe, 1 x M.2 (2230/2242/2260/2280) - SATA & PCIe
- RAID
- -
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- 1151 - Coffee Lake
- Chipset
- Intel B360
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports AMD Quad CrossFireX
- PCI
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna, 1 x PS/2 Mouse/Keyboard, 1 x D-Sub, 1 x HDMI, 1 x DisplayPort 1.2, 1 x Optical SPDIF Out, 2 x USB 2.0, 1 x USB 3.1 Gen2 Type-A, 1 x USB 3.1 Gen2 Type-C, 2 x USB 3.1 Gen1, 1 x RJ-45 LAN, HD Audio Jacks
- Internal I/O Connectors
- 1 x COM Port, 1 x TPM, 1 x Chassis Intrusion, 1 x Power LED and Speaker, 2 x RGB LED, 1 x Addressable LED, 1 x CPU Fan, 1 x CPU/Water Pump Fan, 3 x Chassis/Water Pump Fan, 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x Front Audio
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 1.8600 kg
- Graphics Ports
- 1 x VGA, 1 x HDMI, 1 x DisplayPort 1.2
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
Specific References
- EAN13
- 4717677335132
