- Out of stock

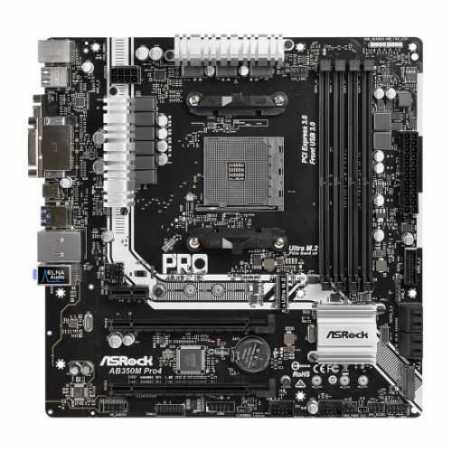

Asrock AB350M PRO4, AMD B350, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, RAID
£70.06
VAT included
- ASRock Super Alloy
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
- Supports DDR4 2667
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
- Graphics Output:HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
- 7 USB 3.0 (1 Type-C, 2 Front, 4 Rear)
- Realtek Gigabit LAN
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. And the other one supports SATA3 6Gb/s M.2 modules.
USB Type-C
A latest reversible USB Type-C design that fits the connector either way.
Super Alloy Motherboard
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
__________________________________________________
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: AM4
- Chipset: AMD B350
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Ryzen CPUs: 2667/2400/2133 MHz
7th Gen A-Series APUs: 2133 MHz - Maximum Memory: 64GB
- Graphics: Integrated AMD Radeon R7/R5 Series Graphics in A-series APU
- Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI - Multi-GPU Support: -
- PCI Express: AMD Ryzen series CPUs:
1 x PCIe 3.0 x16 (PCIE2: x16 mode)
1 x PCIe 2.0 x16 (PCIE3: x4 mode)
AMD 7th A-Series APUs:
1 x PCIe 3.0 x16 (PCIE2: x8 mode)
1 x PCIe 2.0 x16 (PCIE3: x4 mode)
1 x PCIe 2.0 x1 - PCI: -
- Storage: 4 x SATA III
1 x M.2 Socket (2242/2260/2280) - PCIe
1 x M.2 Socket (2230/2242/2260/2280) - SATA - RAID: "RAID 0, 1, 10 "
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- USB Ports Supported: "1 x USB 3.0 Type-C port (at back)
6 x USB 3.0 ports (4 at back, 2 at mid-board)
6 x USB 2.0 ports (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0 Ports
1 x USB 3.0 Type-C Port
4 x USB 3.0 Ports
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 2 x USB 2.0 Connectors
1 x USB 3.0 Connectors
1 x COM Port
1 x TPM
1 x Power LED and Speaker
1 x RGB LED
1 x AMD Fan LED
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio - .: 1 x AMD LED Fan USB Header
- CPU Support: Click here for CPU support
- Accessories: "Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
2 x Screws for M.2 Sockets" - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.1700 kg
- Warranty: 3 Year Replacement Warranty
AB350M PRO4
Data sheet
- .
- 1 x AMD LED Fan USB Header
- PCI Express
- AMD Ryzen series CPUs
- Wireless
- -
- RAM Speeds
- Ryzen CPUs
- Accessories
- "Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 2 x Screws for M.2 Sockets"
- USB Ports Supported
- "1 x USB 3.0 Type-C port (at back), 6 x USB 3.0 ports (4 at back, 2 at mid-board), 6 x USB 2.0 ports (2 at back, 4 at mid-board)"
- Storage
- 4 x SATA III, 1 x M.2 Socket (2242/2260/2280) - PCIe, 1 x M.2 Socket (2230/2242/2260/2280) - SATA,
- RAID
- "RAID 0, 1, 10 "
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AM4
- Chipset
- AMD B350
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse, 1 x PS/2 Keyboard , 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 2 x USB 2.0 Ports, 1 x USB 3.0 Type-C Port , 4 x USB 3.0 Ports, 1 x RJ-45 LAN, HD Audio Jacks
- Internal I/O Connectors
- 2 x USB 2.0 Connectors, 1 x USB 3.0 Connectors, 1 x COM Port, 1 x TPM, 1 x Power LED and Speaker, 1 x RGB LED, 1 x AMD Fan LED, 1 x CPU Fan, 2 x Chassis Fan, 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x Front Audio
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 1.1700 kg
- Graphics Ports
- 1 x VGA, 1 x DVI-D, 1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated AMD Radeon R7/R5 Series Graphics in A-series APU
Specific References
- EAN13
- 4717677333176
