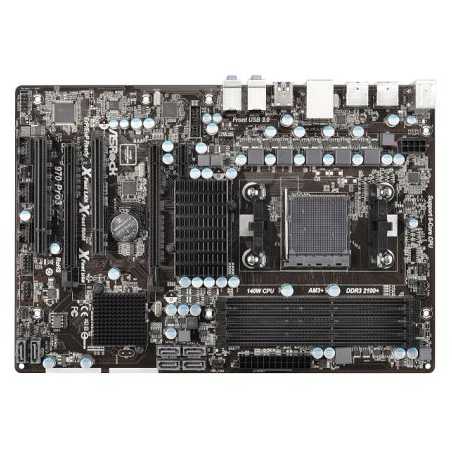

Asrock 970 PRO3 R2.0, AMD 970, AM3, ATX, 4 DDR3, CrossFire, RAID, 140W CPU Support
£69.96
VAT included
970 Pro3 R2.0
Everything you’ll need on an AM3+ motherboard with a breathtaking price
• 100% All Solid Capacitor design
• Supports AM3+ Processor, 8-Core CPU
• Supports Dual Channel DDR3 2100+ (OC)
• 2 x PCIe 2.0 x16 Slots, Support AMD Quad CrossFireX™ and CrossFireX™
• 4 x USB 3.0 (2 Front, 2 Rear), 6 x SATA3
• Supports XFast 555, X-Boost, Fast Boot, Restart to UEFI, Dehumidifier, OMG, Internet Flash
• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
• Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
X-Boost
ASRock’s X-Boost Technology is a smart auto-overclocking function and is brilliantly designed to unlock the hidden cores of your CPUs. Simply press "X" when turning on the PC, X-Boost will automatically overclock the relative components to get up to 116% performance boost! With the smart X-Boost, overclocking CPU or unlock CPU cores can become a near one-button process.
* The functionality of “Unlock CPU Cores” feature might vary by different processors.
4 USB 3.0 (2 Front, 2 Back)
Rich storage options! This motherboard offers 4 USB 3.0 (2 from onboard header, 2 from rear I/O) to facilitate computing environment.
XFast 555 Technology : XFast RAM / XFast LAN / XFast USB
5X Faster for Photoshop Execution
XFast RAM will create a virtual disk from the system memory to boost the performance. For Photoshop, It can even perform 5X faster than before.
Lower Latency In Game
XFast LAN can lower latency in the game after setting online game priority higher.
Time latency in World of Warcraft: Cataclysm
* Lower is better
USB Performance
Boosts up your USB speed
*The performance boost percentage may vary with a different configuration.
Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds* to logon to Windows® 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.
*The boot time may vary with a different configuration.
Restart to UEFI
ASRock "Restart to UEFI" technology is designed for those requiring frequent UEFI access. It allows users to easily enter the UEFI SETUP automatically when turning on the PC next time.
AM3+ 8-Core Processor Support
This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.
C.C.R. (Combo Cooler Retention Module)
The unique combo cooler retention module greatly improves heat dissipation and is backward compatible with AMD previous AM3/AM2+ coolers.
Dehumidifier
Users may prevent motherboard damages due to dampness by enabling “Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
ASRock OMG (Online Management Guard)
Fast, Easy and Free – ASRock OMG technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users. Normally, ISPs (Internet Service Provider) will charge for internet curfew service. The service controls “all” the PCs connected at home through network remotely but all the PCs in that network will be restricted to access the internet at pre-setup times. However, ASRock OMG is a free tool for controlling internet access of each single PC. Parents can easily control internet access through BIOS setup to protect their kids from using Internet at inappropriate time, and meanwhile, enjoy their own internet space.
Internet Flash
Internet Flash searches for available UEFI firmware updates from ASRock servers. System can auto-detect the latest UEFI from our servers and flash them within UEFI setup without entering Windows® OS.
Graphical UEFI – The Revolutionary BIOS Interface
Unified Extensible Firmware Interface (UEFI) is a revolutionary BIOS utility which offers tweak-friendly options in an advanced viewing interface. Compared with traditional BIOS design, the latest UEFI utility provides lots improved functions. The major features of UEFI include:
1. Graphical Visual Experience – UEFI provides an improved visual interface with colorful icons and makes your computing environment more versatile to replace the traditional dull BIOS page.
2. Mouse Enabling – Besides keyboard control, you can freely use mouse to select your ideal settings in UEFI as well.
3. Supports 3TB bootable HDD - UEFI breaks the limitations of 2TB bootable HDD on traditional BIOS. With UEFI, you can enjoy 3TB bootable HDD size.*
*Windows® Vista™ 64bit or Windows® 7 64bit OS is required.
UEFI System Browser
UEFI system browser is a useful tool included in graphical UEFI. It can detect the devices and configurations that users are currently using in their PC. With the UEFI system browser, you can easily examine the current system configuration in UEFI setup.
Google Chrome Browser & Toolbar
Chrome is a fast, simple, and secure web browser, built for the modern web. Google Toolbar is designed to help you find what you're looking for quickly and discover new things along the way. Now ASRock has both Chrome and Google Toolbar bundled with our motherboards so users may enjoy better internet surfing experiences.
Free Bundle - Cyberlink MediaEspresso 6.5 Trial
CyberLink MediaEspresso 6.5 trial now supports hardware transcoding and is optimized to accelerate conversion of all your favorite media files for your favorite portable players. Now you can easily display your favorite movies, songs and photos on iPhone, iPad, PSP, Xbox, Youtube, Facebook etc. Compile, convert and enjoy images and songs as much as you want and enhance your videos to new levels with TrueTheater Technology. Try it today!
Limitations:
30-day trial limitation
Convert videos to the H.264 format 50 times
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AM3+
- CPU: -
- Chipset: AMD 970
- #Hide#DDR Type: DDR3
- RAM Technology: DDR3 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 2100+(OC)/1866*(OC)/1800*(OC)/1600*(OC)/1333/1066/800 MHz
- Maximum Memory: 64GB
- Graphics: -
- Multi-GPU Support: Supports AMD Quad-GPU CrossFireX
- PCI Express: 2 x PCIe 2.0 x16
1 x PCIe 2.0 x1 - PCI: 2 x PCI
- Storage: 6 x SATA III
- RAID: "RAID 0, 1, 5, 10"
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- USB Ports Supported: "4 x USB 3.0 port(s) (2 at back panel, 2 at mid-board)
12 x USB 2.0 port(s) (6 at back panel, 6 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
6 x Ready-to-Use USB 2.0 Ports
2 x Ready-to-Use USB 3.0 Ports
1 x RJ-45 LAN Port with LED
HD Audio Jack - Internal I/O Connectors: 3 x USB 2.0 connectors
1 x USB 3.0 connector
6 x SATA3 6.0 Gb/s
1 x IR header
1 x CIR header
1 x COM port header
1 x HDMI_SPDIF header
1 x Power LED header
2 x CPU Fan
2 x Chassis Fan
1 x Power Fan (3-pin)
24 pin ATX power - .: 8 pin 12V power
Front panel audio - CPU Support: See manufacturers link (next to product images)
- Accessories: "Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables" - Package Type: Retail
- Package Weight: 1.2400 kg
- Warranty: 3 Year Replacement Warranty
970 PRO3 R2.0
Data sheet
- .
- 8 pin 12V power, Front panel audio
- PCI Express
- 2 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
- Wireless
- -
- RAM Speeds
- 2100+(OC)/1866*(OC)/1800*(OC)/1600*(OC)/1333/1066/800 MHz
- Accessories
- "Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables"
- USB Ports Supported
- "4 x USB 3.0 port(s) (2 at back panel, 2 at mid-board), 12 x USB 2.0 port(s) (6 at back panel, 6 at mid-board)"
- Storage
- 6 x SATA III
- RAID
- "RAID 0, 1, 5, 10"
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AM3+
- CPU
- -
- Chipset
- AMD 970
- DDR Type
- DDR3
- RAM Technology
- DDR3 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports AMD Quad-GPU CrossFireX
- PCI
- 2 x PCI
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse Port, 1 x PS/2 Keyboard Port, 6 x Ready-to-Use USB 2.0 Ports, 2 x Ready-to-Use USB 3.0 Ports, 1 x RJ-45 LAN Port with LED, HD Audio Jack
- Internal I/O Connectors
- 3 x USB 2.0 connectors, 1 x USB 3.0 connector, 6 x SATA3 6.0 Gb/s, 1 x IR header, 1 x CIR header, 1 x COM port header, 1 x HDMI_SPDIF header, 1 x Power LED header, 2 x CPU Fan, 2 x Chassis Fan, 1 x Power Fan (3-pin), 24 pin ATX power
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 1.2400 kg
- Graphics
- -
Specific References
- EAN13
- 4717677320190
