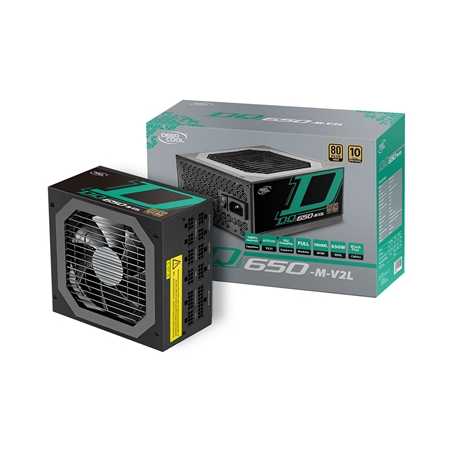

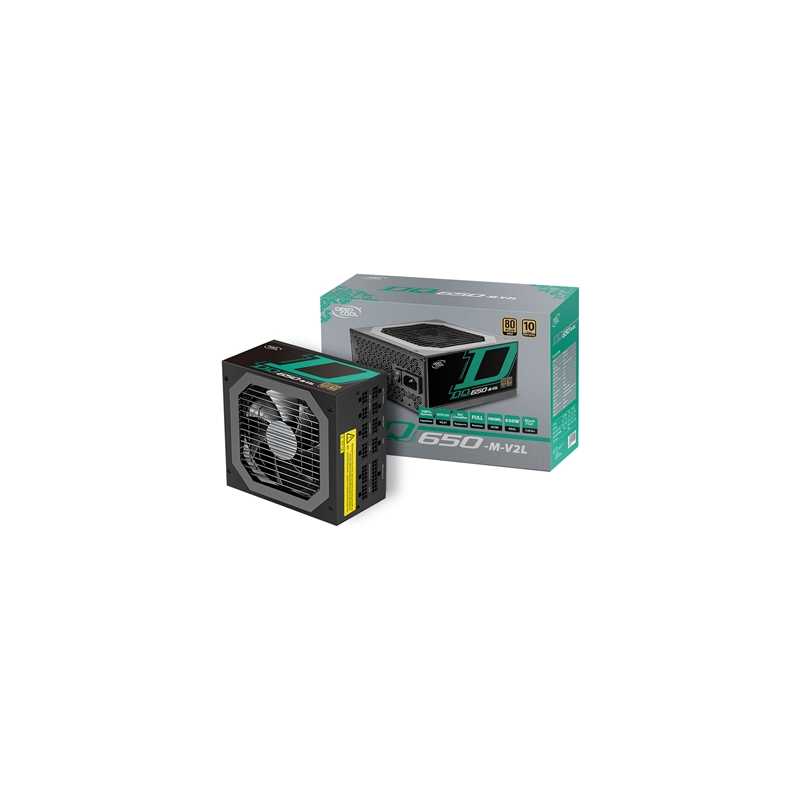

DeepCool DQ650-M-V2L 650W 120mm Silent High Performance Fan 80 PLUS Gold Fully Modular PSU

DQ650-M-V2L
Reliable 80 PLUS Efficiency
The DQ650-M-V2L fully modular 650W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ650-M-V2L offers better reliability for your PC system.

80 PLUS Gold Certified
Get all the power you need with a maximum 90.4% efficiency to reduce excess energy consumption and waste heat.

Excellent Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ650-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

80 PLUS Gold
80 PLUS Gold certified - Up to 87~90% efficient (20~100% Loading)

Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise

Details
- High grade Japanese 105°C PFC Boost Capacitor
- 100% Japanese Capacitors
- Excellent 1 and 2-stage EMI filter circuit
- Highly efficient Active PFC
- Excellent manufacturing process
- Highly reliable supervisor IC for protections

Fully Modular
Easy cable management with flat cables keep your system clean and tidy.

Model
DQ650-M-V2L

Type
ATX 12V V2.31

Wattage
650W

Input Voltage
100-240V

Input Current
10.0A

Input Frequency Range
47~63Hz

Fan Size
120mm Silent Fan

PFC
Active

Power Good Signal
100-500ms

Hold Up Time
>16ms (80% Loading)

Efficiency
>90% Under Typical Load (50% Loading)

Standby Efficiency
ErP Lot 3 2014

Certification
80 PLUS Gold

Protection
OVP / UVP / OCP / SCP / OPP / OTP

Operation Temperature
0~40°C

Regulatory
CE / CB / CCC / EAC / FCC / KCC / RCM / RoHs

MTBF
100,000 Hours

Connections
1 x Motherboard 24-pin
1 x EPS 12V Connector 8 (4+4) Pin
2 x PCI-E (6+2 pin)
8 x SATA
4 x Peripheral (Molex 4-pin)

Product Dimension ( W x L x H )
150 x 160 x 86mm

Master Carton Quantity
6
