- Out of stock

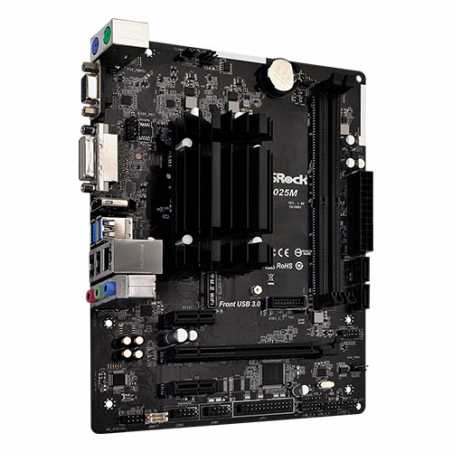

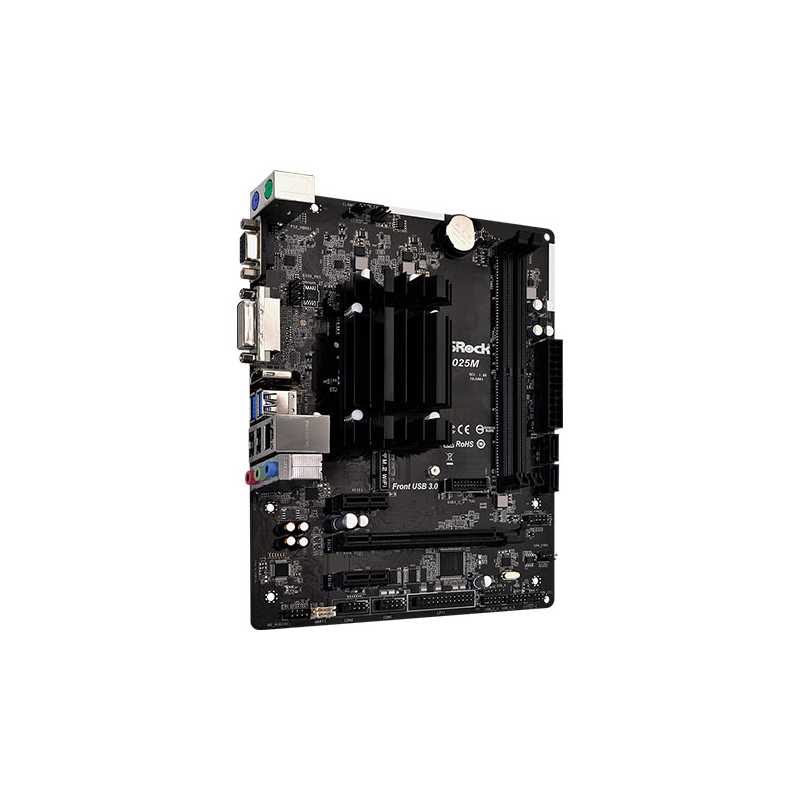

Asrock J4025M, Integrated Intel Dual-Core J4025, Micro ATX, 2 DDR4, VGA, DVI, HDMI
£46.88
VAT included
J4025M
- Intel Dual-Core Processor J4025 (Up to 2.9 GHz)
- Supports DDR4 2133/2400 Long DIMM
- 1 PCIe 2.0 x16 (x1 mode), 2 PCIe 2.0 x1
- 1 M.2 Key E for WiFi (Intel CNVi Only)
- Graphics Output Options: D-Sub, HDMI, DVD-D
- Supports 4K x 2K @60Hz
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 2 SATA3
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.
Super Alloy Motherboard
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Supports DDR4 LONG-DIMMs
Supports the latest DDR4 LONG-DIMM memory modules and most extreme memory performance!
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
J4025M
Data sheet
- Wireless
- -
- RAM Speeds
- 2400 / 2133 MHz
- Accessories
- 1 x Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket
- Storage
- 2 x SATA III
- RAID
- -
- Warranty
- 2 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Embedded CPU
- CPU
- Intel Dual-Core Processor J4025 (Up to 2.9 GHz)
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 8GB
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse1 x PS/2 Keyboard1 x D-Sub1 x DVI-D1 x HDMI2 x USB 2.02 x USB 3.2 Gen11 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x Print Port2 x COM Port1 x Chassis Intrusion and Speaker1 x CPU Fan1 x Chassis Fan1 x 24 pin ATX1 x Front Panel Audio3 x USB 2.0)1 x USB 3.2 Gen1
- CPU Support
- N/A (Integrated CPU)
- Package Type
- Retail
- Graphics Ports
- 1 x VGA1 x DVI-D1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated Intel UHD Graphics 60012 EUs inside (Up to 700MHz)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- 1 x PCIe 2.0 x162 x PCIe 2.0 x1 Slots
