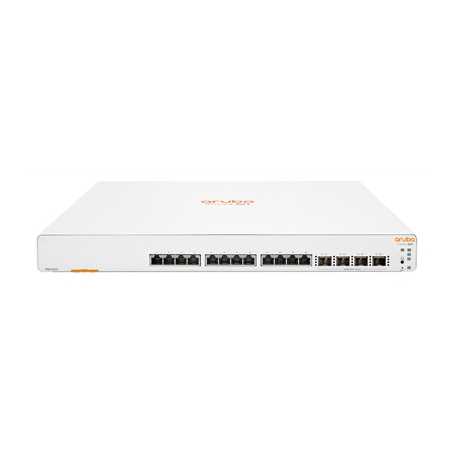

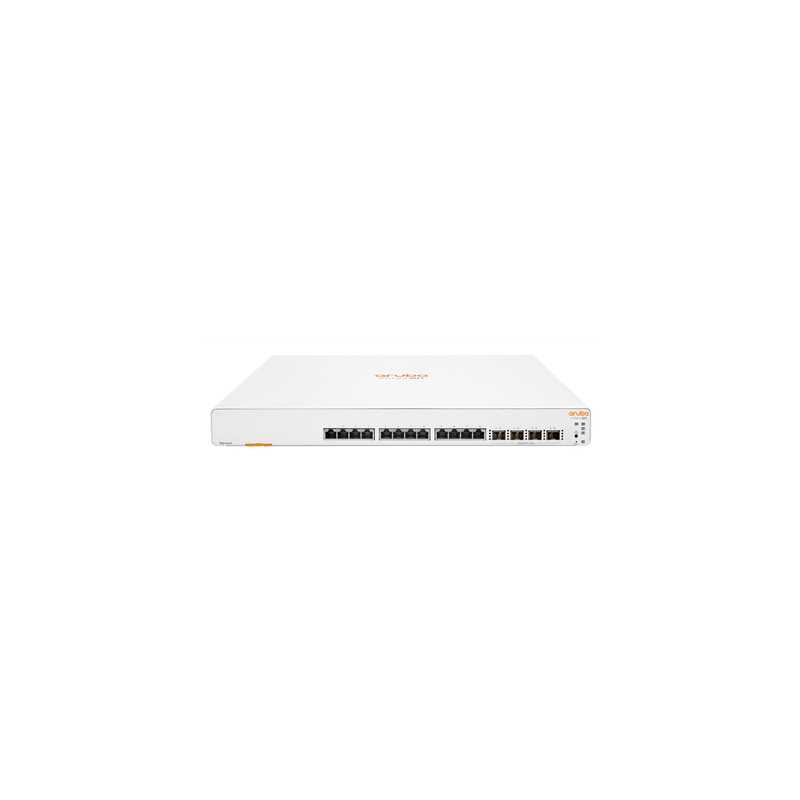

Aruba Instant On 1960 16-Port Gigabit Switch, Twelve (12) 10GBase-T and Four (4) SFP+ ports, Layer 2+ Smart Managed, Cloud Manag

The 1960 16-port JL805A Switch is a high performance, smart-managed stackable switch designed for small and growing businesses, fast and easy set-up and security you can trust. You can stack up to 4 x 1960 switches at 1G and 10G speeds, enabling management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking. Using either local web GUI, Instant On mobile app or cloud-based web portal, you can quickly set up, monitor and manage the switches from anywhere at anytime.

High-performance 10 gig connectivity
For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and eliminate traffic bottlenecks.

Stack up to four (4) 1960 switches
Simplify network management by stacking up to (four) 4 1960 (access and aggregation) switches and managing them through a single management interface. You get up to 288 ports, including 16 10G uplink ports, for high-density environments, as well as flexibility for future network expansion.

Easy to use cloud-managed stacking
In a few simple steps, set up and configure a stack with the Aruba Instant On mobile app. You can manage the stack and ports remotely, and you'll minimize network downtime - if the master switch within 1960 Series stack fails, another switch takes over, keeping your network up and running.

Future-proof your network
Advanced switching capabilities like Layer 3 IPv4, IPV6 static routing, ACLs, and Spanning Tree Protocols support apps and devices you have today, as well as those you may add in the future. And True Stacking makes it easy to configure, manage, and troubleshoot physical switches as one single entity, helping scale the network as your business grows.

Robust security
Protect your business data and keep unauthorized users off the network with advanced security features like IEEE 802.1X, MAC authentication, VLANs, Network Access Control (ACL), Port Security, DHCP snooping, ARP attack prevention and RADIUS authentication.

Gigabit and Uplink ports
12x 100/1000/10GBASE-T ports
4x SFP+ 10GbE ports

Dimensions
350.5(d) x 442.5(w) x 43.95(h) mm

Weight
9.6 lb (4.3 kg)

Throughput capacity (Mpps)
238 Mpps

Reliability MTBF (years)
88.8

Warranty
Limited Lifetime Warranty
