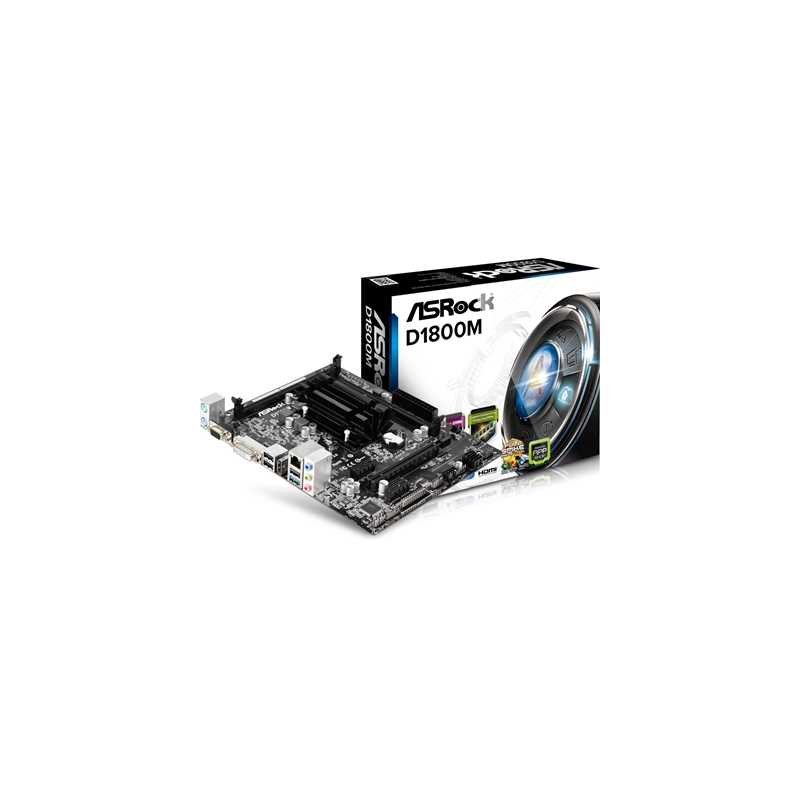

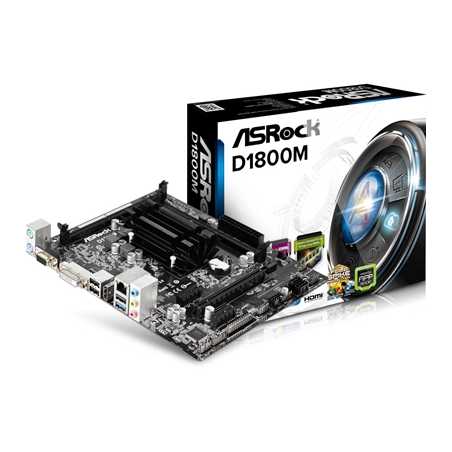

ASRock D1800M Intel Embedded Celeron J1800 Micro ATX VGA/DVI-D/HDMI DDR3 USB 3.1 Motherboard

Intel® Dual-Core Processor J1800 + Micro ATX Motherboard
All Solid Capacitor design
Supports DDR3/DDR3L 1333 Long DIMM Slots
1 PCIe 2.0 x16, 2 PCIe 2.0 x1
Graphics Output Options : D-Sub, DVI-D, HDMI
Built-in Intel® 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0
1 Print Port Header, 1 COM Port Header
1 USB 3.1 Gen1, 6 USB 2.0 (3 Front, 3 Rear), 2 SATA2
Realtek Gigabit LAN
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Supports ASRock Full Spike Protection, A-Tuning, XFast LAN, XFast RAM, USB Key

Specifications

Unique Feature
ASRock Full Spike Protection
ASRock Cloud

CPU
Intel® Dual-Core Processor J1800 (2.41 GHz)

Memory
Dual Channel DDR3/DDR3L Memory Technology
2 x DDR3/DDR3L DIMM Slots
Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
Max. capacity of system memory: 16GB

BIOS
64Mb AMI UEFI Legal BIOS with GUI support
Supports Plug and Play
ACPI 5.0 Compliant wake up events
Supports jumperfree
SMBIOS 2.7 Support

Graphics
Intel® 7th generation (Gen 7) graphics
DirectX 11.0, Pixel Shader 5.0
Three graphics output options: D-Sub, DVI-D and HDMI
Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Supports Surge Protection (ASRock Full Spike Protection)

LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111GR
Supports Wake-On-WAN
Supports Wake-On-LAN
Supports Lightning/ESD Protection (ASRock Full Spike Protection)
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Slots
1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)
2 x PCI Express 2.0 x1 Slots

Storage
2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector
1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion Header
1 x CPU Fan Connector (3-pin)
1 x Chassis Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
- ASRock A-Tuning
- ASRock APP Shop
- ASRock USB Key
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS

Support CD
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)

Accessories
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables

Hardware Monitoring
CPU, Chassis temperature sensing
CPU, Chassis Fan Tachometer
CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
CPU, Chassis Fan multi-speed control
CASE OPEN detection
Supports CPU Fanless
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
Micro ATX Form Factor
All Solid Capacitor design
High Density Glass Fabric PCB

OS
Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
