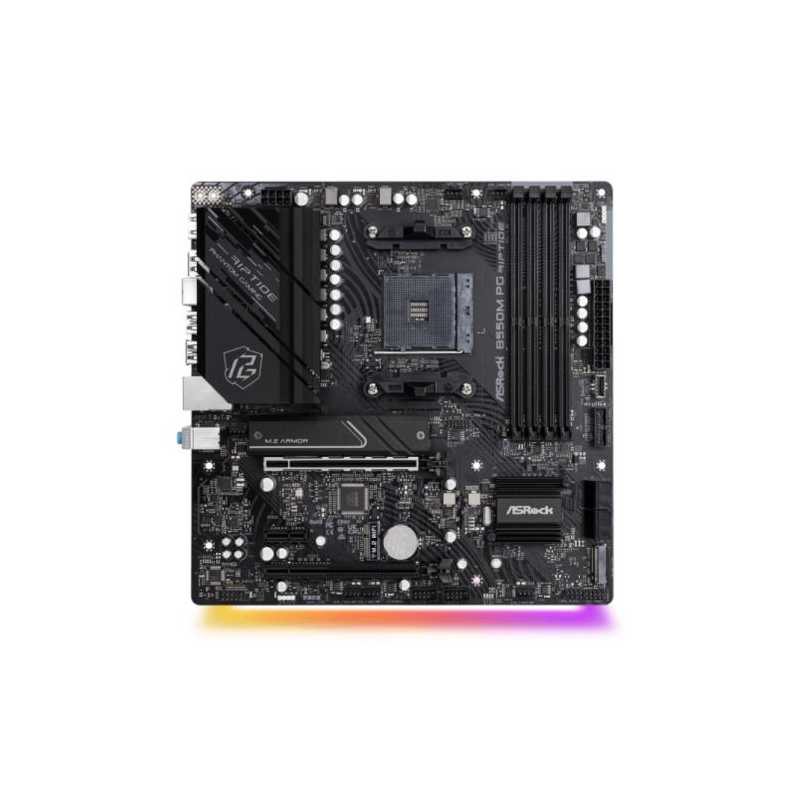

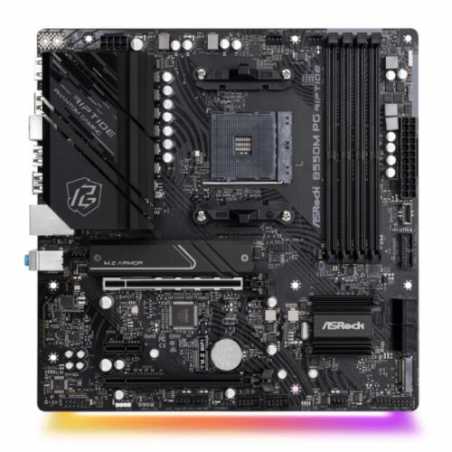

Asrock B550M PHANTOM GAMING RIPTIDE, AMD B550, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB LAN, RGB, 2x M.2
search
  • Asrock B550M PHANTOM GAMING RIPTIDE, AMD B550, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB LAN, RGB, 2x M.2
  • Asrock B550M PHANTOM GAMING RIPTIDE, AMD B550, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB LAN, RGB, 2x M.2

Asrock B550M PHANTOM GAMING RIPTIDE, AMD B550, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB LAN, RGB, 2x M.2

£95.36
VAT included
Stock status: High
98 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%


Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.


  • Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors
  • 8 Phase, Digi Power, Dr. MOS
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16 Slot, 1 PCIe 3.0 x16 Slots,
  • 1 PCIe 3.0 x1 Slot, 1 M.2 Key E for Wi-Fi
  • Graphics Outputs: 1 HDMI, 1 DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec),
  • Nahimic Audio
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
  • 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 Rear USB 3.2 Gen2 (Type-A + Type-C)
  • 1 Front USB 3.2 Gen1 Type-C
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front)
  • 6 USB 2.0 (2 Rear, 4 Front)
  • Phantom Gaming 2.5G LAN
ASROCK
B550M PG RIPTIDE
98 Items

Data sheet

.
1 x Front Panel Type-C USB 3.2 Gen1 Header
Wireless
-
RAM Speeds
up to 4600+(OC)
Accessories
Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets1 x Standoff for M.2 Socket
USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)1 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x Front Panel Type-C USB 3.2 Gen1 Header
Storage
4 x SATA III1 x M.2 (2260/2280) - PCIe1 x M.2 (2260/2280) - SATA & PCIe
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
Warranty
2 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM4
Chipset
AMD B550
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
Supports AMD Quad CrossFireX
LAN
2.5GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Back Panel I/O Ports
2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.41 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C4 x USB 3.2 Gen12 x USB 2.01 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x SPI TPM1 x Power LED and Speaker2 x RGB LED2 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan4 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio2 x USB 2.01 x USB 3.2 Gen1
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort 1.4
Additional Features
See Overview
Graphics
Integrated Graphics Processor*Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
RGB Lighting
Yes (RGB)
PCI/PCI Express
1 x PCIe 4.0 x161 x PCIe 3.0 x161 x PCIe 3.0 x1

Specific References

EAN13
4710483936364
