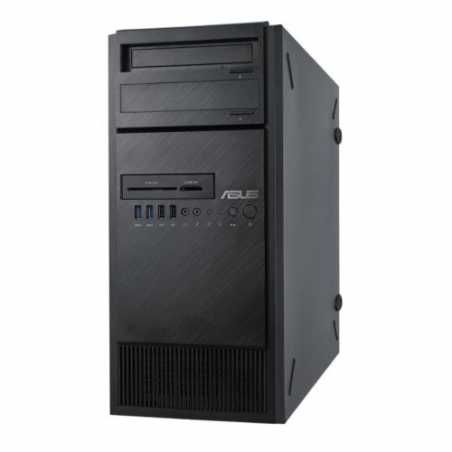

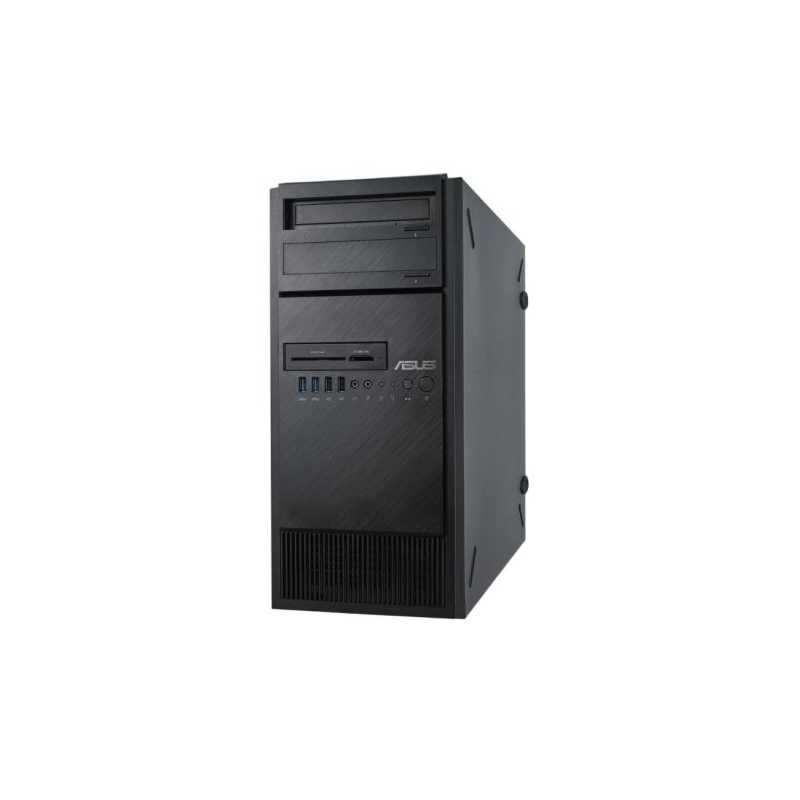

Asus (TS100-E10-PI4) Intel Xeon E Workload-Optimised Server, Intel C242, S 1151, 4x DDR4, 3x 3.25", 1x 2.25", 6 x SATA, 2x M.
£736.85
VAT included
Intel Xeon E workload-optimised server flexible storage expandability
- Powered by the Intel Xeon E platform
- 95W CPU and up to 64GB memory support (4 DIMMs)
- High scalability with two PCIe Gen3 slots and two PCI legacy slots
- Flexible storage design with internal 5.25" to 3.5"/2.5" drive cage (Optional)
- Dual Intel_ Gigabit Ethernet with teaming support
- Dual M.2 for internal and independent OS drives with RAID 0/1
- Supports the latest 10Gb/s USB 3.1 onboard for high transfer speed
- Complete server management with ASUS Control Centre
- Easily serviceable design
- Design for SMB, Web/Print/File/Mail Server, entry storage applications
- Onboard audio for workstation applications
Delivers a workload optimised solution
TS100-E10-PI4 is an entry-level tower server supporting the latest Intel Xeon E, Core i3 and Pentium LGA 1151 socket processors. It also features integrated memory and PCI Express controllers to enable 2-channel (4 DIMM) DDR4 memory and PCIe 3.0 x16 slots. Delivering powerful processing performance together with stable, energy-efficient operation, TS100-E10-PI4 is the ideal choice for an entry-level server for your business.
Dual M.2 for internal and independent OS drives with RAID 0/1 (by SATA mode)
TS100-E10-PI4 comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA with auto-switch signal function. In performance-maximising RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.
Maximise I/O performance and data protection
TS100-E10-PI4 supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of TS100-E10-PI4, making it a great upgrade option.
Dual Intel Gigabit Ethernet
With dual Intel Gigabit Ethernet connectors, TS100-E10-PI4 keeps your data moving swiftly and efficiently. With both LAN ports teamed you'll benefit from increased bandwidth for more speed, automated load balancing for smoother data flows, and instant failover if anything goes wrong - so access to your files is always fast, efficient and uninterrupted.
Serviceability - Quick Boot
TS100-E10-PI4 with the P11C-X/AUDIO server motherboard features quick initialisation guidance, which let users determine the system initialisation state in seconds. During system boot, an onscreen progress bar displays the current boot status and a two-digit POST code provides easy troubleshooting if a problem is encountered.
ASUS Control Centre
ASUS Control Centre (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
90SF00E1-M00410
Data sheet
- Storage
- 6 x SATA3 6Gb/s ports 2 x M.2
- Memory
- Intel Xeon processor E-2100 family(95W)Intel Xeon processor E-2200 family(95W)The 8th/9th generation Intel Core i3/Pentium/Celeron ProcessorClick here for CPU support lis
- Warranty
- 3 Year Advanced Replacement
- Form Factor
- Tower
- Chipset
- Intel C242
- Maximum Memory
- 64 GB
- CPU Support
- 1 x Socket LGA1151
- Additional Features
- See Overview
- Power Supply
- 300W Bronze
- Networking
- 1 x Intel I210AT1 x i219-LM
- Graphics
- Aspeed AST2510 with 64MB VRAM
- Expansion Slots
- 1 x PCIe x16 (Gen3 x16 Link)1 x PCIe x8 (Gen3 x4 Link)2 x PCI
- Environment
- Operation temperature: 10°C ~ 35°CNon operation temperature: -40°C ~ 70°CNon operation humidity: 20% ~ 90% ( Non condensing )
- Dimensions/Weight
- 423 x 190 x 435mm
- No. LAN Ports
- 2
- Max LAN Speed
- GB LAN
- CPU Socket
- Intel 1151 - Cofee Lake
- HDD Bays
- 3 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays*1 x Internal 2.5" drive bay1 x Optional internal 5.25” to 3.5”/2.5” drive cage
- Front I/O Ports
- 2 x USB 3.0 ports2 x USB 2.0 ports1 x Headphone port1 x Microphone port
- Rear I/O Ports
- 2 x USB 3.1 ports2 x USB 3.0 ports2 x USB 2.0 ports1 x VGA Ports2 x LAN Ports3 x Audio Jacks1 x PS/2 Keyboard/ Mouse Port
- Switch/LED
- Front Switch/LED:1 x Power switch1 x Power LED1 x Reset switch1 x HDD Access LED
- OS Support
- Windows Server 2016RedHat Enterprise Linux, SuSE Linux Enterprise ServerCentOS, VmwareCitrix XenServer
- Management Solution
- ASUS Control Center Enterprise
- Auxiliary Storage FDD/CD/DVD
- 2 x 5.25" media bays
- No. of CPU Sockets
- Dual Socket
- Memory Slots
- 4 Memory Slots
