ASRock AX200 WiFi 6 Wireless M.2 Card with External Antennas, Wi-Fi Certified, Bluetooth 5.1, Windows 10, Linux, ChromeOS, Intel

The Intel Wi-Fi 6 AX200 (Gig+) adapter supports the new IEEE 802.11ax standard – Wi-Fi 6 technology and is Wi-Fi CERTIFIED 6.3 The product supports 2x2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering data rates of up to 2.4Gbps and increased network capacity as well as Bluetooth 5.1 support. These new features deliver a significant improvement in user experience in dense deployments, supporting fast uploads and downloads, lower latency and longer battery life compared to solutions supporting 802.11ac. Combined with Intel Core processors and exceptional Intel wireless innovations, the Intel Wi-Fi 6 AX200 module can provide Gigabit wireless speed4 and dramatically improve your connected experience at home, work, or on the go.

Increased Capacity
By implementing the new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT) and spatial reuse, Intel Wi-Fi 6 AX200 module enables smooth streaming of high-resolution videos, fewer dropped connections, and faster connections farther away from the router and in dense environments.

Faster Speed
When using Wi-Fi 6 technology with 1024QAM and 160MHz channels, Intel Wi-Fi 6 AX200 module can deliver nearly 3x higher peak data rates1 (up to 2.4Gbps) and up to 4x capacity improvement in dense or congested environments comparing to 802.11ac

Improved Security
Intel Wi-Fi 6 AX200 module supports the new WPA3 security features, enabling next-generation authentication and military-grade encryption.
- 64-bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 256-bit AES-GCMP
- 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0 -MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’)
- Security Methods WPA2 Personal and Enterprise; WPA3

Bluetooth 5.1
Bluetooth 5.1 provides 4x5 range over Bluetooth 4.2 using the same Tx power, enabling coverage throughout the home. Bluetooth 5.1 also doubles data rates speed for faster transmissions thereby reducing the overall power consumption.5 Additionally, Bluetooth 5.1 adds new enhanced data broadcasting, enabling seamless location-based services and simpler pairing for Bluetooth devices.

Form Factor
M.2 2230 modules enable system configuration and platform usage flexibility with the use of a standard Key A or Key E socket for attaching the module.

OS Support
Microsoft Windows 10, Linux, Chrome OS

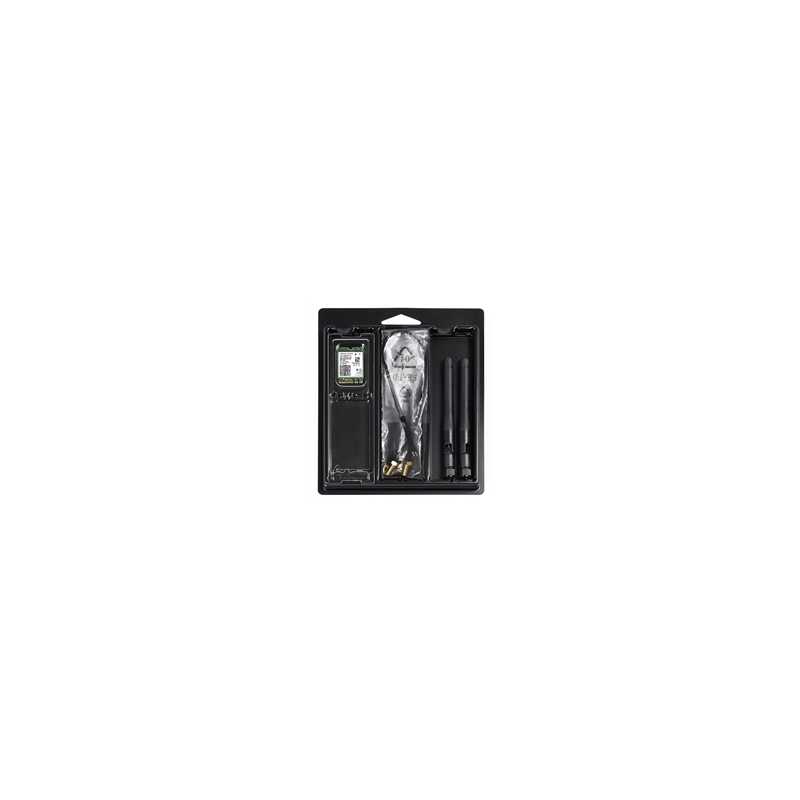

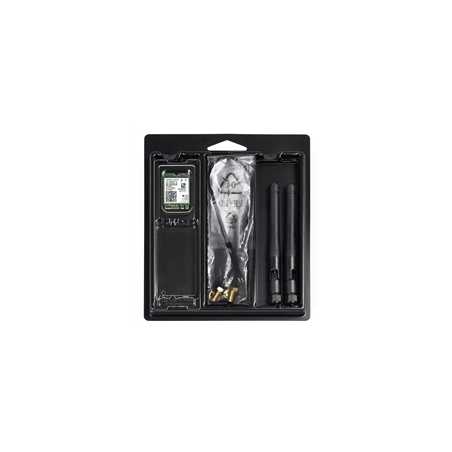

Package Contents
Wireless Card
2x Antennas
2x Antenna Cables
