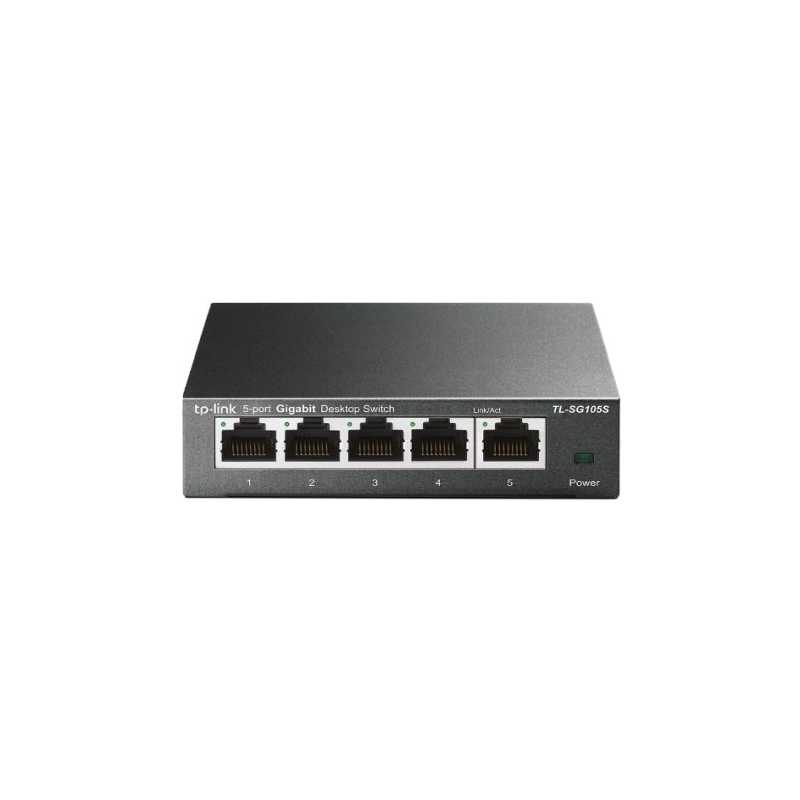

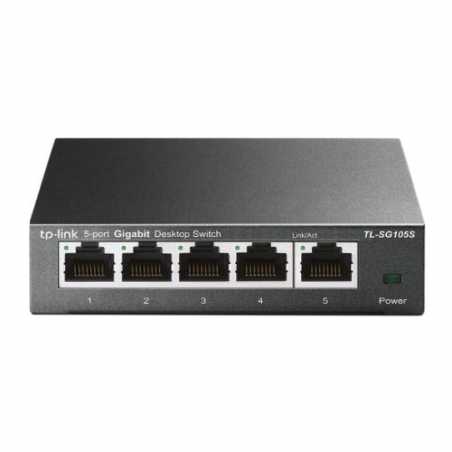

TP-LINK (TL-SG105S) 5-Port Gigabit Unmanaged Desktop Switch, Steel Case
search
  • TP-LINK (TL-SG105S) 5-Port Gigabit Unmanaged Desktop Switch, Steel Case
  • TP-LINK (TL-SG105S) 5-Port Gigabit Unmanaged Desktop Switch, Steel Case

TP-LINK (TL-SG105S) 5-Port Gigabit Unmanaged Desktop Switch, Steel Case

£20.31
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch


  • 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS and IGMP Snooping function
  • Plug and play, no configuration needed





What This Product Does

The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.





Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.





Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.





Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.





Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

TL-SG105S

Data sheet

Warranty
Limited Lifetime
Package Type
Retail
Dimensions
99.8 x 98 x 25 mm
Power Supply
Output: 5VDC / 0.6A
Interface(s)
5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Package Contents
5-Port 10/100/1000Mbps Desktop SwitchPower AdapterInstallation GuideRubber Feet
LED
System PowerLink/Act indicators per port built into each RJ-45 port
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Rackmountable
No
Number of Ports
5
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10% ~ 90%, non-condensingStorage Humidity: 5%~95%, non-condensing
Advanced Functions
Green Technology802.3x Flow Control802.1p/DSCP QoSIGMP SnoopingFanless
Quality of Service
802.1p/DSCP QoS
Transfer Method
Store and Forward
Mac Address Table
2K
Packet Forwarding Rate
7.4Mpps
Jumbo Frame
16KB
POE
No
RJ45 Data Transfer Rate
10/100/1000 Mbps
Managed
No

Specific References

EAN13
6935364095024
