LOGIX RGB Gaming Build -Intel i7, 12 Core 20 Thread, 3.60GHz (5.00GHz Boost), 32GB Kingston DDR5 RAM, 1TB Kingston SSD, Gigabyte

The LOGIX philosophy is simple - we design, build, test and pack every LOGIX computer to the standards we would expect if we were buying one ourselves. And we have EXTREMELY high standards.

LOGIX RGB Gaming Build -Intel i7, 12 Core 20 Thread, 3.60GHz (5.00GHz Boost), 32GB Kingston DDR5 RAM, 1TB Kingston SSD, Gigabyte RTX 4060 8GB Graphics 240mm RGB Liquid Cooler, WiFi 6, Windows 11 Home PC

Specification:

Operating System: Windows 11 Home
Processor: Intel i7 12th Gen
Memory (RAM): Kingston Technology 32GB DDR5 (upgradeable to 192GB DDR4 – additional memory slot available)
Storage: Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSD
Graphics: Gigabyte RTX 4060 Windforce 8GB
Motherboard: Gigabyte B760M Ultra Durable Motherboard
Case: Antec RGB Gaming Tower
Connections:
Case –
2 x USB-A 3.0
1 x USB-C Gen2
3.5mm HD microphone & audio
Back:
3 x DisplayPort
3 x HDMI
4 x USB-A 3.2 Gen 1
4 x USB-A 2.0
1 x USB-C Gen2
1 x RJ-45 Ethernet
3 x 3.5mm Audio
Networking:
Wired: Realtek 2.5Gbps GbE LAN
Wireless: WiFi 6e + Bluetooth 5.3
Warranty: 3 years - parts and collection included (UK mainland only)

Processor
Intel 12th Gen Core i7-12700KF 12 Core Desktop Processor 20 Threads, 3.6GHz up to 5.0GHz Turbo, Alder Lake Socket LGA1700, 25MB Cache

Processor Cores
12

Processor Threads
20

Core Clock Speed
3.60GHz

Core Boost Speed
5.00GHz

CPU Cooler
ANTEC Vortex 240 ARGB AiO Liquid CPU Cooler, Universal Socket, 240mm Radiator, PWM 2000RPM Fusion ARGB Cooling Fans, Addressable RGB LED Lighting with Suspended Spiral Pump Head Design

Memory
Kingston FURY Beast KF552C40BBK2 32GB System Memory DDR5, 5200MHz, 2 x 16GB, CL40-40-40

Memory Configuration
2 x 16GB
4 Lanes (2 occupied)

SSD Drive
Kingston NV2 (SNV2S/1000G) 1TB, NVMe SSD, M.2 Interface, PCIe Gen4, 2280

Format
NVMe

Max Read/Write Speeds
Up to 3500MB/s
Up to 2100MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
Gigabyte NVIDIA GeForce RTX 4060 WINDFORCE OC 8G Graphics Card, 8GB GDDR6, 3072 CUDA Cores, 2475 MHz Core Clock, Dual Fan
Core Clock
2475 MHz (Reference card: 2460 MHz)
CUDA Cores
3072
Memory Clock
17 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320

Graphics Card I/O
2 x DisplayPort 1.4a
2 x HDMI 2.1

Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software

Card Reader
N/A

Networking
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Intel Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Power Supply
CRONUS 500ATV FX PRO 500W PSU, 140mm Silent Cooling Fan, 80 PLUS Bronze, Non Modular, Flat Black Cables, Supreme Performance
1 x 20+4 Pin Main
1 x 4+4 Pin 12V
6 x SATA
2 x 4-Pin Molex
2 x 6+2 Pin PCI-e

Motherboard
Gigabyte B760M AORUS ELITE AX Intel 1700 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Sockets, 2x USB-C Port, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Support for AMD CrossFireX technology

Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Rear I/O
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Chassis

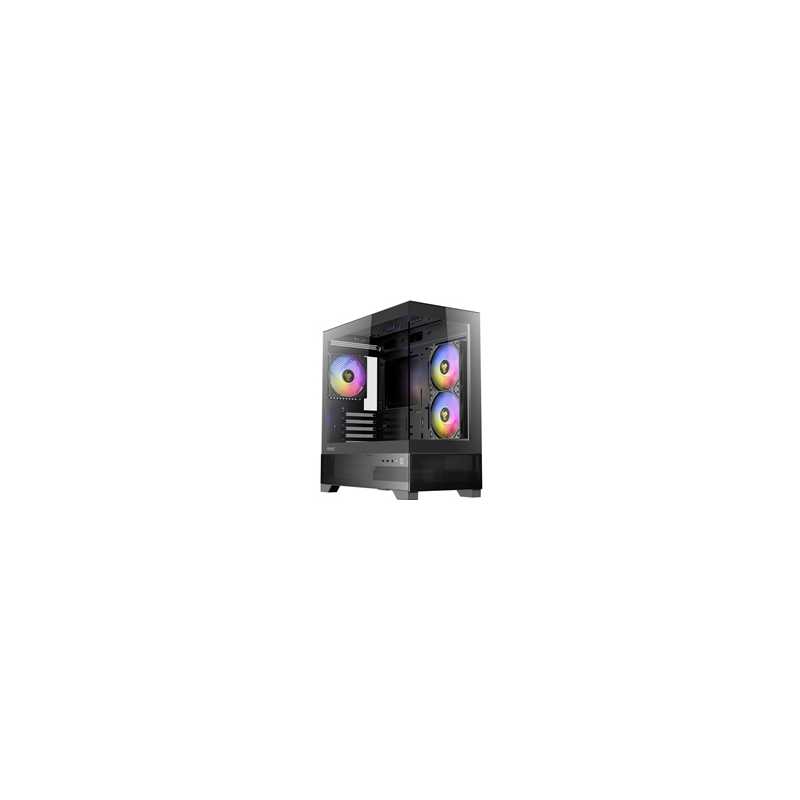

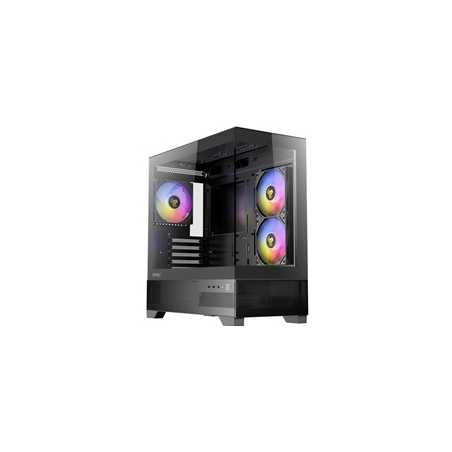

ANTEC CX500M Micro Tower Gaming Case, Black, 2x USB 3.0 / 1 x USB Type-C, Tempered Glass Side Panel

Drive Bays
3.5" / 2.5": 2 / 1
2.5": 1

IO Ports
Power, LED On/Off
USB3.0 x 2
Type-C 3.2 Gen 2
1x Headphone/Mic Combo Jack

Cooling
2 x 120mm fixed mode RGB reverse fans on right side + 1 x 120mm fixed mode RGB fan in rear

Dimensions
436 x 210 x 446mm (DWH)

Package Weight
10 kg

Warranty
3 Years collect and return (UK mainland only)
