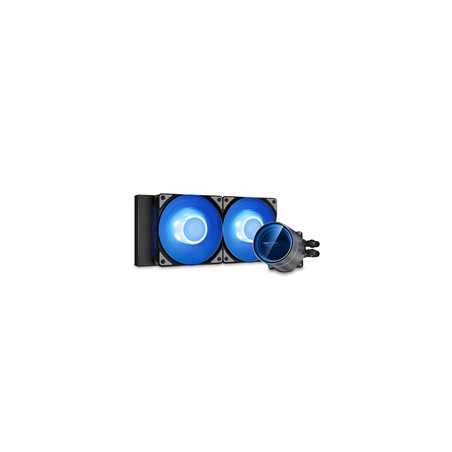

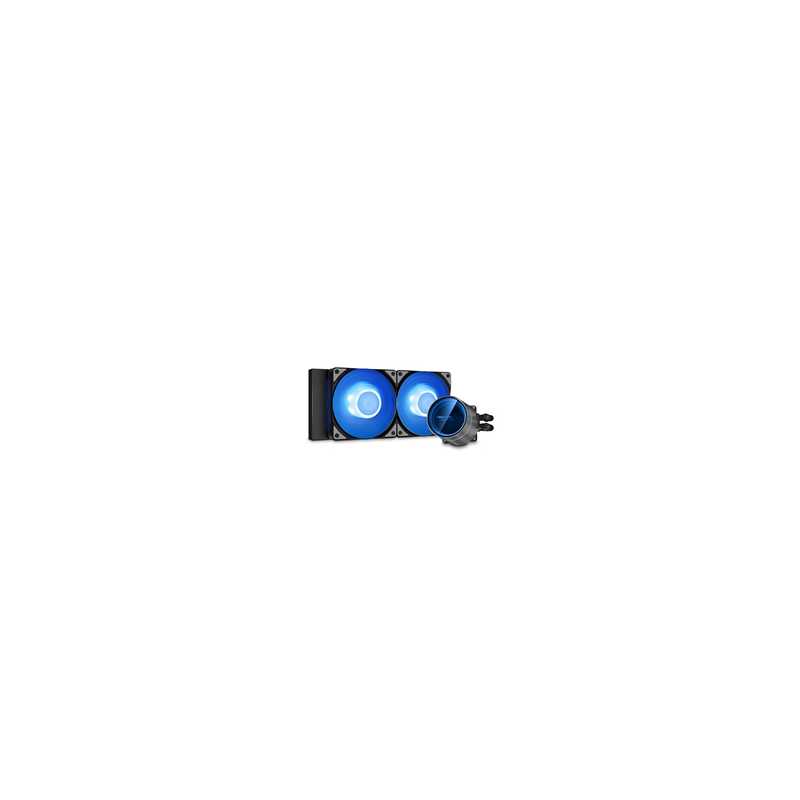

DeepCool CASTLE 240EX A-RGB AiO Liquid CPU Cooler, Universal Socket, 240mm Radiator, PWM 1800RPM Cooling Fans, Addressable RGB L

CASTLE 240EX A-RGB
Show Your True Colours
The DeepCool CASTLE 240EX A-RGB AIO liquid CPU cooler delivers fantastic RGB lighting with two DeepCool CF120 A-RGB PWM fans and our iconic infinity mirror in a 240mm radiator.

BETTER BY DESIGN
The iconic DeepCool Castle EX infinity mirror pump design with a new twist. See the new DeepCool logo on an enlarged mirror chip for a new instant classic.

SHINE ON
Two DeepCool CF120 series PWM fans output brilliant color with 12 RGB LEDs per fan.
*Sync lighting with 5V A-RGB motherboard compatibility or the included controller.

EFFICIENT COOLING
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.

POWERFUL AND QUIET
A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.

MORE SURFACE AREA
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.

PROTECT WHAT’S YOURS
After 3 years of R&D, DeepCool launched a new standard for liquid cooling systems—Anti-Leak Technology.This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage.

CUSTOMIZE YOUR LOOK
Easily change orientation by twisting off the pump face to adjust the logo.

Application For
Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155/1366
AMD: TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Radiator Dimensions
282 x 120 x 27 mm

Radiator Material
Aluminum

Tube length
380 mm

Pump Dimensions
86 x 75 x 71 mm

Pump Speed
2550 RPM±10%

Pump Noise
17.8 dB(A)

Pump Connector
3-pin

Pump Rated Voltage
12 VDC

Pump Rated Current
0.2 A

Pump Power Consumption
2.4 W

Fan Dimensions
120 x 120 x 25 mm

Fan Speed
500~1800 RPM±10%

Fan Airflow
69.34 CFM

Fan Air Pressure
2.42 mmAq

Fan Noise
=30 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Hydro Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.17 A

Fan Power Consumption
2.04 W

LED Type
Addressable RGB LED

LED Connector
3-pin (+5V-D-G)

LED Rated Voltage
5 VDC

LED Power Consumption
2.25 W (PUMP) / 4.4 W (FAN x 2)

Weight
Net: 1.380 kg
