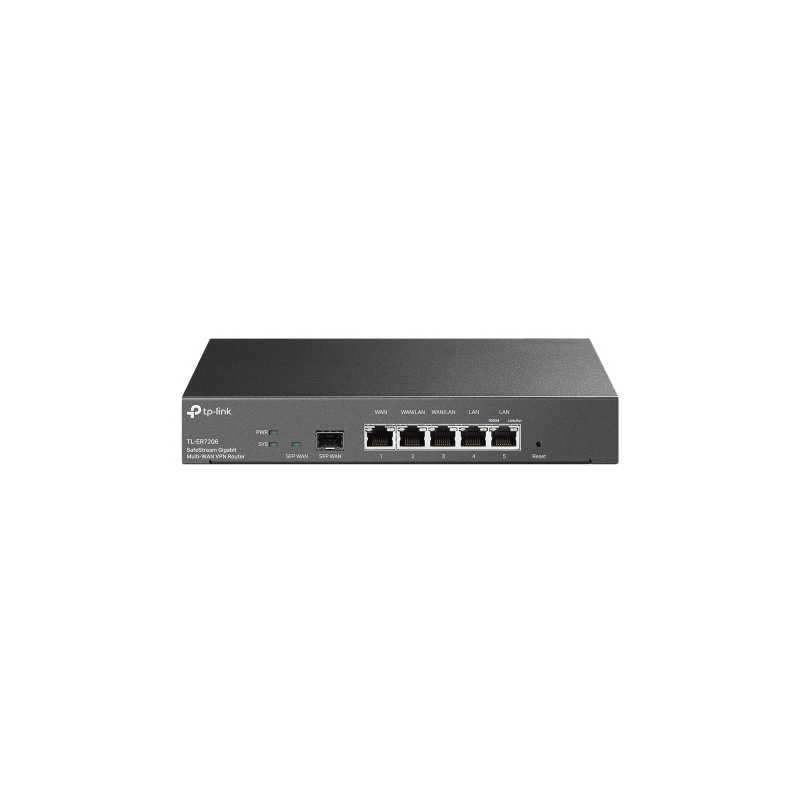

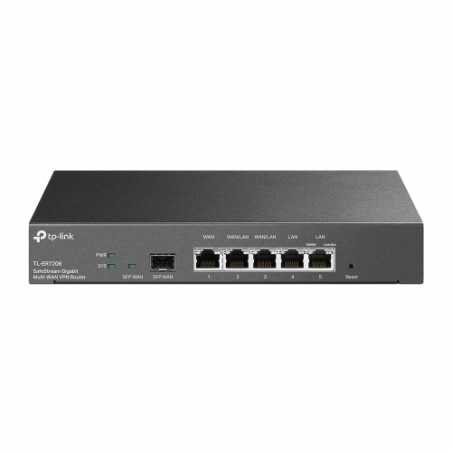

TP-Link Omada TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router
£138.84
VAT included
Delivered within 1-2 days.
TP-Link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router
Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Highly Secure VPN
TL-ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100 x LAN-to-LAN IPSec, 50 x OpenVPN, 50 x L2TP, and 50 x PPTP VPN connections. One-click auto IPSec VPN greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management
Cloud access and Omada app for ultra convenience and easy management.
Gigabit Ports
1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
Up to 4 WAN Ports
1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
Highly Secure VPN
Supports up to 100 x LAN-to-LAN IPsec, 50 x OpenVPN, 50 x L2TP, and 50 x PPTP VPN connections.
Abundant Security Features
Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface
1 Fixed Gigabit SFP WAN Port
1 Fixed Gigabit RJ45 WAN Port
2 Fixed Gigabit RJ45 LAN Ports
2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button
Reset Button
Power Supply
100–240 V~50/60 Hz
Flash
SPI 4MB + NAND 128MB
DRAM
512MB
LED
PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H )
226 mm x 131 mm x 35 mm
PERFORMANCE
Concurrent Session
150,000
IPsec VPN Throughput
291.6 Mbps
BASIC FUNCTIONS
WAN Connection Type
Static/Dynamic IP
PPPoE
PPTP
L2TP
MAC Clone
Modify WAN/LAN MAC Address
DHCP
DHCP Server
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
IPv6
Developing
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing
Policy Routing
Bandwidth Control
IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection
NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security
SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management
Session Limit
IP-based Session Limit
VPN
IPsec VPN
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IKEv1/v2
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN
PPTP VPN Server
10 PPTP VPN Clients
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
10 L2TP VPN Clients
50 Tunnels
L2TP over IPSec
OpenVPN
OpenVPN Server
10 OpenVPN Clients
50 OpenVPN Tunnels
SECURITY
Filtering
WEB Group Filtering
URL Filtering
Web Security
ARP Inspection
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Access Control
Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication
No Authentication
Simple Password
Hotspot(Local User / Voucher / SMS / Radius)
External Radius Sever
External Portal Sever
Facebook
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Syslog Support
Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)
OTHERS
CertificationCE, FCC, RoHS
Package Contents
TL-ER7206
Power Cord
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment
Operating Temperature: 0–40 (32–104 )
Storage Temperature: -40–70 (-40–158 )
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Highly Secure VPN
TL-ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100 x LAN-to-LAN IPSec, 50 x OpenVPN, 50 x L2TP, and 50 x PPTP VPN connections. One-click auto IPSec VPN greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management
Cloud access and Omada app for ultra convenience and easy management.
Gigabit Ports
1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
Up to 4 WAN Ports
1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
Highly Secure VPN
Supports up to 100 x LAN-to-LAN IPsec, 50 x OpenVPN, 50 x L2TP, and 50 x PPTP VPN connections.
Abundant Security Features
Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface
1 Fixed Gigabit SFP WAN Port
1 Fixed Gigabit RJ45 WAN Port
2 Fixed Gigabit RJ45 LAN Ports
2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button
Reset Button
Power Supply
100–240 V~50/60 Hz
Flash
SPI 4MB + NAND 128MB
DRAM
512MB
LED
PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H )
226 mm x 131 mm x 35 mm
PERFORMANCE
Concurrent Session
150,000
IPsec VPN Throughput
291.6 Mbps
BASIC FUNCTIONS
WAN Connection Type
Static/Dynamic IP
PPPoE
PPTP
L2TP
MAC Clone
Modify WAN/LAN MAC Address
DHCP
DHCP Server
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
IPv6
Developing
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing
Policy Routing
Bandwidth Control
IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection
NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security
SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management
Session Limit
IP-based Session Limit
VPN
IPsec VPN
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IKEv1/v2
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN
PPTP VPN Server
10 PPTP VPN Clients
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
10 L2TP VPN Clients
50 Tunnels
L2TP over IPSec
OpenVPN
OpenVPN Server
10 OpenVPN Clients
50 OpenVPN Tunnels
SECURITY
Filtering
WEB Group Filtering
URL Filtering
Web Security
ARP Inspection
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Access Control
Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication
No Authentication
Simple Password
Hotspot(Local User / Voucher / SMS / Radius)
External Radius Sever
External Portal Sever
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Syslog Support
Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)
OTHERS
CertificationCE, FCC, RoHS
Package Contents
TL-ER7206
Power Cord
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment
Operating Temperature: 0–40 (32–104 )
Storage Temperature: -40–70 (-40–158 )
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
ER7206
1 Item
Data sheet
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Package Weight
- 0.0000 kg
- Type
- Router
- Speed
- Gigabit
- Power Supply
- 100-240 V~50/60 Hz
- Interface(s)
- 1 x Fixed Gigabit SFP WAN Port1 x Fixed Gigabit RJ45 WAN Port2 x Fixed Gigabit RJ45 LAN Ports2 x Changeable Gigabit RJ45 WAN/LAN Ports
- Package Contents
- TL-ER7206Power CordQuick Installation Guide
- Dimensions (W x D x H)
- 226 x 131 x 35 mm
- Button(s)
- Reset Button
- Connectivity
- Wired
- Max Wireless Transfer Rate
- None
- Max Wired Transfer Rate
- 10/100/1000 Mbps
- Management
- Integrated into Omada SDN:Zero-Touch Provisioning (ZTP)Centralized Cloud ManagementIntelligent MonitoringCentralized Management:Cloud accessOmada app
- Environment
- Operating Temperature: 0–40 C (32–104 F);Storage Temperature: -40–70 C (-40–158 F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
- Security
- SPI FirewallVPN PassthroughFTP/H.323/PPTP/SIP/IPsec ALGDoS Defence, Ping of DeathLocal Management
- Advanced Features
- IP/Port/Protocol/Domain Name FilteringStatic RoutingPolicy RoutingIP/Port-based Bandwidth ControlGuarantee & Limited BandwidthIntelligent Load BalanceApplication Optimized RoutingLink Backup (Timing, Failover)Online DetectionOne-to-One NATMulti-Net NATVir
- DHCP
- DHCP ServerDHCP Address ReservationMulti-IP InterfacesMulti-Net DHCP
- Dynamic DNS
- Yes - Dyndns, No-IP, Peanuthull, Comexe
- VPN Support
- IPSec/ PPTP/ L2TPVPN & OpenVPNSupports up to 100× LAN-to-LAN IPsec50x OpenVPN50x L2TP50x PPTP VPN connections
- IEEE Standards
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1qTCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
- POE
- Yes
