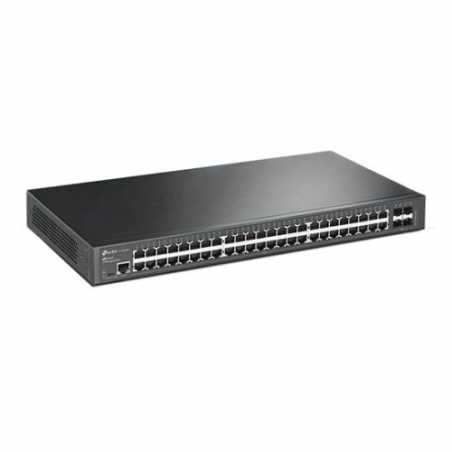

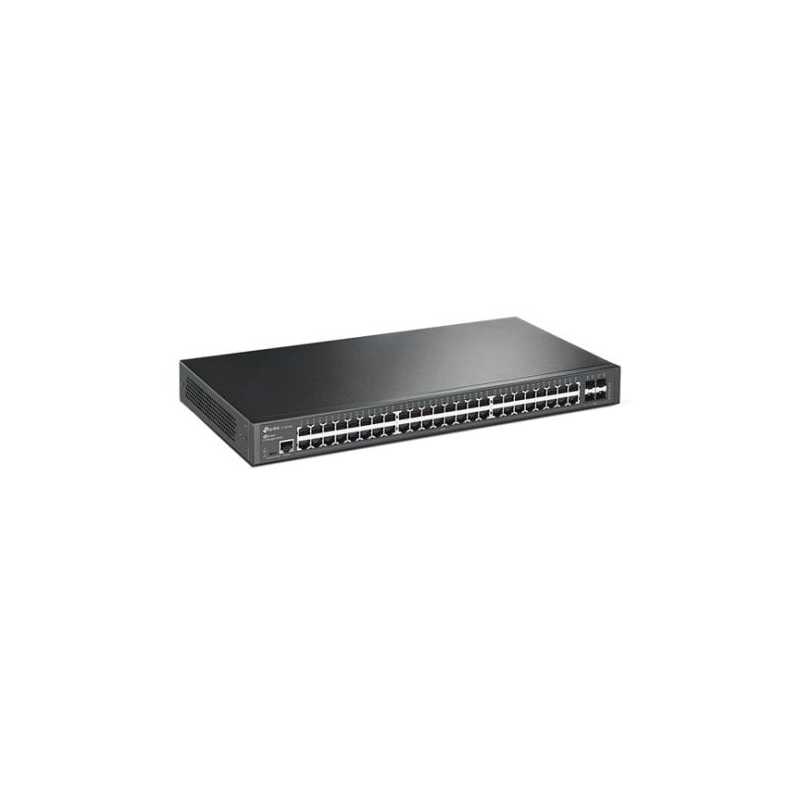

TP-Link JetStream TL-SG3452 48-Port Metal Gigabit L2 Managed Switch with 4 SFP Slots
£315.36
VAT included
Convenient Gigabit Switch for a Complete Omada Network
JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP
Reliable Gigabit Connections
48x Gigabit RJ45 Ports and
4x Gigabit SFP Ports
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Advanced L2+ Features
L2/L3/L4 QoS, ACL,
Static Routing and More
Abundant Secure Strategies
LAN Area Investment Protection
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. Device Link Detection Protocol (DLDP) offers easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP
Reliable Gigabit Connections
48x Gigabit RJ45 Ports and
4x Gigabit SFP Ports
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Advanced L2+ Features
L2/L3/L4 QoS, ACL,
Static Routing and More
Abundant Secure Strategies
LAN Area Investment Protection
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. Device Link Detection Protocol (DLDP) offers easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
TL-SG3452
Data sheet
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Package Weight
- 3.7000 kg
- Dimensions
- 440 x 220 x 44 mm
- Type
- Managed Switch
- Speed
- 10/100/1000Mbps
- Power Supply
- 100~240VAC, 50/60HzMax Power Consumption: 33.52W (220V/50Hz)
- Interface(s)
- 48 x 10/100/1000Mbps RJ45 (Auto Negotiation/MDI/MDIX)4 x 1000Mbps SFP Slots1 x RJ45 Console Port1 x Micro-USB Console Port
- Package Contents
- JetStream 48-Port Switch - T2600G-52TSPower CordInstallation GuideResource CDRackmount KitRubber Feet
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
- Rackmountable
- Yes
- Management
- Web-based GUI and CLI managementSNMP v1/v2c/v3 (public & TP-LINK private MIBs)RMON (1, 2, 3, 9 groups)sFlow*PPPoE Circuit IDDHCP RelayDHCP ServerDHCP/BOOTP Client, DHCP Snooping, DHCP Option82Dual ImageCPU MonitoringPort MirroringTime Setting: SNTPIntegra
- Number of Ports
- 48
- PoE Ports (RJ45)
- -
- Bandwidth
- 104Gbps
- Environment
- Operating Temperature: 0C~40C (32F~104F);Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
- Security
- IP-MAC-Port-VID BindingAAA802.1x and Radius AuthenticationDoS DefendDynamic ARP inspection (DAI)SSH v1/v2SSL v3/TLSv1Port SecurityBroadcast/Multicast/Unknown-unicast Storm Control
- Advanced Functions
- See Overview
- Quality of Service
- L2/L3/L4 QoS and IGMP
- Mac Address Table
- 16K
- Packet Forwarding Rate
- 77.4Mpps
- Jumbo Frame
- 9216 Bytes
- Layer Features
- L2 and L2+:Static Routing. DHCP RelayIGMP Snooping V1/V2/V3802.3ad LACP (Up to 14 agg. groups, 8 ports per group)Spanning Tree STP/RSTP/MSTPBPDU Filtering/GuardTC/Root ProtectLoopback detection802.3x Flow ControlL2PT
- VLAN
- Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)Port/ MAC/Protocol-based/Private VLANGARP/GVRP
- Access Control
- L2~L4 package filtering based on source and destination MAC address,IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN IDTime Range Based
- POE
- No
- RJ45 Data Transfer Rate
- 10/100/1000 Mbps
