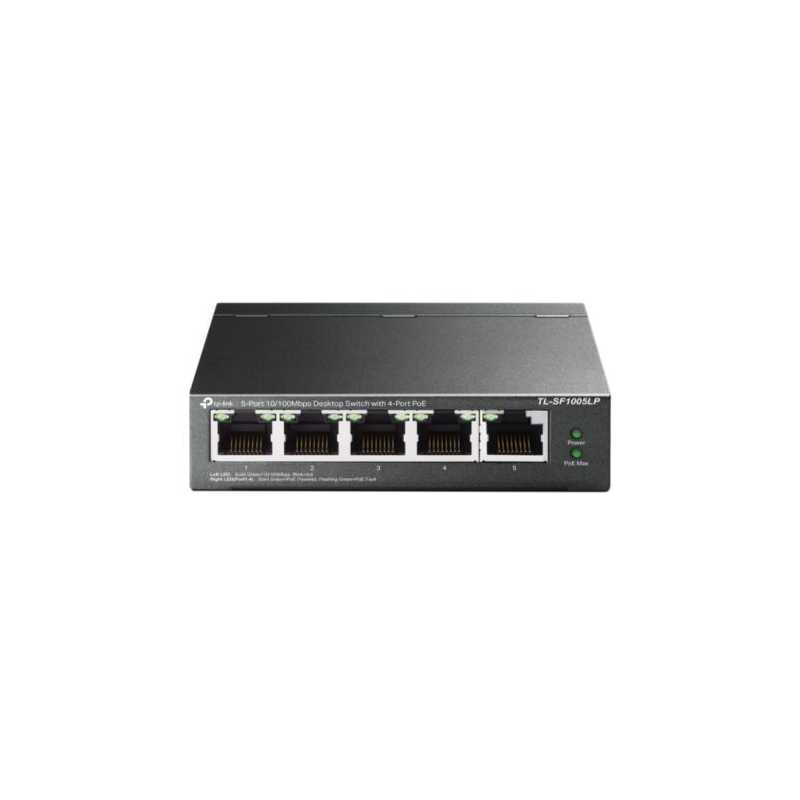

TP-Link TL-SF1005LP 5-Port 10/100Mbps Metal Desktop PoE Switch with 4-Port PoE (41W)
£28.44
VAT included
- 5x 10/100 Mbps RJ45 ports
- 4x PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250 m data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports
- Plug and play with no configuration required
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Specifications
HARDWARE FEATURES
Interface
• 5x 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate
0.744 Mpps
PoE Ports (RJ45)
• Standard: 802.3 af compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W
Mac Address Table
2K
Jumbo Frame
2 KB
Switching Capacity
1 Gbps
Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption
• 1.9 W (220 V / 50 Hz, no PD connected)
• 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation
• 6.48 BTU/h(no PD connected)
• 160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents
• TL-SF1005LP
• Power Adapter
• Installation Guide
Environment
• Operating Temperature: 0–40 C (32–104 F)
• Storage Temperature: -40–70 C (-40–158 F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
- 4x PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250 m data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports
- Plug and play with no configuration required
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Specifications
HARDWARE FEATURES
Interface
• 5x 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate
0.744 Mpps
PoE Ports (RJ45)
• Standard: 802.3 af compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W
Mac Address Table
2K
Jumbo Frame
2 KB
Switching Capacity
1 Gbps
Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption
• 1.9 W (220 V / 50 Hz, no PD connected)
• 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation
• 6.48 BTU/h(no PD connected)
• 160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents
• TL-SF1005LP
• Power Adapter
• Installation Guide
Environment
• Operating Temperature: 0–40 C (32–104 F)
• Storage Temperature: -40–70 C (-40–158 F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
TL-SF1005LP
Data sheet
- Data Transfer Rate
- 10/100 Mbps
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Package Weight
- 0.7500 kg
- Dimensions
- 100 x 98 x 25 mm
- Speed
- 10/100
- Power Supply
- External Power Adapter (Output: 53.5 V DC / 0.81 A)Consumption:1.9 W (220 V / 50 Hz, no PD connected)47 W (220 V / 50 Hz, with 41 W PD connected)
- Interface(s)
- 5 X 10/100 Mbps RJ45 (1 - 4 support 802.3af PoE)AUTO NegotiationAUTO MDI/MDIX
- Package Contents
- TL-SF1005LPPower AdapterInstallation Guide
- Ports
- 5 Ports
- Rackmountable
- No
- Management
- No
- Number of Ports
- 5
- PoE Ports (RJ45)
- Standard: 802.3 af compliantPoE Ports: Ports 1–4Power Supply: 41 W
- Switching Capacity
- 1 Gbps
- Environment
- Operating Temperature: 0–40C (32–104F)Storage Temperature: -40–70C (-40–158F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
- Security
- Physical Security Lock
- Advanced Functions
- Compatible With IEEE 802.3af/at Compliant PDsExtend Mode Button (Ports 1–4)Priority Mode Button (Ports 1–2)Mac Address Auto-Learning And Auto-AgingIEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
- Transfer Method
- Store-And-Forward
- Mac Address Table
- 2K
- Packet Forwarding Rate
- 0.744 Mpps
- Jumbo Frame
- 2 KB
- POE
- Yes
- RJ45 Data Transfer Rate
- 10/100 Mbps
- Managed/Unmanaged
- Unmanaged
- PoE capable
- Yes
