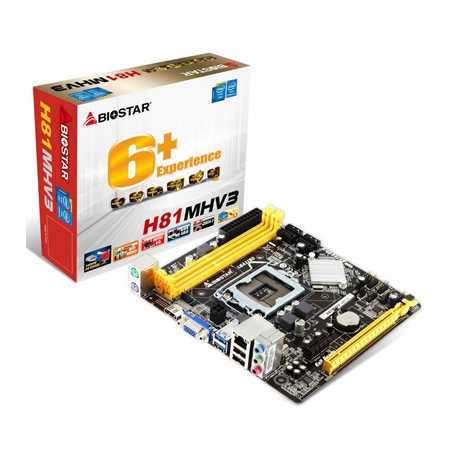

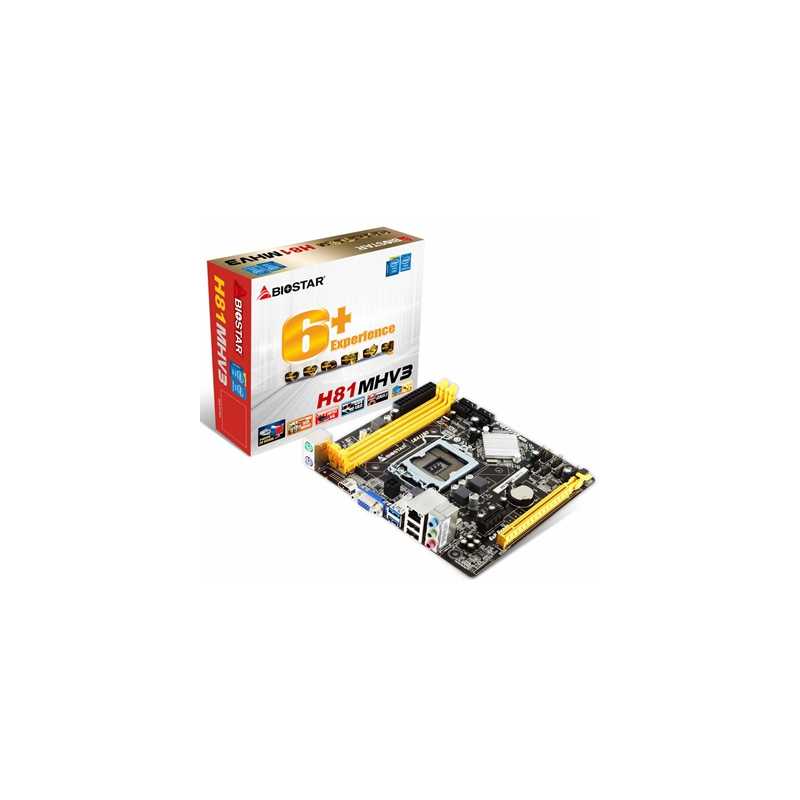

Biostar H81MHV3 Intel Socket 1150 4th Gen Micro ATX VGA/HDMI USB 3.0 Motherboard
£58.65
VAT included
The latest Intel H81 Express chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. It natively supports up to two USB 3.0 ports for up to 10 times faster transfer rates than previous USB 2.0. Intel H81 Express chipset also supported iGPU such as Intel processors with DX11 graphics allow you enjoy the higher frame rate in Gaming experience.
Chipset
Intel H81
CPU SUPPORT
Intel Core i7 LGA 1150 Processor
Intel Core i5 LGA 1150 Processor
Intel Core i3 LGA 1150 Processor
Intel Pentium LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY
Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
EXPANSION SLOT
1 x PCI-E x16 2.0 Slot
1 x PCI-E x1 2.0 Slot
STORAGE
2 x SATA3 Connector
2 x SATA2 Connector
USB
2 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN
Realtek RTL8111G - 10/100/1000 Controller
INTEGRATED VIDEO
By CPU model
Supports DX11.1
CODEC
Realtek ALC662 6-Channel HD Audio
REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O
2 x USB 2.0 Header
2 x SATA3 6Gb/s Connector
2 x SATA2 3Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU FAN Header
1 x System FAN Header
1 x Serial Header
H/W Monitoring
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION
Micro ATX Form Factor Dimension: 19cm x 17cm ( W x L )
OS SUPPORT
Support Windows 7 / 8 / 8.1
Bundle Software
BIO-Remote2
Smart Speed LAN
ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES
Windows 8 Ready
Supports Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
