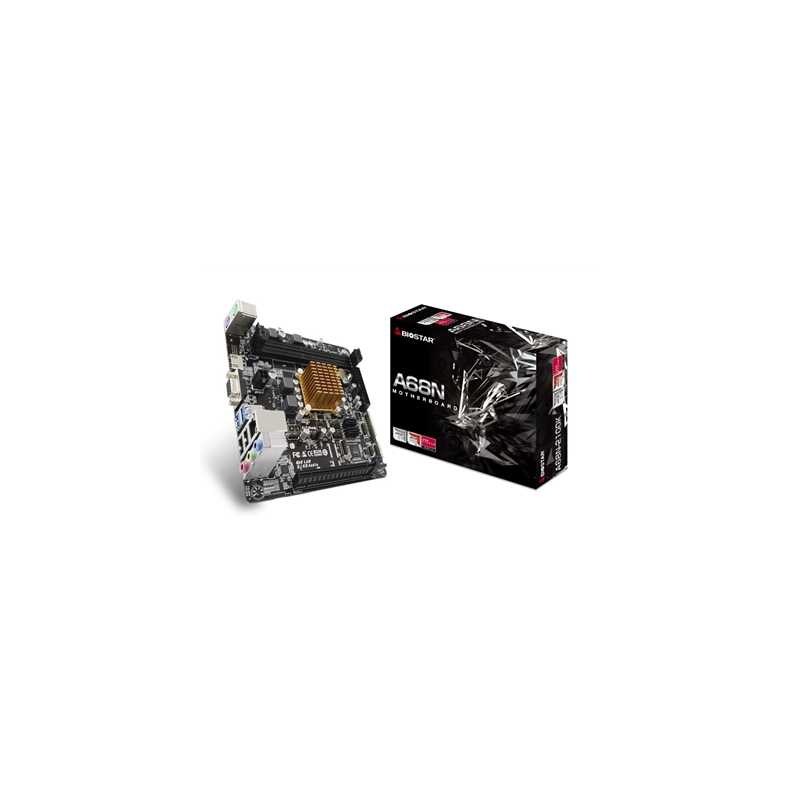

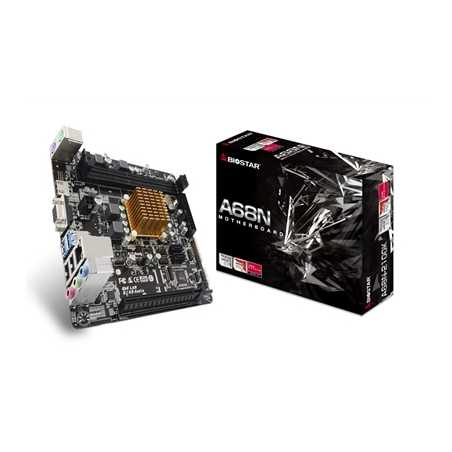

Biostar A68N-2100K AMD Integrated E1-6010 Mini ITX DDR3 VGA/HDMI USB 3.2 Gen1 Motherboard

AMD E1-6010 Processor
Supports 2 DIMM of DDR3 & DDR3L 800/ 1066/ 1333 (1.25V) up to 16GB maximum capacity
Supports HDMI Connector
Supports USB 3.2 Gen1 Port
Supports TPM Header

AMD E1-6010
AMD E1-6010 APU with Radeon R2 Graphics

HD Audio
Provides high quality sound with minimal loss of audio fidelity.

SPDIF Output on board
Onboard Optical & Coaxial connector supports your desktop in transferring the non-distortion digital audio output to the AV amplifier and professional speaker system.

HDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD ,4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.

DX 11.1
Direct3D 11.1 enables Direct3D 10 APIs and Direct3D 11 APIs to use one underlying rendering device. And it allows developers to achieve a high speed, fully conformant software rasterizer.

SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA 3G.

USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.

Specifications

Chipset
AMD Beema

CPU
AMD E1-6010 Processor
(Dual core 1.35GHz)

Memory
Supports Single Channel DDR3 & DDR3L 800/1066/1333 (1.25V)
2 x DDR3 & DDR3L DIMM Memory Slots
Max. Supports up to 16GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 & DDR3L module

Integrated Video
AMD Radeon R2 Graphics
Supports HDCP

Storage
2 x SATA III Connectors (6Gb/s) : Supports AHCI

LAN
Realtek RTL8111H - 10/100/1000Mb/s Controller

Audio Codec
Realtek ALC887 7.1-Channel Audio
Support HD Audio
Support SPDIF_out

USB
2 x USB 3.2 Gen1 Port (2 on rear I/Os)
6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)

Expansion Slot
1 x PCI-E 2.0 x16 Slot (x4)

Rear I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.2 Gen1 Ports
2 x USB 2.0 Port
1 x HDMI Port
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

Internal I/O
2 x USB 2.0 Header (each header support 2 USB 2.0 ports)
2 x SATA III Connectors (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x TPM Header
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
1 x Printer Port Header

Hardware Monitoring
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control

Dimensions
Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )

OS Support
Supports Windows 7 /8.1 /10
- Biostar reserves the right to add or remove support for any OS with or without notice.

Bundled Software
BullGuard
Smart Speed LAN

Accessories
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

Features
Supports 100% Solid capacitor
Supports BIOS-Flasher
