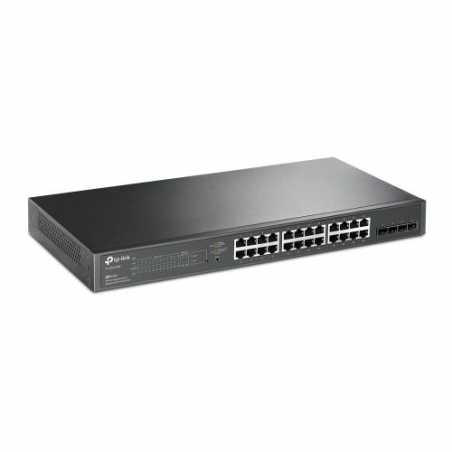

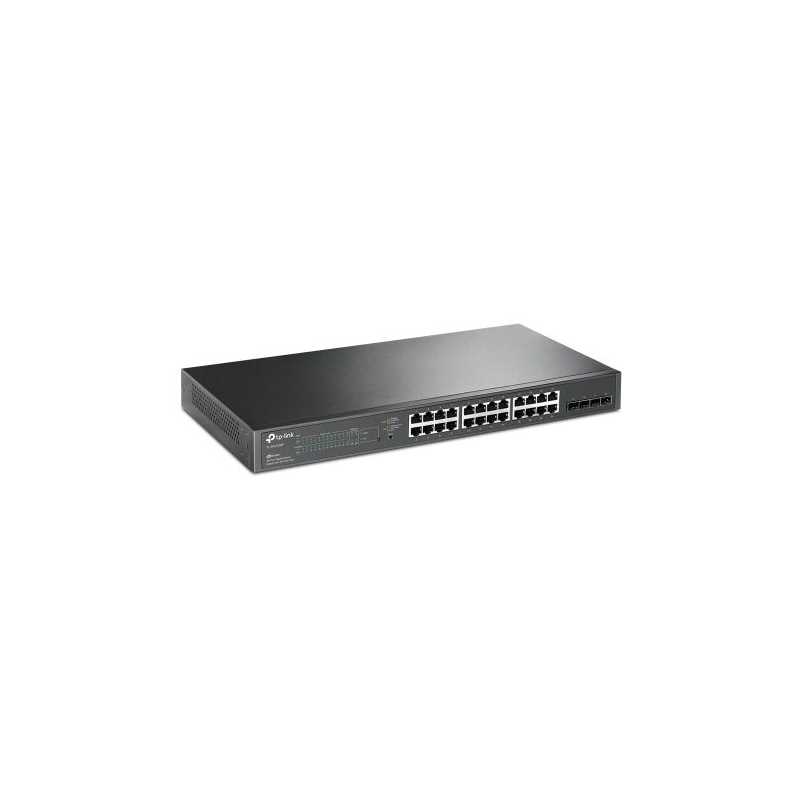

TP-LINK (TL-SG2428P) JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+, 4 GB SFP Slots, Rackmountable
search
  • TP-LINK (TL-SG2428P) JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+, 4 GB SFP Slots
  • TP-LINK (TL-SG2428P) JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+, 4 GB SFP Slots
  • TP-LINK (TL-SG2428P) JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+, 4 GB SFP Slots, Rackmountable

TP-Link JetStream TL-SG2428P 28-Port Metal Gigabit Smart PoE Switch with 24-Port PoE+ (250W)

£252.82
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock

JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+

Key Features

250 W PoE Budget
24x 802.3at/af-compliant PoE+ ports with a total power supply of 250 W

Full Gigabit Ports
24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management
Cloud access and Omada app for ultra convenience and easy management.

Static Routing
Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications
L2/L3/L4 QoS and IGMP snooping.

IPv6
IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Specifications

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface
24 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x Gigabit SFP Slots

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF

Fan Quantity
2

Power Supply
100-240V AC, 50/60Hz

PoE+ Ports(RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W

Dimensions ( W x D x H )
17.3 x 8.7 x 1.73 in (440 x 220 x 44 mm)

Mounting
Rack Mountable

Max Power Consumption
32.1 W (110 V/ 60 Hz with no PD connected)
308.6 W (110 V/ 60 Hz with 250 W PD connected)

Switching Capacity
56 Gbps

Bandwidth/Backplane
56 Gbps

Packet Forwarding Rate
41.7 Mpps

MAC Address Table
8K

Packet Buffer Memory
4.1 Mbit

Jumbo Frame
9KB

Certification
CE, FCC, RoHS

Package Contents
TL-SG2428P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet

System Requirements
Microsoft Windows XP, Vista or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0–50 C (32–122 F);
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
TP-LINK
TL-SG2428P

Data sheet

Data Transfer Rate
10/100/1000 Mbps
Warranty
Limited Lifetime
Package Type
Retail
Package Weight
4.1000 kg
Dimensions
440 x 220 x 44 mm
Type
Unmanaged Switch
Speed
10/100/1000Mbps
Power Supply
PoEMax Consumption:32.1 W (110 V/ 60 Hz with no PD connected)308.6 W (110 V/ 60 Hz with 250 W PD connected)
Interface(s)
24 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)4 x Gigabit SFP Slots
Package Contents
TL-SG2428PPower CordInstallation GuideRackmount KitRubber Feet
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Rackmountable
Yes
Management
Omada AppOmada Cloud-Based ControllerCentralized ManagementWeb-based GUI and CLI managementSNMP v1/v2c/v3 (public MIBs and TP-Link private MIBs)RMON (1, 2, 3, 9 groups)CPU MonitoringPort MirroringFirmware Upgrade: TFTP & WebSystem Diagnose: VCTSYSLOG & Pu
Number of Ports
28
PoE Ports (RJ45)
Standard: 802.3at/af compliantPoE+ Ports: 24 PortsPower Supply: 250 W
Bandwidth
56 Gbps
Environment
Operating Temperature: 0–50C (32–122F);Storage Temperature: -40–70C (-40–158F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
Security
AAAPort SecurityDHCP SnoopingIP-MAC-Port BindingIPv6-MAC-Port BindingARP Inspection802.1x and Radius AuthenticationSSH v1/v2SSL v3/TLSv1.2Broadcast/Multicast/Unknown-unicast Storm ControlDos Defend
Advanced Functions
See Overview
Quality of Service
Support 802.1p CoS/DSCP prioritySupport 8 priority queuesQueue scheduling: SP, WRR, SP+WRRPort/Flow- based Rate LimitingIPv6 QoSVoice VLAN
Mac Address Table
8k
Packet Forwarding Rate
41.7 Mpps
Jumbo Frame
9KB
Layer Features
Static RoutingDHCP RelayDHCP ServerIGMP Snooping V1/V2/V3Spanning Tree STP/RSTP/MSTPBPDU Filtering/GuardTC/Root ProtectLoopback detection802.3x Flow ControlLLDP, LLDP-MED802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
VLAN
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)MAC/Protocol-based VLAN
Access Control
L2–L4 package filteringMAC ACLIP ACLCombined ACLIPv6 ACL
POE
Yes
RJ45 Data Transfer Rate
10/100/1000 Mbps
