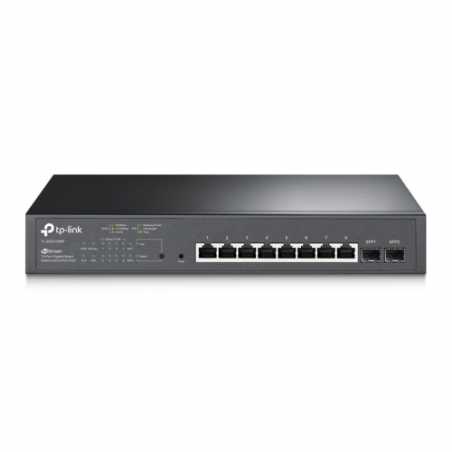

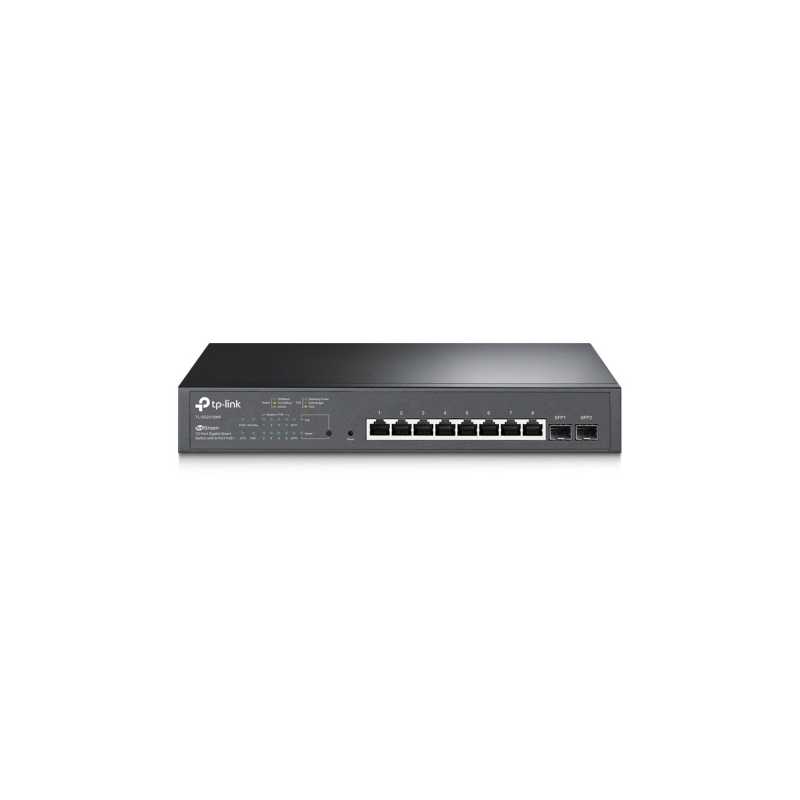

TP-LINK (TL-SG2210MP) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 GB SFP Slots, Rackmountable
search
  • TP-LINK (TL-SG2210MP) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 GB SFP Slots
  • TP-LINK (TL-SG2210MP) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 GB SFP Slots
  • TP-LINK (TL-SG2210MP) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 GB SFP Slots, Rackmountable

TP-Link JetStream TL-SG2210MP 10-Port Metal Gigabit Smart PoE Switch with 8-Port PoE+ (150W)

£171.26
VAT included
Stock status: Very low
Last item
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%

150 W PoE Budget
8x 802.3at/af-compliant PoE+ ports with a total power supply of 150 W.

Full Gigabit Ports
8x gigabit PoE+ ports and 2x gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management
Cloud access and Omada app for ultra convenience and easy management.

Robust Security Strategies
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications
L2/L3/L4 QoS and IGMP snooping.

Specifications

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface
8x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
2x 100/1000 Mbps SFP Slots

Network Media
10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF

Fan Quantity
1

Physical Security Lock
Yes

Power Supply
100-240V AC, 50/60Hz

PoE+ Ports(RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 150 W

PoE Ports (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
PoE Power Budget: 150 W

Dimensions ( W x D x H )
11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)

Mounting
Rack Mountable

Max Power Consumption
12.2 W (110 V / 60 Hz with no PD connected)
173.9 W (110 V / 60 Hz with 150 W PD connected)

Max Heat Dissipation
41.63 BTU/h (with no PD connected)
539.35 BTU/h (with 150 W PD connected)

Switching Capacity
20 Gbps

Packet Forwarding Rate
14.9 Mpps

MAC Address Table
8K

Packet Buffer Memory
4.1 Mbit

Jumbo Frame
9 KB

Certification
CE, FCC, RoHS

Package Contents
TL-SG2210MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0–50 C (32–122 F);
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
TP-LINK
TL-SG2210MP
1 Item

Data sheet

Data Transfer Rate
10/100/1000 Mbps
Warranty
Limited Lifetime
Package Type
Retail
Package Weight
2.1600 kg
Dimensions
294 x 180 x 44 mm
Power Supply
PoEMax Consumption:12.2 W (110 V / 60 Hz with no PD connected)173.9 W (110 V / 60 Hz with 150 W PD connected)
Interface(s)
8 x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)2 x 100/1000 Mbps SFP Slots
Package Contents
TL-SG2210MPPower CordInstallation GuideRackmount KitRubber Feet
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Rackmountable
Yes
Management
Omada AppCentralized ManagementWeb-based GUI and CLI managementSNMPv1/v2c/v3SNMP Trap/InformRMON (1,2,3,9 groups)SDM TemplateDHCP/BOOTP ClientDual Image, Dual ConfigurationCPU MonitoringCable DiagnosticsEEESystem Log802.1ab LLDP/ LLDP-MED
Number of Ports
10
PoE Ports (RJ45)
Standard: 802.3at/af compliantPoE+ Ports: 8 PortsPower Supply: 150 W
Switching Capacity
20 Gbps
Environment
Operating Temperature: 0C~40C (32F~104F);Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Security
AAA802.1XIP/IPv6-MAC BindingIP Source GuradIPv6 Source GuradDoS DefendStatic/Dynamic/Permanent Port SecurityBroadcast/Multicast/Unicast Storm ControlPort IsolationSecure web management through HTTPS with SSLv3/TLS1.2Secure Command Line Interface managemen
Advanced Functions
See Overview
Quality of Service
802.1p CoS/ DSCP priority8 priority queuesPriority Schedule ModeQueue Weight ConfigBandwidth ControlSmoother PerformanceActions for flowsStorm Control
Mac Address Table
8k
Packet Forwarding Rate
14.9 Mpps
Jumbo Frame
9 KB
Layer Features
DHCP RelayDHCP L2 RelayLink AggregationSpanning Tree ProtocolLoopback DetectionFlow ControlMirroringDevice Link Detect Protocol (DLDP)802.1ab LLDP/ LLDP-MED
VLAN
VLAN Group802.1Q tag VLANMAC VLANProtocol VLANGVRPVoice VLAN
Access Control
Support up to 230 entriesTime-RangeTime-based ACLMAC ACLIP ACLIPv6 ACLCombined ACLRule OperationPolicy ActionACL Rules Binding
POE
Yes
RJ45 Data Transfer Rate
10/100/1000 Mbps
