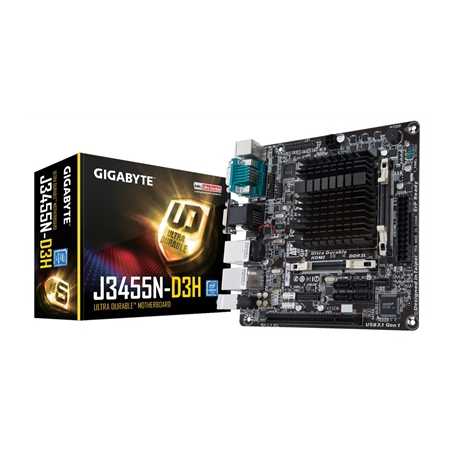

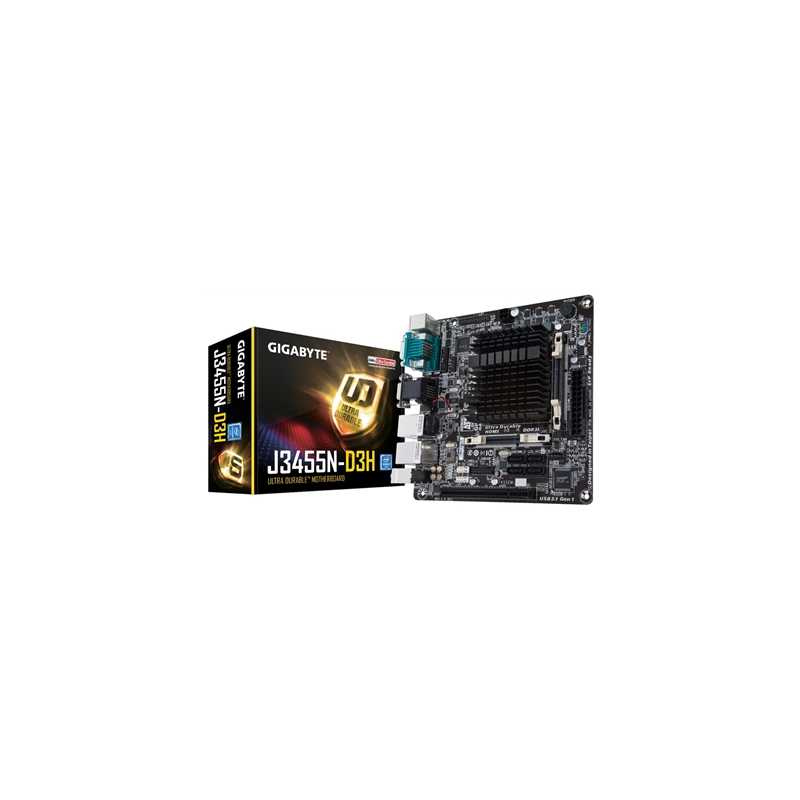

Gigabyte J3455N-D3H Intel Embedded Celeron J3455 Mini ITX VGA/HDMI Dual Serial DDR3L USB 3.1 Motherboard
£94.77
VAT included
Built-in Intel Celeron J3455 (up to 2.3 GHz) quad-core processor
GIGABYTE Ultra Durable Technology
Dual channel DDR3L SO-DIMM slot support
All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
Dual GbE LAN with high ESD Protection
Extra two SATA 6Gb/s interfaces for more system storage connectivity
High Quality Audio Capacitors
PCI interface for wide-range expansion card selections
The GIGABYTE J3455 Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel Celeron J3455 quad-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE J3455N-D3H is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA ports, two extra SATA 6Gb/s connectors.
Intel Celeron J3455 Processor
The Intel Celeron J3455 Quad-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 14nm manufacturing process, the Intel Celeron J3455 uses the smallest package of any desktop processor within a low thermal envelope of on 10 watts. The Intel Celeron J3455 boasts excellent performance including DX12 gaming on Intel HD Graphics, plus a dedicated HEVC decoder for smooth HD video playback.
High Quality Audio Capacitors
GIGABYTE Ultra Durable motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for user experience.
HDMI-The Next Generation Multimedia Interface
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.
GIGABYTE Ultra Durable
GIGABYTE Ultra Durable debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
Ultra Performance
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
Humidity Protection
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
Power Surge Protection
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
Electrostatic Protection
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
Specifications
CPU
Built in with an Intel Quad-Core Celeron J3455 SoC (2.3 GHz)
2MB Cache
Memory
2 x DDR3L SO-DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3L 1866/1600/1333 MHz memory modules
Support for non-ECC memory modules
Onboard Graphics
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
LAN
2 x Realtek GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
1 x PCI slot
Storage Interface
Integrated in the SoC:
2 x SATA 6Gb/s connectors (SATA3 0, SATA3 1)
ASMedia ASM1061 chip:
2 x SATA 6Gb/s connectors (SATA3 2, SATA3 3)
USB
Integrated in the SoC:
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
SOC + GENESYS LOGIC USB 2.0 Hub:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x Clear CMOS jumper
1 x chassis intrusion header
1 x TPM header
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x serial ports
1 x D-Sub port
1 x HDMI port
2 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
Hardware Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan speed control
BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System
Support for Windows 10 64-bit
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
GIGABYTE Ultra Durable Technology
Dual channel DDR3L SO-DIMM slot support
All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
Dual GbE LAN with high ESD Protection
Extra two SATA 6Gb/s interfaces for more system storage connectivity
High Quality Audio Capacitors
PCI interface for wide-range expansion card selections
The GIGABYTE J3455 Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel Celeron J3455 quad-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE J3455N-D3H is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA ports, two extra SATA 6Gb/s connectors.
Intel Celeron J3455 Processor
The Intel Celeron J3455 Quad-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 14nm manufacturing process, the Intel Celeron J3455 uses the smallest package of any desktop processor within a low thermal envelope of on 10 watts. The Intel Celeron J3455 boasts excellent performance including DX12 gaming on Intel HD Graphics, plus a dedicated HEVC decoder for smooth HD video playback.
High Quality Audio Capacitors
GIGABYTE Ultra Durable motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for user experience.
HDMI-The Next Generation Multimedia Interface
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.
GIGABYTE Ultra Durable
GIGABYTE Ultra Durable debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
Ultra Performance
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
Humidity Protection
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
Power Surge Protection
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
Electrostatic Protection
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
Specifications
CPU
Built in with an Intel Quad-Core Celeron J3455 SoC (2.3 GHz)
2MB Cache
Memory
2 x DDR3L SO-DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3L 1866/1600/1333 MHz memory modules
Support for non-ECC memory modules
Onboard Graphics
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
LAN
2 x Realtek GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
1 x PCI slot
Storage Interface
Integrated in the SoC:
2 x SATA 6Gb/s connectors (SATA3 0, SATA3 1)
ASMedia ASM1061 chip:
2 x SATA 6Gb/s connectors (SATA3 2, SATA3 3)
USB
Integrated in the SoC:
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
SOC + GENESYS LOGIC USB 2.0 Hub:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x Clear CMOS jumper
1 x chassis intrusion header
1 x TPM header
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x serial ports
1 x D-Sub port
1 x HDMI port
2 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
Hardware Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan speed control
BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System
Support for Windows 10 64-bit
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
