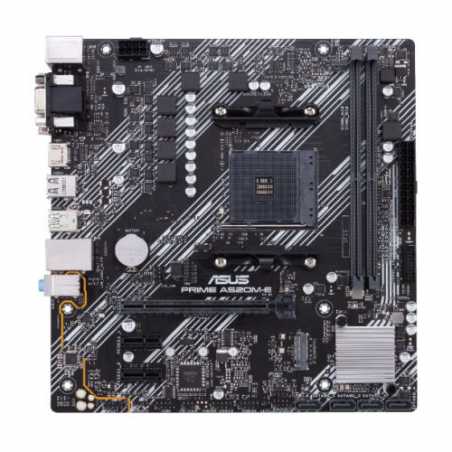

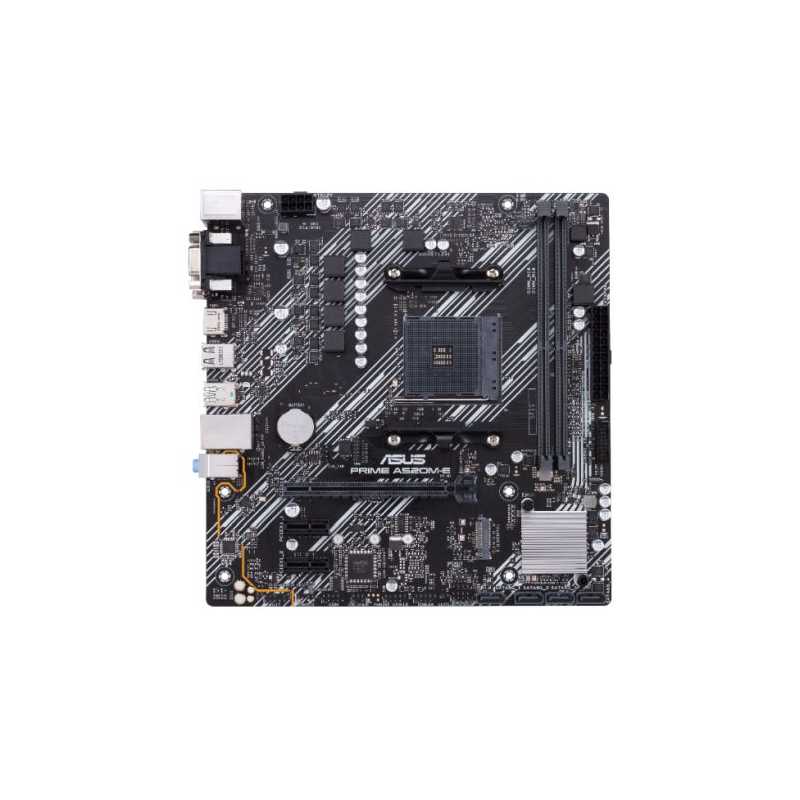

Asus PRIME A520M-E, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
  • Asus PRIME A520M-E, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

Asus PRIME A520M-E, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

£77.57
Tax included
12 items
Delivered within 1-2 days
Quantity
In Stock

ASUS
90MB1510-M0EAY0
4718017826365
12 Items

Data sheet

.
1 x Speaker1 x SPI TPM (14-1pin)1 x 10-1 pin System Panel
Wireless
-
RAM Speeds
4600(O.C.)/4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz
Accessories
2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 SSD screw package1 x Support DVD1 x User manual
USB Ports Supported
1 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
Storage
4 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID
RAID 0, 1, 10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM4
Chipset
AMD A520
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
64GB
Multi-GPU Support
-
LAN
GB LAN
Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
1 x USB 3.2 Gen2 Type-A4 x USB 3.2 Gen12 x USB 2.01 x D-Sub1 x DVI-D1 x HDMI1 x Realtek RTL8111H 1Gb Ethernet3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin Chassis Fan1 x 24-pin Main Power1 x 8-pin +12V Power1 x M.2 slot (Key M) 4 x SATA 6Gb/s1 x USB 3.2 Gen12 x USB 2.01 x Clear CMOS1 x COM Port1 x Front Audio1 x S/PDIF Out
Package Type
Retail
Graphics Ports
1 x VGA1 x DVI-D1 x HDMI
Additional Features
See Overview
Graphics
Integrated Graphics Processor*Graphics specifications may vary between CPU types
#Hide#DDR Type
DDR4
#Hide#No. LAN Ports
1 x LAN
#Hide#Max LAN Speed
GB LAN
#Hide#M.2 Slot(s)
Yes (M.2)
PCI/PCI Express
1 x PCIe 3.0 x16 (supports x16 mode) 2 x PCIe 3.0 x1
