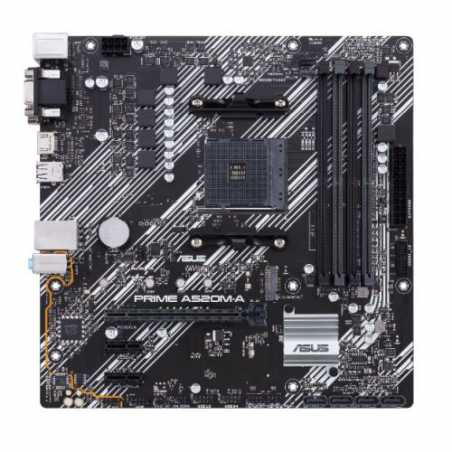

Asus PRIME A520M-A, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, M.2

Data sheet

.

1 x SPI TPM (14-1pin)1 x 20-5 pin System Panel

Wireless

-

RAM Speeds

4800(O.C)/4600(O.C.)/4466(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz

Accessories

2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 SSD screw package1 x Support DVD1 x User manual

USB Ports Supported

6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)

Storage

4 x SATA III1 x M.2 (2242/2260/2280/22110) - SATA & PCIe

RAID

RAID 0, 1, 10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM4

Chipset

AMD A520

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

-

LAN

GB LAN

Audio

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports

4 x USB 3.2 Gen1 Type-A2 x USB 2.0 Type-A1 x DVI-D1 x D-Sub1 x HDMITM port1 x Realtek RTL8111H 1Gb Ethernet3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan2 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V1 x M.2 slot (Key M) 4 x SATA 6Gb/s1 x USB 3.2 Gen1 header2 x USB 2.01 x Clear CMOS1 x S/PDIF out1 x COM Port1 x Front Audio

CPU Support

Click here for CPU support*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs

Package Type

Retail

Package Weight

0.9700 kg

Graphics Ports

1 x VGA1 x DVI-D1 x HDMI

Additional Features

See Overview

Graphics

Integrated Graphics Processor*Graphics specifications may vary between CPU types

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

PCI/PCI Express

1 x PCIe 3.0 x16 (supports x16 mode) 2 x PCIe 3.0 x1
