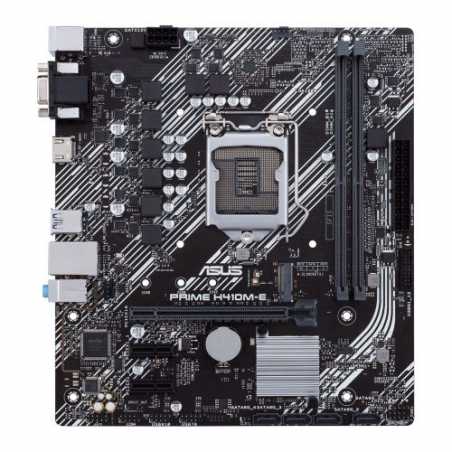

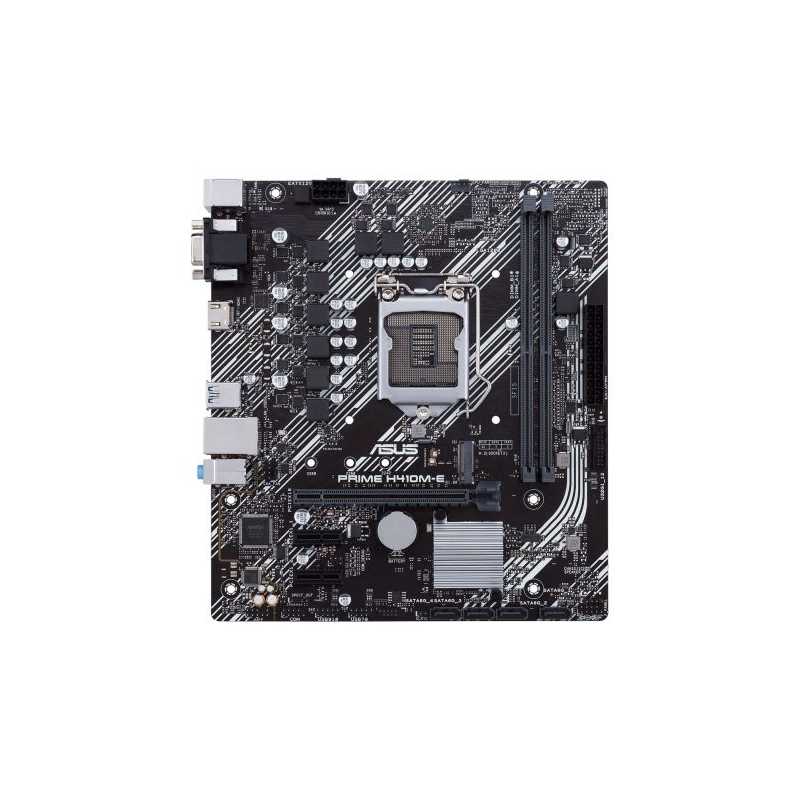

Asus PRIME H410M-E, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, HDMI, M.2
  • Asus PRIME H410M-E, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, HDMI, M.2

Asus PRIME H410M-E, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, HDMI, M.2

£78.42
Tax included
270 items
Delivered within 1-2 days
Quantity
In Stock


Intel® H410 (LGA 1200) mic-ATX motherboard with M.2 support, DDR4 2933MHz, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header

  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
  • Ultrafast connectivity: M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
ASUS
90MB13H0-M0EAY0
4718017721943
270 Items

Data sheet

.
1 x System panel1 x Speaker
PCI Express
1 x PCIe 3.0 x16 (x16 mode)2 x PCIe 3.0 x1
Wireless
-
RAM Speeds
2933/2800/2666/2400/2133 MHz
Accessories
I/O Shield2 x SATA 6Gb/s cables1 x M.2 Anchor
USB Ports Supported
4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
Storage
4 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID
-
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1200
Chipset
Intel H410
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
64GB
Multi-GPU Support
-
LAN
GB LAN
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
Back Panel I/O Ports
1 x PS/2 keyboard1 x PS/2 mouse1 x D-Sub1 x HDMI1 x LAN (RJ45)2 x USB 3.2 Gen 1 Type-A2 x USB 2.03 x Audio jacks
Internal I/O Connectors
1 x CPU Fan1 x Chassis Fan1 x USB 3.2 Gen12 x USB 2.01 x M.2 Socket 3 with M Key1 x COM port4 x SATA 6Gb/s1 x S/PDIF out1 x 24-pin EATX1 x 8-pin EATX 12V1 x Front audio1 x Clear CMOS
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x VGA1 x HDMI
Additional Features
See Overview
Graphics
Supports Intel HD Graphics
#Hide#DDR Type
DDR4
#Hide#No. LAN Ports
1 x LAN
#Hide#Max LAN Speed
GB LAN
#Hide#M.2 Slot(s)
Yes (M.2)
