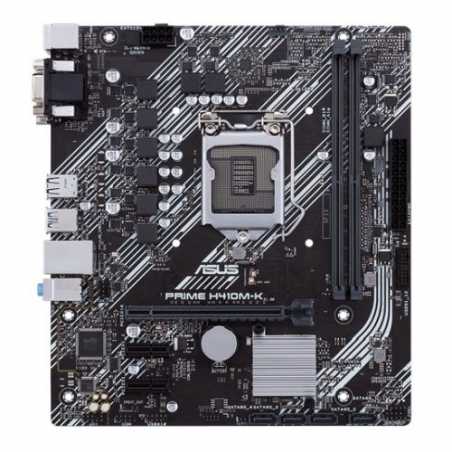

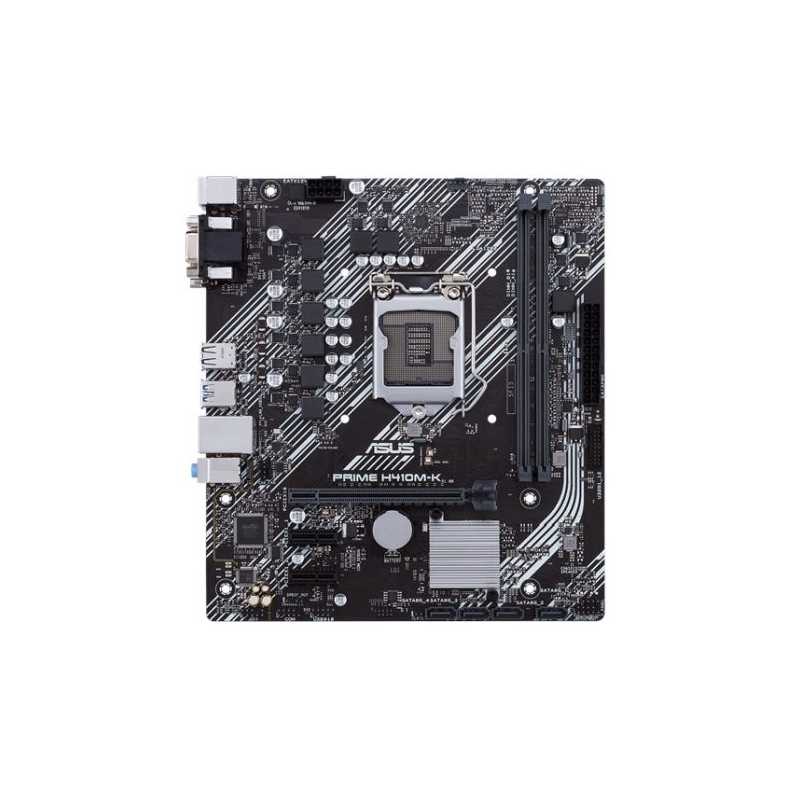

Asus PRIME H410M-K, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, DVI

Data sheet

.

1 x Speaker

PCI Express

1 x PCIe 3.0 x16 (x16 mode)2 x PCIe 3.0 x1

Wireless

-

RAM Speeds

2933/2800/2666/2400/2133 MHz

Accessories

I/O Shield2 x SATA 6Gb/s cables

USB Ports Supported

4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)6 x USB 2.0 (4 at back, 2 at mid-board)

Storage

4 x SATA III

RAID

-

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1200

Chipset

Intel H410

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

Maximum Memory

64GB

Multi-GPU Support

-

LAN

GB LAN

Audio

Realtek ALC887 7.1-Channel High Definition Audio CODEC

Back Panel I/O Ports

1 x PS/2 keyboard1 x PS/2 mouse1 x DVI-D1 x D-Sub1 x LAN (RJ45)2 x USB 3.2 Gen 1 Type-A4 x USB 2.03 x Audio jacks

Internal I/O Connectors

1 x CPU Fan1 x Chassis Fan1 x USB 3.2 Gen11 x USB 2.04 x SATA 6Gb/s1 x S/PDIF out1 x 24-pin EATX1 x 8-pin EATX 12V1 x Front audio1 x Clear CMOS jumper1 x System panel1 x COM port header

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

1 x VGA1 x DVI-D

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

#Hide#DDR Type

DDR4

#Hide#No. LAN Ports

1 x LAN

#Hide#Max LAN Speed

GB LAN
