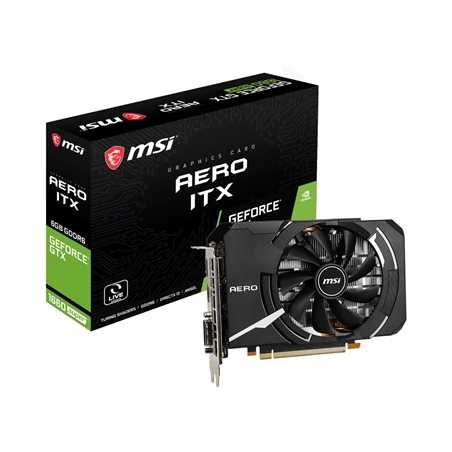

MSI GeForce GTX 1660 SUPER AERO ITX OC 6GB GDDR6 Single Fan Graphics Card

Core/Memory
Boost Clock / Memory Speed
1785 MHz / 14 Gbps
6GB GDDR6
DisplayPort x 1 / HDMI x 1 / DL-DVI-D x 1

All Solid Capacitors
10 years long lifetime under full load.
Lower temperature and higher efficiency.
Aluminum core for higher stability.

Afterburner Overclocking Utility
OC Scanner: An automated function finds the highest stable overclock settings.
Kombustor: The latest DirectX versions benchmark supporting.
Predator: In-game video recording.

NVIDIA G-SYNC
Get smooth, tear-free gameplay at refresh rates up to 240 Hz, plus HDR, and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.

SMALL PACKAGE, BIG PUNCH
The power of a full size graphics card in an incredibly small package. MSI AERO ITX graphics cards are perfect for small form factor systems and HTPCs as they only take up a fraction of the space of a full size graphics card. This means they will fit into virtually any system and ensure a smooth gaming experience.

PERFECT IN ANY CASE
The saying Good things come in small packages is certainly true for AERO ITX cards. Thanks to its small form factor it will fit into virtually any case. Its compact size also means that its weight is dramatically less than that of a full size graphics card.

Specifications

Model Name
GeForce GTX 1660 SUPER AERO ITX

Graphics Processing Unit
NVIDIA GeForce GTX 1660 SUPER

Interface
PCI Express x16 3.0

Cores
1408 Units

Core Clocks
Boost: 1785 MHz

Memory Speed
14 Gbps

Memory
6GB GDDR6

Memory Bus
192-bit

Output
DL-DVI-D x 1 / DisplayPort x 1 (v1.4) / HDMI 2.0b x 1

HDCP Support
2.2

Power Consumption
125 W

Power Connectors
8-pin x 1

Recommended PSU
450W

Card Dimensions
179 x 127 x 42 mm

Weight (Card/Package)
561 g / 876 g

DirectX Version Support
12 API

OpenGL Version Support
4.5

Maximum Displays
3

VR Ready
Yes

G-Sync Technology
Yes

Digital Maximum Resolution
7680 x 4320
