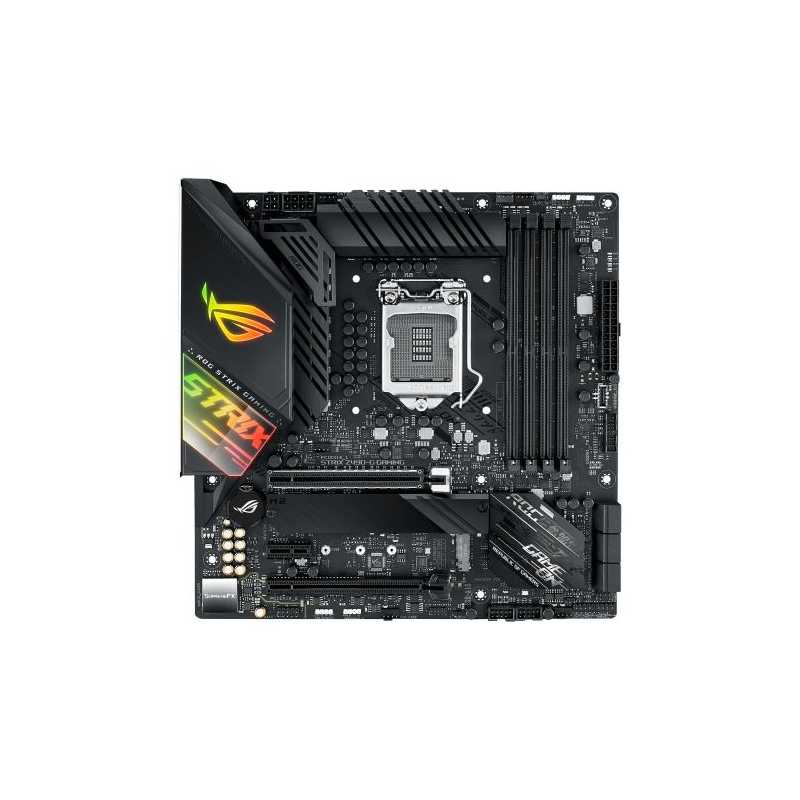

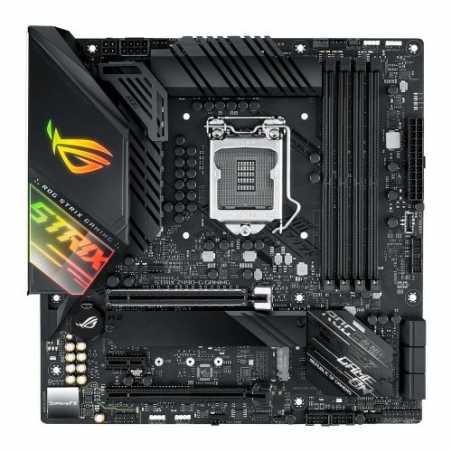

Asus ROG STRIX Z490-G GAMING, Intel Z490, 1200, Micro ATX, 4 DDR4, XFire, HDMI, DP, 2.5G LAN, RGB Lighting, M.2

Data sheet

.

1 x 24-pin EATX1 x 8-pin ATX 12V1 x 4-pin ATX 12V1 x Front audio1 x System panel1 x Thermal sensor1 x CPU OV1 x Clear CMOS jumper1 x VRM_HS_FAN

PCI Express

Intel 10th Gen Processors1 x PCIe 3.0 x16 (x16 mode)Intel Z490 Chipset1 x PCIe 3.0 x16 (max at x4 mode)1 x PCIe 3.0 x1

Wireless

-

RAM Speeds

4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Accessories

4 x SATA 6Gb/s cables1 x ROG Strix stickers1 x Cable ties pack1 x Ext Cable for RGB strips (80 cm)1 x Ext cable for Addressable LED1 x ROG Thank you card1 x 2-in-1 Rubber pad1 x Wi-Fi moving antenna1 x M.2 SSD screw package1 ROG key chain

USB Ports Supported

2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x USB 3.2 Gen2 Type-C front panel connector

Storage

6 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID

RAID 0, 1, 5, 10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1200

Chipset

Intel Z490

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

LAN

2.5GB LAN

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

Back Panel I/O Ports

1 x Intel I225-V 2.5Gb Ethernet1 x DisplayPort1 x HDMI2 x USB 3.2 Gen24 x USB 3.2 Gen1 Type-A2 x USB 2.01 x Optical S/PDIF out1 x USB BIOS FlashBack Button1 x ASUS Wi-Fi Module5 x Gold-plated audio jacks

Internal I/O Connectors

1 x CPU Fan1 x CPU OPT Fan2 x Chassis Fan1 x W_PUMP+2 x Aura RGB Strip2 x Addressable Gen21 x USB 3.2 Gen21 x USB 3.2 Gen 12 x USB 2.01 x M.2 Socket 11 x M.2 Socket 26 x SATA 6Gb/s

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

Specific References

EAN13

4718017680455
