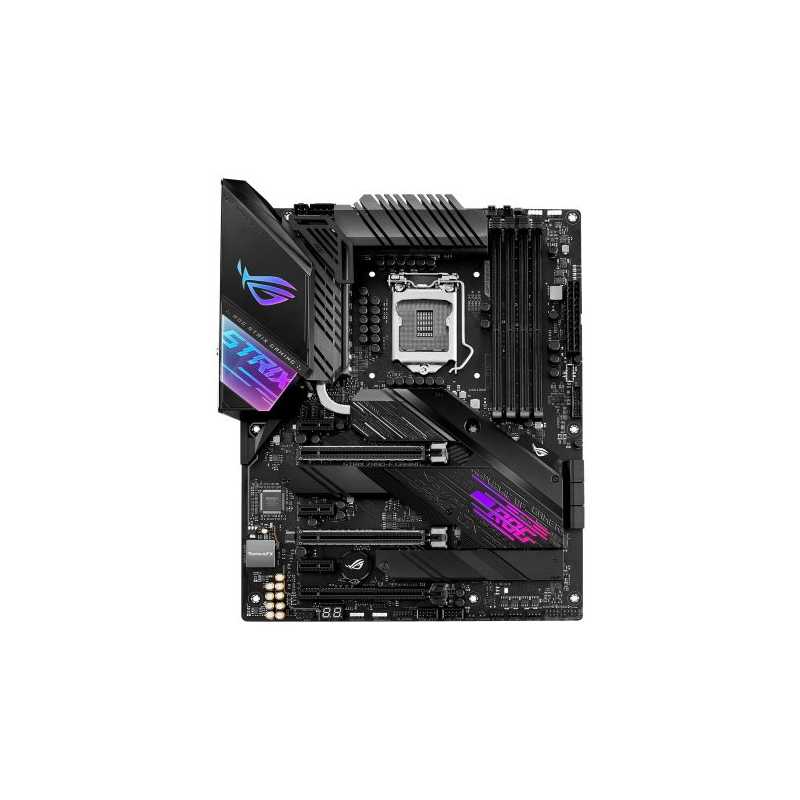

Asus ROG STRIX Z490-E GAMING, Intel Z490, 1200, ATX, 4 DDR4, XFire/SLI, HDMI, DP, AX Wi-Fi, 2.5G LAN, RGB Lighting, M.2

Data sheet

.

1 x CPU_OV jumper1 x Q-Code1 x VRM_HS_FAN

PCI Express

Intel 10th Gen Processors2 x PCIe 3.0 x16 (x16 or dual x8)Intel Z490 Chipset1 x PCIe 3.0 x4 (x4 mode)3 x PCIe 3.0 x1

Wireless

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports CNVI interfaceBluetooth v5.1

RAM Speeds

4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Accessories

1 x ASUS Fan Holder4 x SATA 6Gb/s cables1 x MOS Cooling kit1 x ROG Strix stickers1 x Cable ties pack1 x Extension Cable for RGB strips1 x Extension cable for Addressable LED1 x Thermistor cable1 x ROG Thank you card1 x 2-in-1 Rubber pad1 x Wi-Fi moving an

USB Ports Supported

4 x USB 3.2 Gen2 (3 Type-A & 1 Type-C at back)4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)8 x USB 2.0 (4 at back, 4 at mid-board)1 x USB 3.2 Gen2 Type-C front panel connector

Storage

6 x SATA III1 x M.2 (2242/2260/2280/22110) - SATA & PCIe1 x M.2 (2242/2260/2280/22110) - PCIe

RAID

RAID 0, 1, 5, 10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1200

Chipset

Intel Z490

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

Supports NVIDIA 2-Way SLI TechnologySupports AMD 3-Way CrossFireX Technology

LAN

2.5GB LAN

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

Back Panel I/O Ports

1 x Intel I225-V 2.5Gb Ethernet1 x DisplayPort1 x HDMI4 x USB 3.2 Gen22 x USB 3.2 Gen14 x USB 2.01 x Optical S/PDIF out1 x USB BIOS FlashBack Button5 x Gold-plated audio jacksASUS Wi-Fi module

Internal I/O Connectors

1 x M.2_FAN1 x CPU Fan 1 x CPU OPT Fan2 x Chassis Fan1 x AIO_PUMP1 x W_PUMP+2 x Addressable RGB1 x AAFP2 x Aura RGB Strip1 x USB 3.2 Gen21 x USB 3.2 Gen12 x USB 2.0

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

Specific References

EAN13

4718017671620
