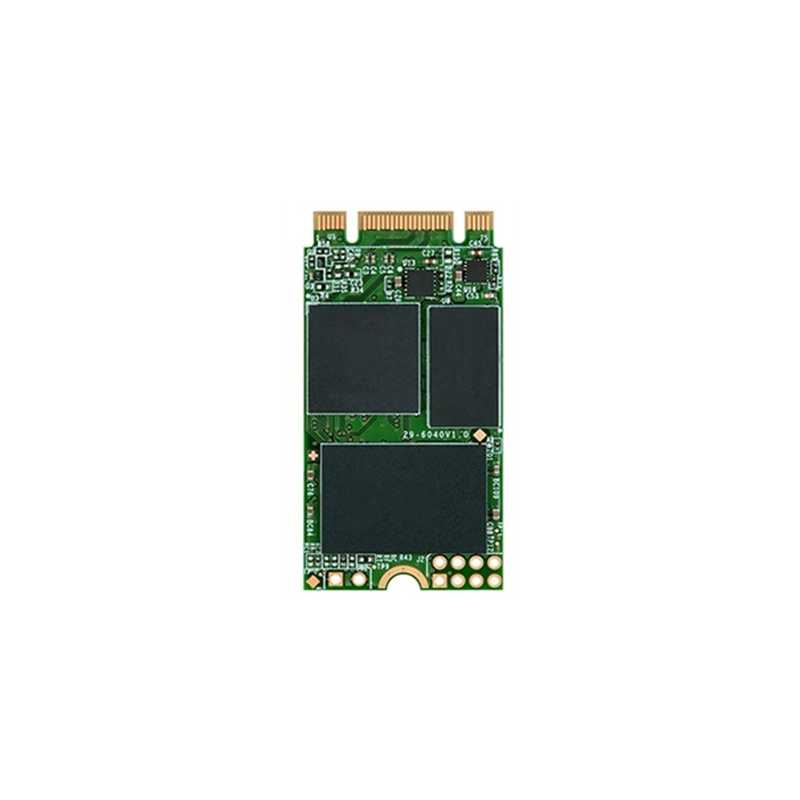

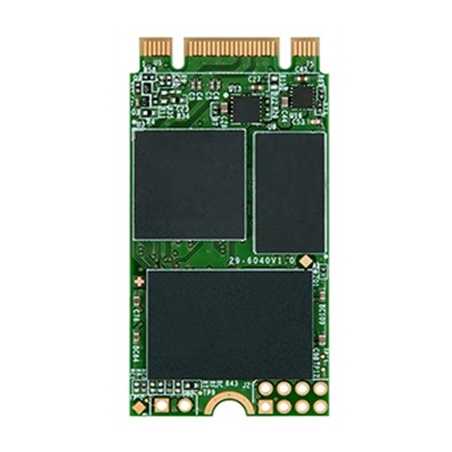

Transcend 420s 120GB M.2 2242 SATA III TLC SSD

M.2 SSD 420S

Utilizing the SATA III 6Gb/s interface and the latest 3D NAND technology, Transcend's ultracompact M.2 SSD 420S is well-suited to address the high-performance needs and strict size limitations of small form factor devices. By using only high-quality flash chips and enhanced firmware algorithms, Transcend's M.2 SSD 420S delivers peerless reliability.

Key Features
Space-saving M.2 SATA form factor (42mm) for ultra-compact computing devices
3D NAND flash chips
SATA III 6Gb/s interface and SLC caching technology for exceptional transfer speeds
Engineered with a RAID engine and LDPC (Low-Density Parity Check) coding to ensure data integrity
Supports Device Sleep Mode (DevSleep) to prolong notebook battery life by intelligently shutting down SATA interface when not in use
Supports S.M.A.R.T., TRIM and NCQ commands

Capacity
120GB

Model
TS240GMTS420S

Form Factor
M.2 2242


Interface
M.2

Connections
1 x M.2 (SATA)

Max Read/Write
Read: Up to 560 MB/s
Write: Up to 500 MB/s

Max 4KB Random Read/Write
Read: Up to IOPS - 65000 IOPS
Write: Up to IOPS - 85000 IOPS


Dimensions (W x H x D)
22mm x 42mm x 3.58mm

Weight
8g

Packaging
Retail/OEM
