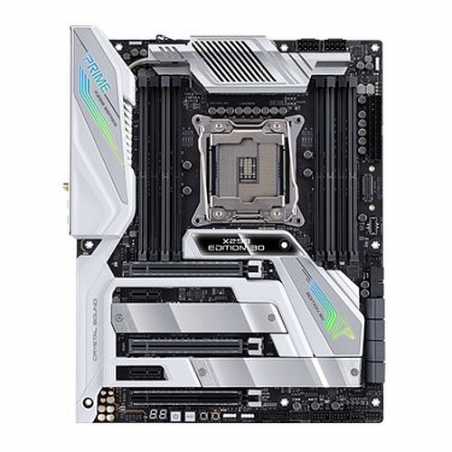

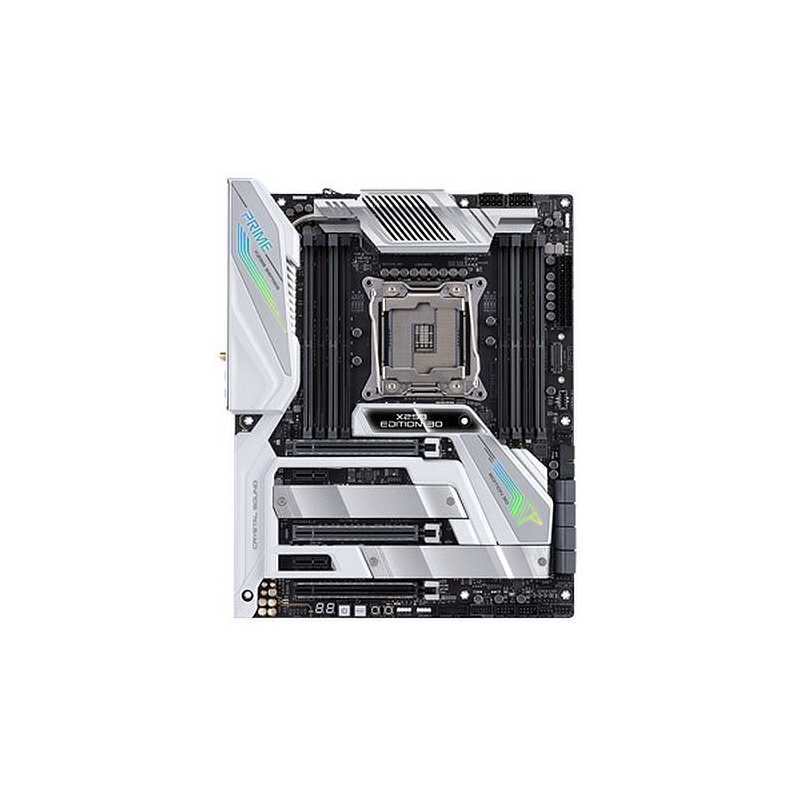

Intel ATX motherboard LGA 2066 for Intel Core X-series processors with AI Overclocking, 16 IR3555 power stages, DDR4 4266 MHz, Wi-Fi 6, 5 Gbps Ethernet, Type-C Thunderbolt 3 ports, Triple M.2, USB 3.2 front panel connector and Aura Sync RGB lighting
Intel LGA 2066 socket: Ready for the latest Intel® Core™ X-series processors
AI Overclocking: Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
Robust power design: 16 IR3555 power stages, ProCool II connectors, alloy chokes and 10K Japanese-made capacitors for stable power delivery
Comprehensive thermal design: Skived-fin heatsink, active heatsink, M.2 heatsinks, 2Oz-PCB design and backplates.
Next-gen connectivity: Two Type-C™ Thunderbolt 3 with DisplayPort 1.4, three M.2 and front USB 3.1 Gen 2 connector
High-performance networking: Onboard Wi-Fi 6 (802.11ax) with MU-MIMO support, Aquantia® 5 Gbps Ethernet and Intel Gigabit Ethernet
1 x USB BIOS FlashBack button1 x USB 3.2 Gen 2 front panel connector1 x Q-Code1 x FlexKey button
1 x W_PUMP+1 x AIO_PUMP1 x 24-pin EATX2 x 8-pin EATX 12V1 x System panel1 x Thermal sensor1 x CPU OV1 x Power-on button1 x Clear CMOS button1 x Node
Smart Control Console1 x Smart Control Console2 x micro USB 2.0 cables for Smart Console Console
PCI Express
48-Lane CPUs:3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)2 x PCIe 3.0/2.0 x144-Lane CPU:3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)2 x PCIe 3.0/2.0 x128-Lane CPU:2 x PCIe 3.0/2.0 x16 (x16, x16/x8)2 x PCIe 3.0/2.0 x1
Wireless
Intel Wi-Fi 6 AX200Wi-Fi 802.11 ax, Bluetooth 5.0Supports channel bandwidth: HT20/HT40/HT80/HT1602 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)MU-MIMO supports dual frequency band 2.4/5GHzUp to 2.4Gbps transfer speed
USB Ports Supported
2 x Thunderbolt 3 Type-C (at back)8 x USB 3.2 Gen 1 (4 at back, 4 at mid-board)4 x USB 2.0 (2 at back, 2 at mid-board)1 x USB 3.2 Gen 2 front panel connector
Storage
8 x SATA III2 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
Realtek S1220A 8-Channel High Definition Audio CODEC
Back Panel I/O Ports
2 x Thunderbolt 3 ports Type-C2 x DisplayPort IN ports for Thunderbolt 31 x LAN (RJ45)4 x USB 3.2 Gen 12 x USB 2.01 x Optical S/PDIF out5 x Audio jacks1 x ASUS Wi-Fi Module1 x AQC-111C 5G LAN
Internal I/O Connectors
2 x Aura Addressable Strip1 x AAFP2 x Aura RGB Strip2 x USB 3.2 Gen 11 x USB 2.03 x M.2 Socket 3 with M key8 x SATA 6Gb/s1 x M.2_FAN1 x VROC_HW_Key1 x CPU Fan1 x CPU OPT Fan2 x Chassis Fan
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
0.0000 kg
3.8500 kg
Graphics Ports
-
Additional Features
See Overview
Graphics
-
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
5GB LAN
RGB Lighting
Yes (RGB)
Specific References
EAN13
4718017488570
