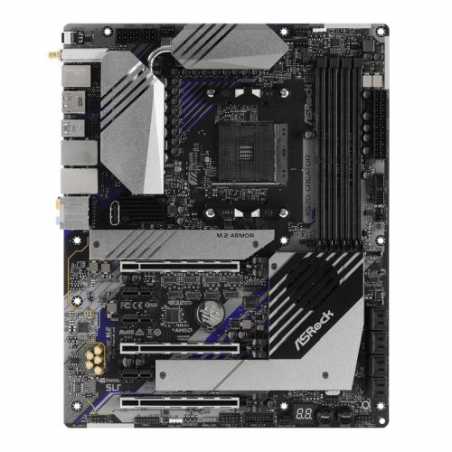

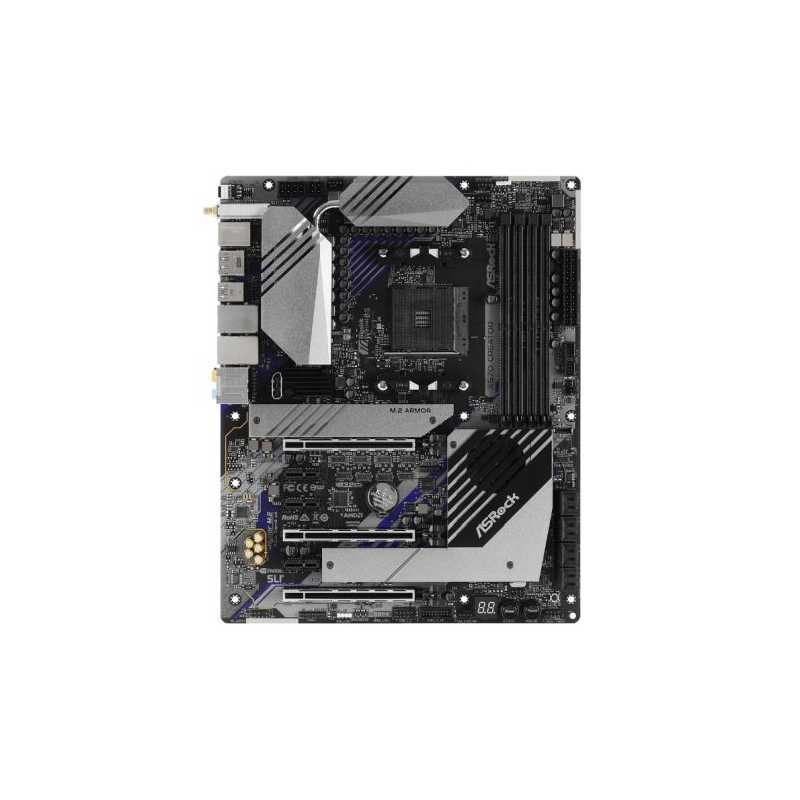

Asrock X570 CREATOR, AMD X570, AM4, ATX, 4 DDR4, HDMI, SLI/XFire, Wi-Fi, 10GB LAN, PCIe4, Thunderbolt 3, M.2
  • Asrock X570 CREATOR, AMD X570, AM4, ATX, 4 DDR4, HDMI, SLI/XFire, Wi-Fi, 10GB LAN, PCIe4, Thunderbolt 3, M.2

Asrock X570 CREATOR, AMD X570, AM4, ATX, 4 DDR4, HDMI, SLI/XFire, Wi-Fi, 10GB LAN, PCIe4, Thunderbolt 3, M.2

£577.62
Tax included
7 items
Delivered within 1-2 days
Quantity
In Stock

  • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
  • Supports DDR4 4666+ (OC)
  • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
  • AQUANTIA® 10G LAN, Intel® Gigabit LAN
  • 3 PCIe 4.0 x16, 3 PCIe 4.0 x1
  • NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • Supports Supports DTS Connect
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
  • 1 Front USB 3.2 Gen2 Type-C, 10 USB 3.2 Gen1 (4 Front, 6 Rear)
  • 2 Intel® Thunderbolt™ 3 Type-C


Motherboard Built For Content Creators!

Built with primo components and out edge technology, ASRock Creator series makes content creation easy and pleasure.





Revolutionary X570 Motherboards: Your PC Transformed

Style . More reliable. Design that delivers.





Thunderbolt 3 Technology

Thunderbolt™ 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderbolt™ 3 devices with a single wire, and even provides quick charging with 5V@3A (15W).

Just experience the world's fastest connectivity with Thunderbolt™ ready motherboards!





AQUANTIA® 10Gb/s BASE-T Ethernet

The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.





I4 Power Phase Design (IR Digital PWM)

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.





Dr. MOS

IR3555 Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal result and superior performance.





EBR Fan

The longer lifespan EBR bearing fan were used to ensure the best durability. Compares with normal sleeve bearing fan, EBR bearing fan has lifespan up to 50,000 hours, equivalent to 5.7 years of working under full speed.





Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock’s motherboard equipped with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.





Steel Slot with New-Gen PCI Express 4.0

The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.





Dual Hyper M.2 For SSD

Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.





Rule your Own Lighting Way - Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.





Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.





Super Alloy Motherboard

XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.


Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.


Premium Memory Alloy Choke
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.


Combo Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.


Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.


I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.


Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.


High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.


2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
ASROCK
X570 CREATOR
7 Items

Data sheet

.
1 x Front Audio1 x USB 2.02 x USB 3.2 Gen11 x Front Panel Type C USB 3.2 Gen21 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED1 x Clear CMOS Button
PCI Express
AMD Ryzen series CPUs (Matisse)3 x PCI Express 4.0 x16AMD Ryzen series CPUs (Pinnacle Ridge)3 x PCI Express x16AMD Ryzen series CPUs (Picasso)1 x PCI Express 3.0 x163 x PCI Express 2.0 x1
Wireless
Intel 802.11ax WiFi ModuleSupports IEEE 802.11a/b/g/n/axSupports Dual-Band (2.4/5 GHz)Supports WiFi6 802.11ax (2.4Gbps)2 antennas (2 Transmit & 2 Receive)Supports Bluetooth 5.0 + High speed class IISupports MU-MIMO
RAM Speeds
4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 MHz
Accessories
Quick Installation Guide, Support CD, I/O Shield4 x SATA Data Cables1 x ASRock SLI_HB_Bridge_2S Card1 x ASRock WiFi 2.4/5 GHz Antenna1 x Right Angle Mini DP to DPCable2 x Screws for M.2 Sockets2 x Standoffs for M.2 Sockets
USB Ports Supported
2 x USB 3.2 Gen2 Thunderbolt Type-C (at back)10 x USB 3.2 Gen1 (6 at back, 4 at mid-board)2 x USB 2.0 (at mid-board)1 x Front Panel Type C USB 3.2 Gen2 Header
Storage
8 x SATA III1 x M.2 (2260/2280/22110) - PCIe1 x M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
RAID
RAID 0, 1, 10
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
ATX
Socket
AMD AM4
Chipset
AMD X570
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
Supports AMD Quad CrossFireXSupports NVIDIA Quad SLISupports NVIDIA NVLink
LAN
10GB LAN & GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Back Panel I/O Ports
2 x Antenna1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.4 Input1 x Optical SPDIF Out2 x USB 3.2 Gen2 Thunderbolt6 x USB 3.2 Gen12 x RJ-45 LAN1 x BIOS Flashback ButtonHD Audio Jacks
Internal I/O Connectors
1 x DisplayPort 1.4 Input1 x SPI TPM1 x Power LED and Speaker1 x AMD Fan LED1 x RGB LED1 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x 4 pin 12V
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
2.4000 kg
Graphics Ports
1 x HDMI 1 x DisplayPort 1.4
Additional Features
See Overview
Graphics
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
M.2 Slot(s)
Yes
No. LAN Ports
2 x LAN
Max LAN Speed
10GB LAN
RGB Lighting
No
