- Out of stock

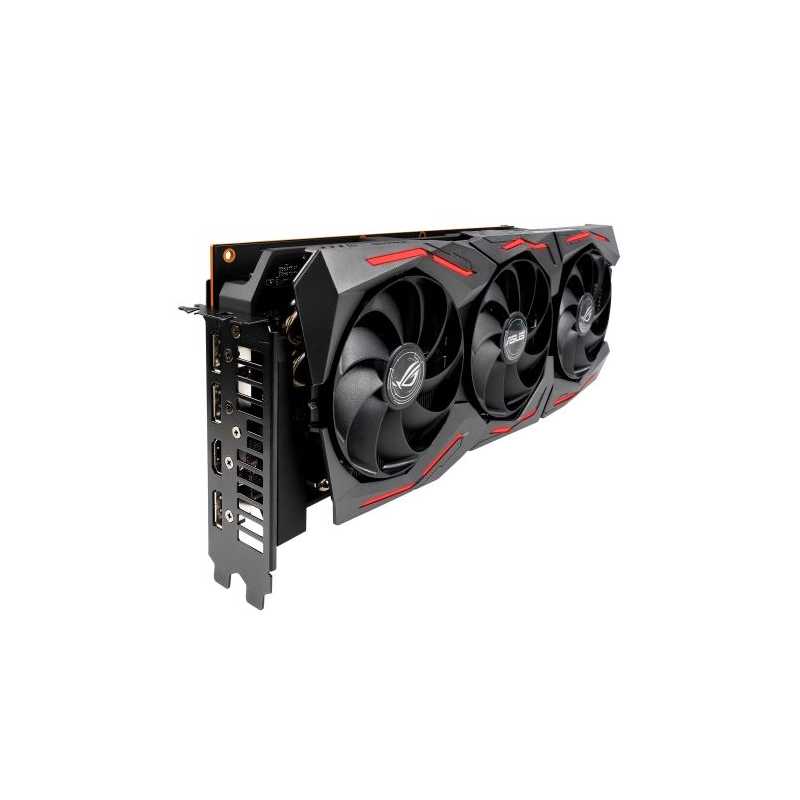

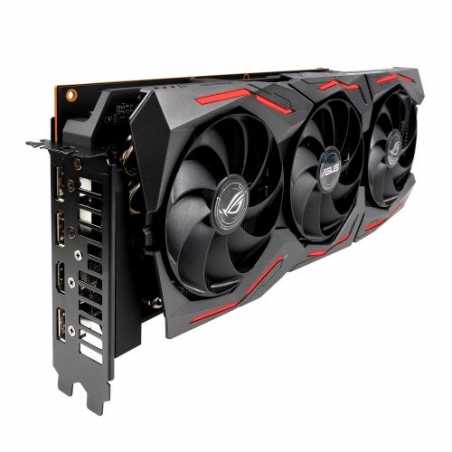

Asus ROG STRIX RX5700 XT OC, 8GB DDR6, PCIe4, HDMI, 3 DP, 2035MHz Clock, 0dB Tech, RGB Lighting, Overclocked
£516.38
VAT included
The ROG Strix Radeon™ RX 5700 XT OC edition 8GB GDDR6 dominates 1440p gaming.
- Boost Clock: ~2035MHz (OC Mode)/ ~2010Mhz (Gaming Mode)
- Axial-tech fan design features longer fan blades and a unique barrier ring to increase air pressure.
- 0dB Technology lets you enjoy light gaming in relative silence.
- 2.7-slot Design expands cooling surface area to make the most of the three powerful Axial-tech fans.
- Auto-Extreme Technology uses automation to enhance reliability.
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
- MaxContact Technology allows 2X more contact with the GPU chip for improved thermal transfer.
- A reinforced frame prevents excessive torsion and lateral bending of the PCB.
- ASUS FanConnect II equips 2 hybrid-controlled fan headers for optimal system cooling.
- Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Take Flight
1440p is the new sweet spot for mainstream gaming, and the ROG Strix Radeon™ RX 5700 XT is armed to dominate the category. Components on the surface of the PCB are precisely soldered with Auto-Extreme Technology and the GPU chip is cooled using MaxContact and a beefy heatsink. On top, three fans leverage our new Axial-tech design, which surpasses our own industry-leading fans from the last generation. In-between those layers are a myriad of additional features like 0dB mode, IP5X dust resistance, a reinforced frame, and more.
Cooling
Axial-tech Fan Design
Better, faster, stronger
Newly designed for the latest generation of top-end ROG graphics cards, these fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
Quiet intelligence
An advanced onboard controller brings fans to a standstill when the GPU core temperature is below 60 Celsius, letting you enjoy light gaming in relative silence. As temps rise past the threshold, the fans automatically start up again.
2.7-slot Design
Sink your heat into this
The ROG Strix RX 5700 XT leverages a 2.7-slot design to gain more heatsink surface area. The extra thermal headroom increases overclocking potential and allows fans to run at even lower speeds in light scenarios.
Dual Bios
Choose wisely
Do you prioritize low core temps or low noise levels? Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak II software.
Engineering
Auto−Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Super Alloy Power II
Premium power components
To deal with varying game and application workloads, the RDNA architecture can change speeds in an instant, necessitating a power delivery circuit with the reserves to handle the onslaught when you dial up the clock. The ROG Strix RX 5700 XT is armed with premium capacitors, DrMOS power stages, and alloy-core chokes are capable of pushing performance to the max.
MaxContact Technology
Stay close
MaxContact is an industry-first technology that utilizes precision machining to create a heat spreader surface that makes up to 2X more contact with the GPU chip, resulting in improved thermal transfer.
Reinforced Frame
Architecture FTW
A metal brace prevents excessive torsion and lateral bending of the PCB.
Experience
Aura Sync
Outshine the competition
The ROG Strix RX 5700 XT features Aura RGB lighting on both the shroud and backplate. Get Aura Sync software to connect your compatible products for a completely customized gaming setup. You can sync to music, change color based on temperature, or select from a large number of patterns and static options, so make sure to look out for the Aura Sync logo when you're picking parts for your build.
Stealth Mode
Be a ninja
Sometimes you just want to turn off all the lights… That's why we've outfitted your graphics card with a convenient stealth mode button. Give it a press and you'll instantly transform from a master of the color-verse into a stealthy ninja.
ASUS FanConnect II
Smarter fan speed
FanConnect II features two 4-pin, hybrid-controlled headers that can be connected to both PWM and DC system fans for optimal system cooling. Connected fans react to GPU and CPU temperatures, so that your system is optimally cooled no matter what you do. A comprehensive set of tuning options allow you to tweak fan speeds for your preferred balance of cooling and acoustics.
AMD Radeon FreeSync
Immersive Gaming Dynamics
Experience stutter-free, tear-free gaming with AMD Radeon FreeSync™1 and FreeSync™ 2 HDR2 technology, available on many ASUS monitors.
Software
GPU Tweak II
Monitor, tweak, and tune
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
XSplit
Premium streaming
XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!
wtfast
Play lag-free
We've partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you'll enjoy lower ping for a smoother, more fluid online gaming experience. Buy an ASUS graphics card - and don't be left waiting!
Quantumcloud
Profit from GPU power
Quantumcloud is a simple and secure service that lets you effortlessly earn extra money by putting your idle GPU to work. Through an easy-to-use app, your computer can help run cloud-based applications, making you money in the process. Earnings are automatically transferred to your WeChat or PayPal account, and your privacy remains intact because Quantumcloud doesn't collect your personal data. Get started making money today!
AMD Radeon™ Software Adrenalin 2019 Edition
Hardcore software
Radeon Software is a powerful hub that provides tools to customize in-game aesthetics, record gameplay, tweak performance, update drivers, and much more. The latest edition features Radeon™ Anti-Lag, a new technology that reduces input lag, effectively increasing the response time of the game and offering a significant competitive advantage in many titles.
90YV0D90-M0NA00
Data sheet
- Accessories
- 1 x Quick Guide1 x ROG Velcro Hook & Loop
- Warranty
- 3 Years
- Multi-GPU Support
- None
- Package Type
- Retail
- Package Weight
- 2.0000 kg
- Dimensions
- 30.5 x 13 x 5.4 cm
- Resolution
- Digital Max Resolution: 7680 x 4320
- Interface
- PCI Express 4.0 (backwards compatible with 3.0)
- Features
- See Overview
- Chipset Manufacturer
- AMD
- Graphics Chipset
- AMD RX 5700 XT
- Memory Size
- 8GB
- Memory Type
- DDR6
- Memory Interface
- 256-bit
- Core Clock
- OC ModeBase clock: 1840 MHzGame clock: Up to 1965 MHzBoost clock: 2035 MHzGaming ModeBase clock: 1770 MHzGame clock: Up to 1905 MHzBoost clock: 2010 MHz
- CUDA Cores / Stream Processors
- 2560 Stream Processors
- Outputs
- 1 x HDMI 2.0b3 x DisplayPort 1.4
- HDCP Support
- Yes
- Cooling
- Axial-tech fan design0dB TechnologyASUS FanConnect IIMaxContact Technology
- PSU Requirements
- 600W or greater recommended
- Slot Size
- 2.7 Slots
- Connectors Required
- 2 x 8-pin PCIe power
- Memory Clock
- 14 Gbps
- Max Display Support
- 6
- Bundled Software
- ASUS GPU Tweak II & Driver
- DisplayPort
- Yes
Yes (DisplayPort) - HDMI
- Yes
Yes (HDMI) - Lighting Effects
- Yes
Specific References
- EAN13
- 4718017450980
