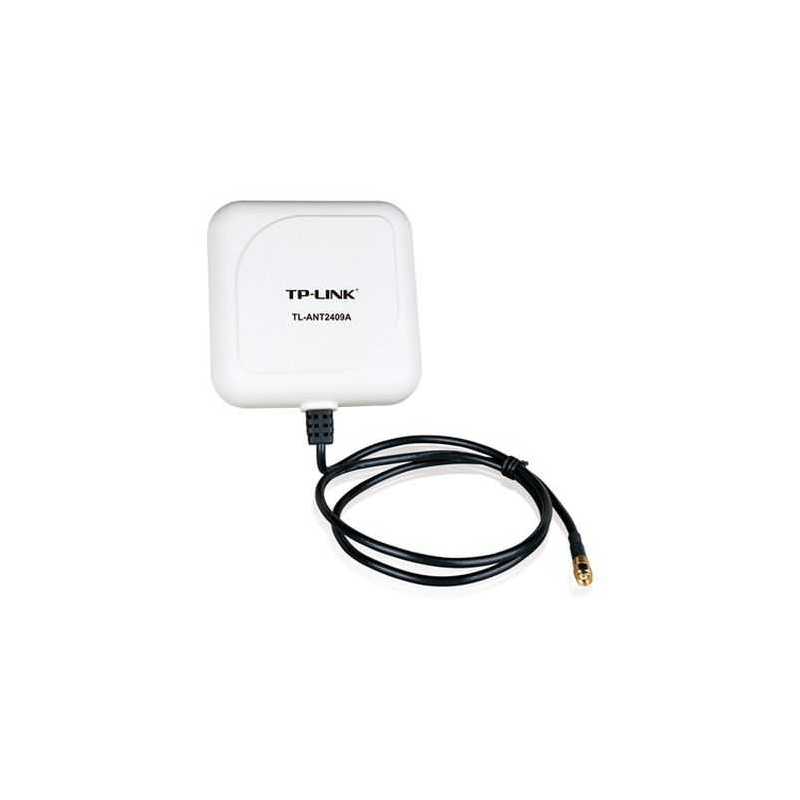

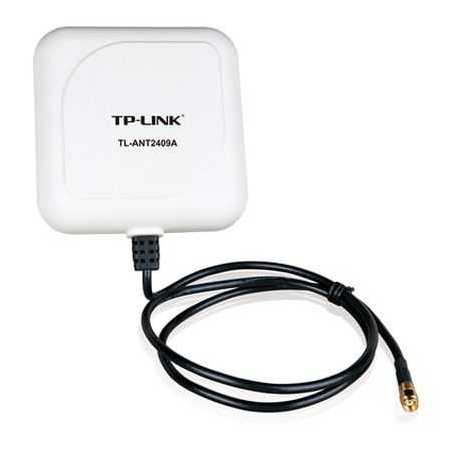

TP-LINK 2.4GHz, 9dBi Outdoor Directional Panel Antenna, 1M, RP-SMA Connector

£22.74
Tax included
0 items

Highlights:

  • 9dBi directional operation provides extended point to point connection or indoor and outdoor area coverage
  • Features 100cm CFD-200 low loss cable for flexible deployment
  • RP-SMA Female connector, works with most of access points / wireless routers
  • Provides easy installation mounting kits


What This Product Does
Directional Antenna TL-ANT2409A operates in the 2.4GHz band and provides 9dBi directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the RP-SMA female connector guaranteeing wider compatibility with most of the wireless equipments.

Enjoy the benefits of wireless connectivity at greater distances and throughput throughout your indoor wireless zone. No configuration or installation software required .


Easy To Use
Installation of the TL-ANT2409A is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.

Description

Specification

  • Application: Outdoor
  • Mounting: Pole Mount/Wall Mount
  • Gain: 9 dBi
  • Frequency: 2.4GHz
  • VSWR(MAX.): 1.5:1
  • HPBW/H: 60 degrees
  • HPBW/V: 76 degrees
  • Polarization: "Linear, Vertical"
  • Connector Type: RP-SMA Female
  • Extended Cable/Length: "CFD-200 ; 100cm"
  • Approx. Range at 1/11/54Mbps: 1.77km/1km/140m
  • Operating Temp. (℃): -20 ~ +65
  • Storage Temp. (℃): -30 ~ +75
  • Package Contents: 9dBi Panel Directional Antenna
    Installation mounting kits
    User Guide
  • Package Type: Retail
  • Package Weight: 0.4900 kg
  • Warranty: 3 Years
TP-LINK
TL-ANT2409A

Specific References

EAN13
6935364052034
