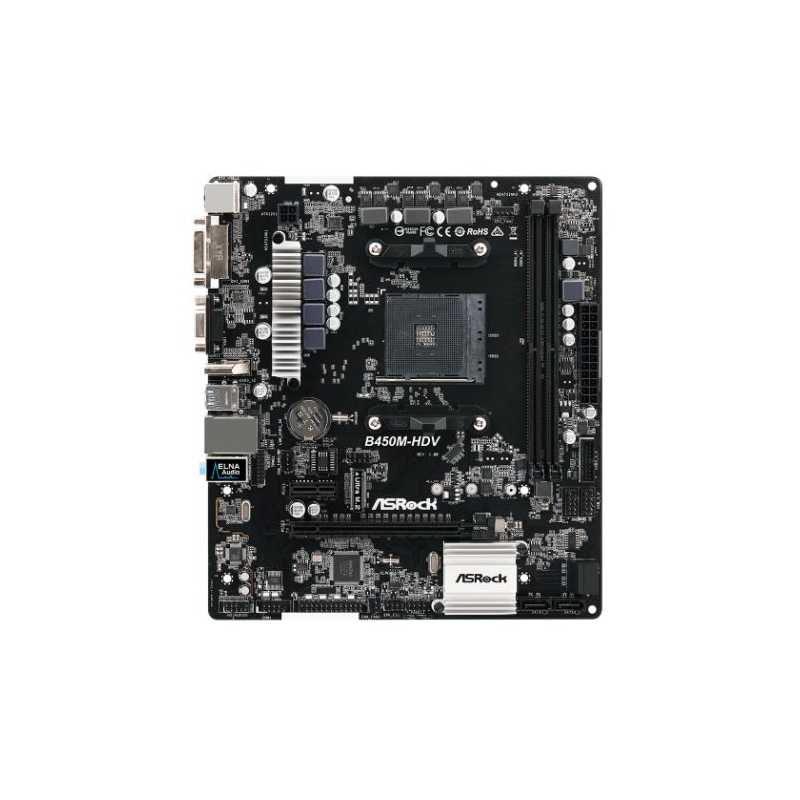

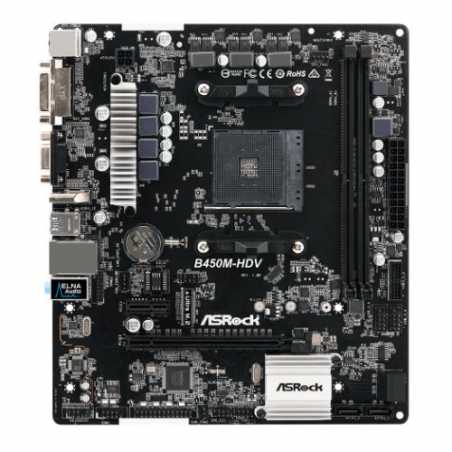

Asrock B450M-HDV, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2, R.40
  • Asrock B450M-HDV, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2, R.40

Asrock B450M-HDV, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2, R.40

Tax included
0 items
Out Of Stock

  • AMD AM4 Socket
  • Supports DDR4 3200+ (OC)
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • Graphics Output: HDMI, DVI-D, D-Sub
  • Supports Triple Monitor
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
*Supported with processors with integrated graphics only.
4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.
*Supported with A-Series APUs only.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Digi Power
This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Data sheet

PCI Express
Ryzen CPUs (Summit & Pinnacle Ridge):1 x PCIe 3.0 x16Ryzen CPUs (Raven Ridge):1 x PCIe 3.0 x161 x PCIe 2.0 x1
RAM Speeds
3200+(OC)/2933/2667/2400/2133 MHz
Quick Installation GuideSupport CDI/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket
USB Ports Supported
6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
4 x SATA III1 x Ultra M.2 2242/2260/2280 - SATA & PCIe
RAID 0, 1, 10
3 Year Replacement Warranty
Motherboard Type
Form Factor
Micro ATX
AMD B450
DDR Type
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
Multi-GPU Support
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard1 x D-Sub1 x DVI-D1 x HDMI2 x USB 2.04 x USB 3.1 Gen11 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x Print Port1 x COM Port1 x TPM1 x Chassis Intrusion and Speaker1 x CPU Fan1 x Chassis Fan1 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 4 pin 12V1 x Front Audio2 x USB 2.01 x USB 3.1 Gen1
CPU Support
Click here for CPU support
Package Type
Package Weight
0.8000 kg
Graphics Ports
1 x VGA1 x DVI-D1 x HDMI
Additional Features
See Overview
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
M.2 Slot(s)
No. LAN Ports
1 x LAN
Max LAN Speed
RGB Lighting
