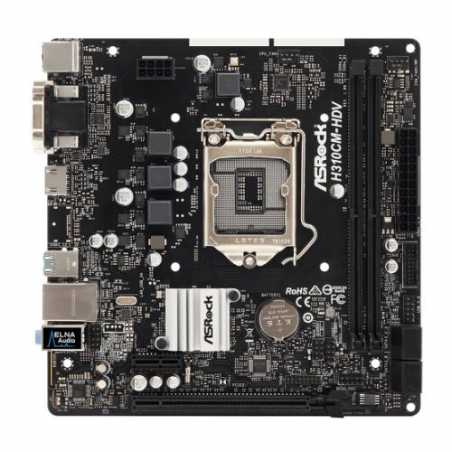

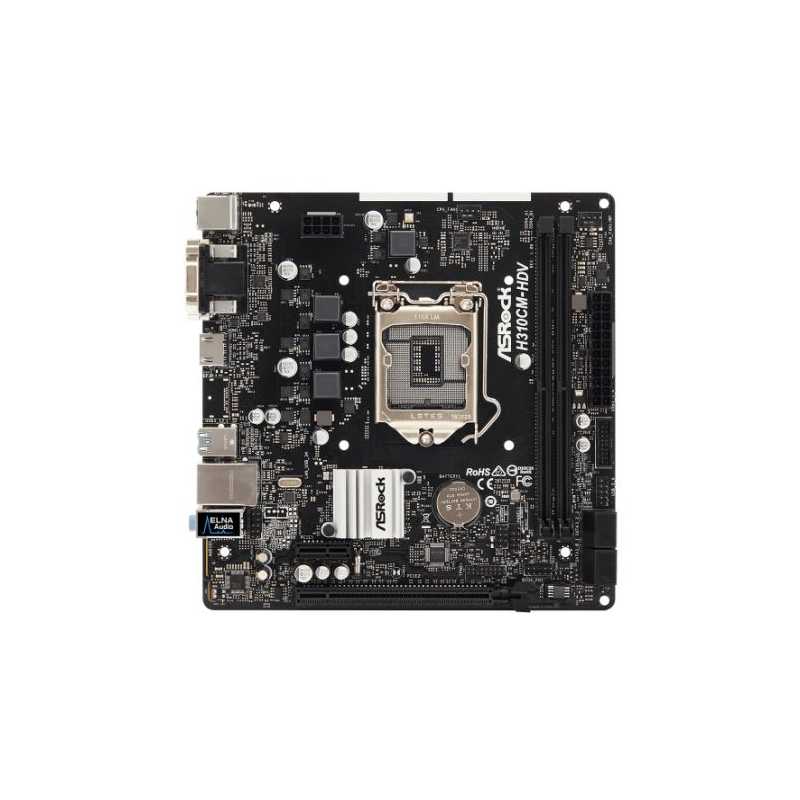

Asrock H310CM-HDV, Intel H310, 1151, Micro ATX, DDR4, VGA, DVI, HDMI
  • Asrock H310CM-HDV, Intel H310, 1151, Micro ATX, DDR4, VGA, DVI, HDMI
  • Asrock H310CM-HDV, Intel H310, 1151, Micro ATX, DDR4, VGA, DVI, HDMI
  • Asrock H310CM-HDV, Intel H310, 1151, Micro ATX, DDR4, VGA, DVI, HDMI
  • Asrock H310CM-HDV, Intel H310, 1151, Micro ATX, DDR4, VGA, DVI, HDMI

Asrock H310CM-HDV, Intel H310, 1151, Micro ATX, DDR4, VGA, DVI, HDMI

£57.77
Tax included
75 items
Delivered within 1-2 days
  • Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • Graphics Output Options: DVI-D, D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop


HEVC 10-bit Decoding/Encoding

Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.




Super Alloy Motherboard

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.




4K x 2K

Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.





3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.




Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.




ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.




Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.




A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.




Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.




Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Quantity
In Stock

  • Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • Graphics Output Options: DVI-D, D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop


HEVC 10-bit Decoding/Encoding

Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.




Super Alloy Motherboard

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.




4K x 2K

Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.





3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.




Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.




ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.




Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.




A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.




Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.




Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
ASROCK
H310CM-HDV
75 Items

Data sheet

PCI Express
1 x PCIe 3.0 x161 x PCIe 2.0 x1
Wireless
-
RAM Speeds
2666 / 2400 / 2133 MHz
Accessories
Quick Installation GuideSupport CD, I/O Shield2 x SATA Data Cables
USB Ports Supported
4 x USB 3.1 Gen1 (2 Front, 2 Rear)6 x USB 2.0 (2 Front, 4 Rear)
Storage
4 x SATA III
RAID
-
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
1151 - Coffee Lake
Intel 1151 - Coffee Lake
Chipset
Intel H310
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
32GB
Multi-GPU Support
-
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard1 x D-Sub1 x DVI-D1 x HDMI4 x USB 2.02 x USB 3.1 Gen11 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x TPM1 x Chassis Intrusion and Speaker1 x CPU Fan1 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x USB 2.01 x USB 3.1 Gen1
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
0.7200 kg
Graphics Ports
1 x VGA1 x DVI-D1 x HDMI
Additional Features
See Overview
Graphics
Supports Intel UHD Graphics
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
No
