Be Quiet! BK020 Dark Rock TF Heatsink & Fan, Intel & AMD Sockets, Dual Silent Wings Fans, Fluid Dynamic
£91.70
VAT included

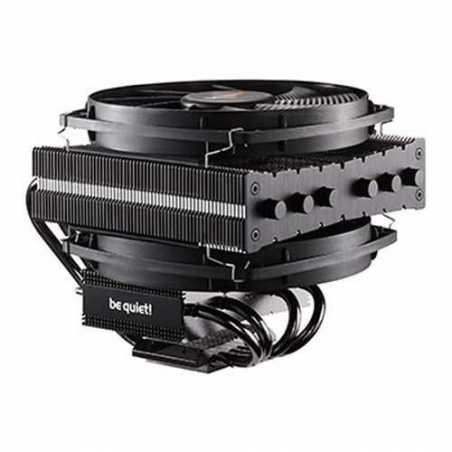

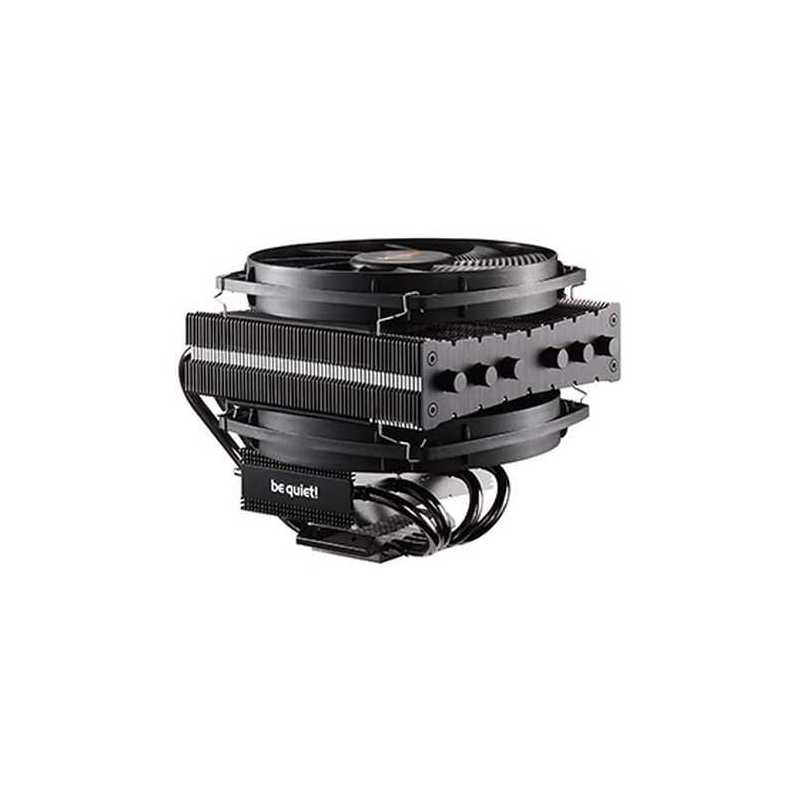

Be Quiet! Dark Rock TF Heatsink & Fan
No Compromise Silence and Performance
Compact PCs pose significant design challenges, not least of which is how to quietly cool a high-performance, overclocked CPU in a cramped space. be quiet!’s Dark Rock TF offers a solution to this challenge.
This top-flow cooler with two powerful heat sinks is an extension of the well-established successful be quiet! product series Dark Rock and a compact cooling beast. It is designed to bring the famous be quiet! silent technology into your PC. With the best performance-to-noise ratio available in the compact cooler category, it strikes the perfect balance between cooling and serenity with absolutely no compromise in silence and performance.
Extreme Cooling Performance
• Extremely high cooling capacity of 220W TDP supports even overclocked CPUs in compact PCs
• Two powerful nickel-plated aluminum heat sinks
• Six high-performance 6mm heat pipes with aluminum caps carry heat to the optimal location on the cooling fins
• Top-flow layout enables ideal cooling not only for the CPU but also for surrounding components
Virtually Inaudible Operation
• Two SilentWings® 135mm PWM fans featuring:
- advanced fluid-dynamic bearing with copper core
- advanced six-pole motor for smoother operation and less turbulence
- nine airflow-optimized fan blades
- dynamically-balanced impeller
• Noise is a scant 26.7dB(A) even at 100% PWM function
• Single fan assembly and operation also supported, offering further space savings and even quieter operations
• Anti-vibration rubber inserts on the heat sink cooling fins further dampen noise
Product Conception, Design and Quality Control in Germany
• Dark nickel-plated finish with brushed aluminum covers
• Compatibility with all current Intel® and AMD™ sockets
• 3-years manufacturer’s warranty
• Quick support is available via our inter
Be Quiet! Dark Rock TF Heatsink & Fan
No Compromise Silence and Performance
Compact PCs pose significant design challenges, not least of which is how to quietly cool a high-performance, overclocked CPU in a cramped space. be quiet!’s Dark Rock TF offers a solution to this challenge.
This top-flow cooler with two powerful heat sinks is an extension of the well-established successful be quiet! product series Dark Rock and a compact cooling beast. It is designed to bring the famous be quiet! silent technology into your PC. With the best performance-to-noise ratio available in the compact cooler category, it strikes the perfect balance between cooling and serenity with absolutely no compromise in silence and performance.
Extreme Cooling Performance
• Extremely high cooling capacity of 220W TDP supports even overclocked CPUs in compact PCs
• Two powerful nickel-plated aluminum heat sinks
• Six high-performance 6mm heat pipes with aluminum caps carry heat to the optimal location on the cooling fins
• Top-flow layout enables ideal cooling not only for the CPU but also for surrounding components
Virtually Inaudible Operation
• Two SilentWings® 135mm PWM fans featuring:
- advanced fluid-dynamic bearing with copper core
- advanced six-pole motor for smoother operation and less turbulence
- nine airflow-optimized fan blades
- dynamically-balanced impeller
• Noise is a scant 26.7dB(A) even at 100% PWM function
• Single fan assembly and operation also supported, offering further space savings and even quieter operations
• Anti-vibration rubber inserts on the heat sink cooling fins further dampen noise
Product Conception, Design and Quality Control in Germany
• Dark nickel-plated finish with brushed aluminum covers
• Compatibility with all current Intel® and AMD™ sockets
• 3-years manufacturer’s warranty
• Quick support is available via our inter
BK020
Data sheet
- Power
- Input: 2.4W
- Warranty
- 3 Years
- Package Type
- Retail
- Package Weight
- 1.5900 kg
- Additional Features
- See Overview
- Type
- Heatsink and Fan
- Colour
- Black
- Material
- Fin material: AluminumBase material: CopperCPU contact surface: CNC machined
- Compatibility
- Intel: 775 / 115x / 1366 / LGA2011(-3) Square ILM / 2066AMD: AM2(+) / AM3 (+) / AM4 / FM1 / FM2(+)
- Fan Connector(s)
- 4-pin
- AMD/Intel
- Combo
- Weight
- 0.81 kg
- TDP
- 220 W
- Fan Dimensions
- 135 x 135 x 22 mm
- LED Lighting
- No
- Heatsink Dimensions (LxWxH)
- 162.6 x 140 x 108.8 mm
- Fan Controller
- PWM
- Rotation Speed
- 1400 RPM (@ 100% PWM)
- Fan Bearing
- Fluid Dynamic Bearing
- Air Flow
- 67.8cfm / 113.8m3/h (@ 12V)
- Noise level
- 11.9 / 19.3 / 26.7 dB(A)
- MTBF
- 300,000 hours
- 775 Socket
- Supports Socket 775
- 115x Sockets
- Supports Sockets 115x
- 2066 Socket
- Supports Socket 2066
- 2011(-3) Socket
- Supports Socket 2011(-3)
- 1366 Socket
- Supports Socket 1366
- AM4 Socket
- Supports Socket AM4
- AM3(+) Socket
- Supports Socket AM3(+)
- AM2(+) Socket
- Supports Socket AM2(+)
- FM2(+) Socket
- Supports Socket FM2(+)
- FM1 Socket
- Supports Socket FM1
Specific References
- EAN13
- 4260052184233
