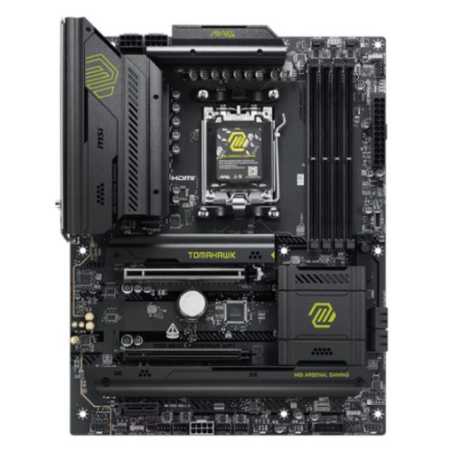

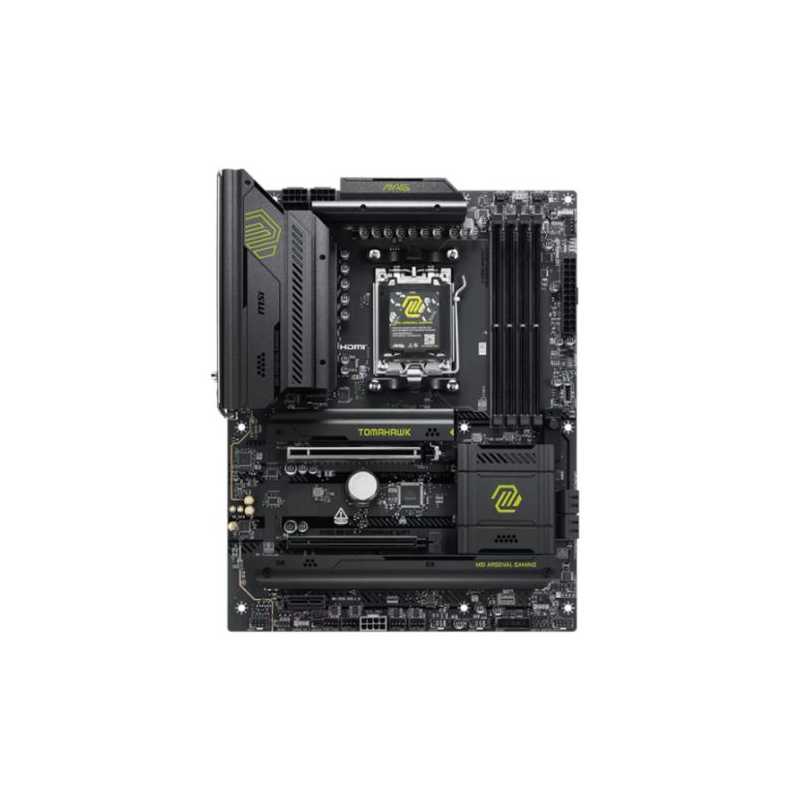

MSI MAG B850 TOMAHAWK WIFI, AMD B850, AM5, ATX, 4 DDR5, HDMI, Wi-Fi 7, 5G LAN, 3x M.2
£225.86
VAT included
Delivered within 1-2 days.
MAG B850 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
MAG Series
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
Ready for AI PC
A larger BIOS ROM capacity allows the motherboard to support next-level CPU upgrades with better compatibility.
OC Engine
With the clock generator, the OC Engine technology releases the maximum power of CPU.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Triple M.2 Connectors
Onboard 3x M.2 connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 160MHz channel, achieving a maximum transmission speed of 2.9Gbps.
Audio Boost 5
Isolated audio with a high quality audio processor for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
64MB BIOS
A larger BIOS ROM capacity allows the motherboard to support next-level CPU upgrades with better compatibility.
OC Engine
With the clock generator, the OC Engine technology releases the maximum power of CPU.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Triple M.2 Connectors
Onboard 3x M.2 connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 160MHz channel, achieving a maximum transmission speed of 2.9Gbps.
Audio Boost 5
Isolated audio with a high quality audio processor for the most immersive gaming experience
MAG B850 TOMAHAWK WIFI
178 Items
Data sheet
- .
- 1 x RGB LED1 x TPM pin TPM 2.02 x Direct OC Jumper4 x USB 2.02 x USB 5Gbps Type-A1 x USB 10Gbps Type-C
- Wireless
- Wi-Fi 7 SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4, MLO, 4KQAM
- RAM Speeds
- Up to 8200+MT/s (OC)
- USB Ports Supported
- Rear:1 x USB 20Gbps Type-C1 x USB 10Gbps Type-C 2 x USB 10Gbps Type-A2 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 10Gbps Type-C2 x USB 5Gbps Type-A4 x USB 2.0
- Storage
- 4 x SATA III3 x M.2Ryzen 9000 & 7000 Series CPUs:M.2_1 (2280/2260) - PCIe 5.0 x4M.2_2 (22110/2280/2260) - PCIe 4.0 x4Ryzen 8000 Series CPUs:M.2_1 (2280/2260) - PCIe 5.0 x4M.2_2 (22110/2280/2260) - PCIe 4.0 x4/x2Chipset:M.2_3 (2280/2260) - PCIe 4.0 x4
- RAID
- Supports RAID 0 and 1 for M.2 NVMe storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD B850
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports Non-ECC, Un-buffered memorySupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOSupports CUDIMM, Clock Driver bypass mode only
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 5GB LAN
- Audio
- Realtek ALC4080 Codec7.1-Channel USB High Performance Audio
- Back Panel I/O Ports
- 1 x USB 20Gbps Type-C1 x USB 10Gbps Type-C 2 x USB 10Gbps Type-A2 x USB 5Gbps Type-A4 x USB 2.01 x HDMI 2.11 x RJ-451 x Audio Line Out1 x Microphone In1 x S/PDIF Optical Out2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)2 x Power (CPU_PWR)1 x Power (PCIE_PWR 8pin)1 x CPU Fan1 x Combo Fan (Pump_Sys Fan)6 x System Fan1 x EZ Conn-header (JAF_2)2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Tuning Controller (JDASH)3 x Addressable V2 RGB LED
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x161 x PCIe 3.0 x1*Specifications may vary between CPU types
- Wi-Fi
- Yes (Wi-Fi)
