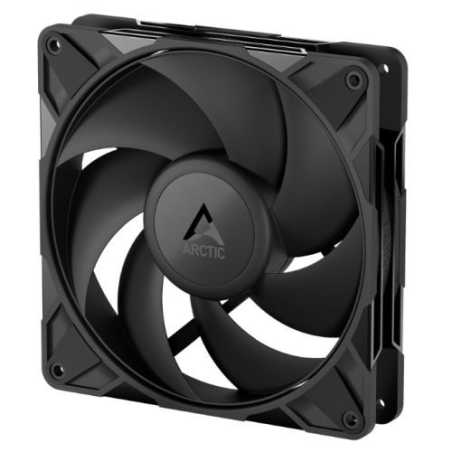

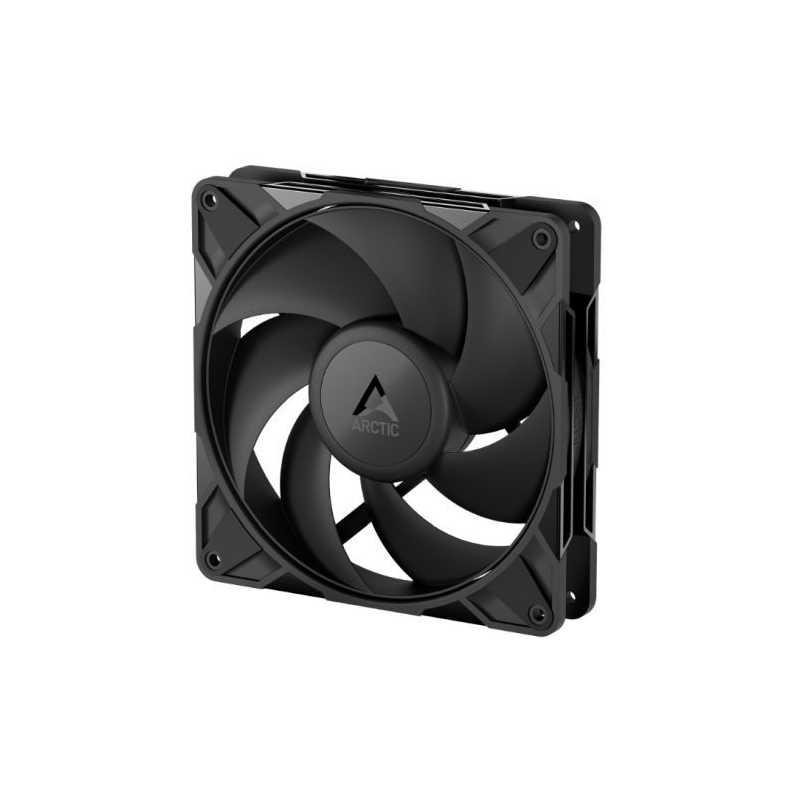

ARCTIC P14 Pro PST CO 14cm PWM Case Fan w/ Cable Splitter for Continuous Operation, Dual Ball Bearing, 400-2500 RPM, Black
£12.17
VAT included
Delivered within 1-2 days.
P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation
- Fan Speed: 400-2500 rpm (PWM controlled), 0 rpm below 5% PWM
- Airflow:1107 cfm | 186 m3/h
- Static Pressure: 5.2 mmH2O
- Fan Bearing: Dual Ball Bearing
- Cable Length: 400 mm + 80 mm Daisy-Chain Cable
- Connector: 4-Pin Fan Plug + 4-Pin Socket
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (DBB)
A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.
Automated Two-Plane Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power - Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) - ideal for quiet, powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
6-Year Warranty - Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn't just a promise - it's a testament to our confidence in their durability.
ACFAN00316A
33 Items
Data sheet
- Power
- Typical Voltage: 12 V DCStarting Voltage: 5 V DCCurrent: 0.35 A
- Warranty
- 6 Years
- Package Type
- Retail
- Package Weight
- 0.2880 kg
- Additional Features
- Designed for for Continuous OperationRevised Fan Blade DesignOptimized Bearing-Shaft DesignAutomated Two-Plane BalancingSOTA MicrocontrollerMinimum Gap Dimensions for Maximum EfficiencyPST – PWM-Based Synchronized Fan ControlStatic Pressure: 5.2 mmH2O
- Dimensions
- 140 x 140 x 27 mmCable Length: 400 mm + 80 mm Daisy-Chain Cable
- Type
- 140mm Case Fan
- Colour
- Black
- Fan Connector(s)
- 4-pin
- Weight
- 185 g
- LED Lighting
- -
- Fan Controller
- PWM
- Rotation Speed
- 400 - 2500 RPM0 RPM below 5% PWM
- Fan Bearing
- Dual Ball Bearing
- Air Flow
- 110 cfm
- Max RPM
- 2500 RPM
