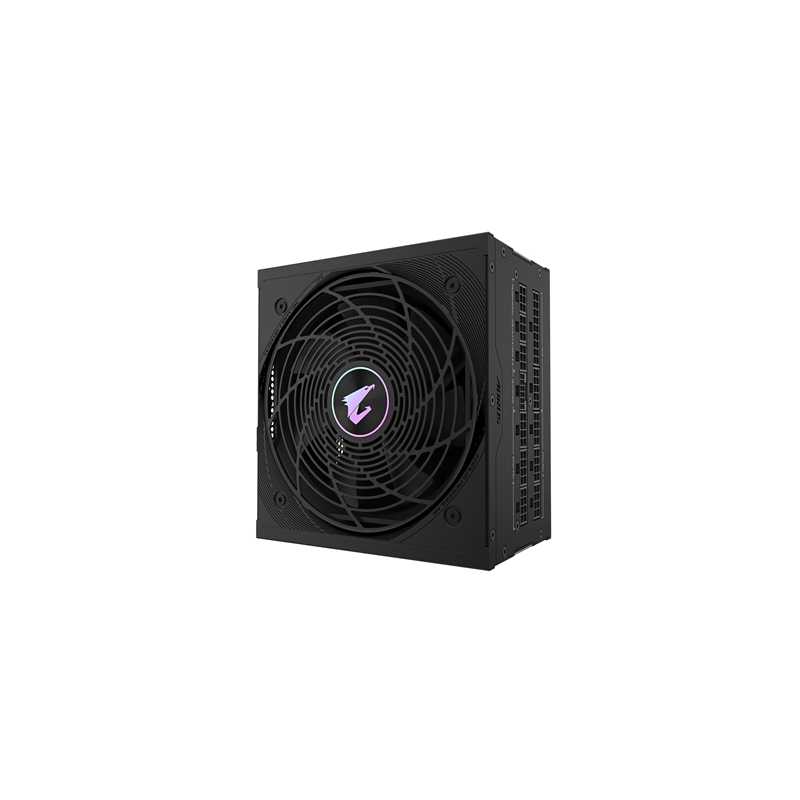

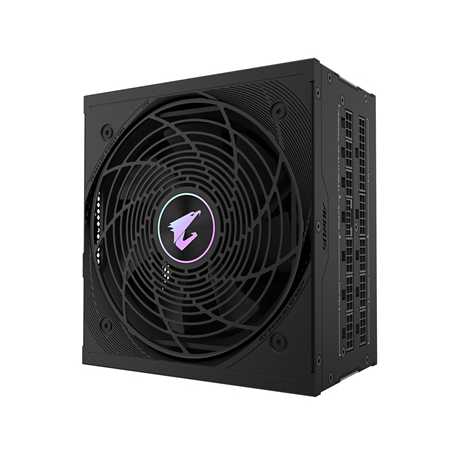

Gigabyte AORUS ELITE 850W PSU - Fully Modular, 80 PLUS Platinum, ATX 3.1, PCIe 5.0 Ready, 12VHPWR, Silent 120mm FDB Fan, 10-Year

The Gigabyte AORUS ELITE 850W (GP-AE850PM PG5) is a high-end fully modular power supply designed for modern builds and ready for future platforms. Certified 80 PLUS Platinum, it supports ATX 3.1 and PCIe Gen 5.0/5.1 (native 12VHPWR connector), while delivering reliable performance with 100% Japanese capacitors, advanced protection features, and a 10-year warranty.

Key Features
ATX 3.1 compliant and ready for PCIe Gen 5.0/5.1, offering seamless compatibility with latest GPUs, including native 12VHPWR support for up to 600W delivery
80 PLUS Platinum efficiency, delivering ~92% efficiency at 50% load to minimize heat and reduce power consumption
100% Japanese capacitors for extended lifespan and voltage stability
120 mm Smart FDB (Fluid Dynamic Bearing) fan with zero-RPM mode under low load for low-noise cooling and long life
Compact 140 mm length ensures compatibility with tight-case layouts
Fully modular flat black cables simplify cable management and airflow optimization
Single powerful +12 V rail design for stable power delivery during load spikes
Comprehensive safety protections: OCP, OVP, UVP, OPP, OTP, SCP
Swappable AORUS magnetic badge plate for aesthetic customization

Full Specification

Model / MPN:
Gigabyte AORUS ELITE 850W (GP-AE850PM PG5)

Form Factor:
ATX

Compliance:
ATX 3.1, PCIe Gen 5.0 / 5.1

Power Output:
850W continuous

Efficiency Certification:
80 PLUS Platinum (~92% efficiency at 50% load)

Input Voltage:
100–240V AC

Input Frequency:
50Hz–60Hz

Fan Type:
120 mm Smart FDB (Fluid Dynamic Bearing), semi-passive

Modularity:
Fully modular

12V Rail:
Single +12V rail (70.8A)

Protections:
OCP, OVP, UVP, OPP, OTP, SCP

Connectors:
1 x 24-pin ATX
2 x 4+4-pin EPS
4 x 6+2-pin PCIe
1 x 12VHPWR (600W rated)
8 x SATA
3 x Molex (4-pin)

Dimensions:
140 mm (L) x 150 mm (W) x 86 mm (H)

Cable Type:
Flat black modular cables

MTBF:

100,000 hours

Certifications:
CE, FCC, RCM, EAC, cTUVus, CB, UKCA

Warranty:
10 years
