be quiet! System Power 11 750W is ATX 3.1 compliant and PCIe 5.1 compatible, 5-year manufacturer's warranty
£67.95
VAT included
Delivered within 1-2 days.

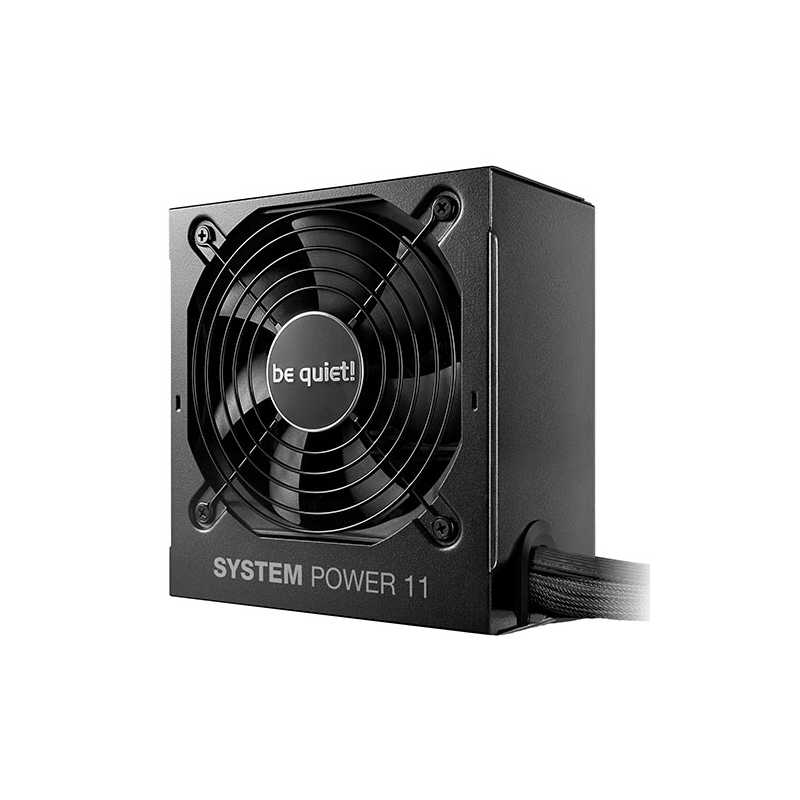

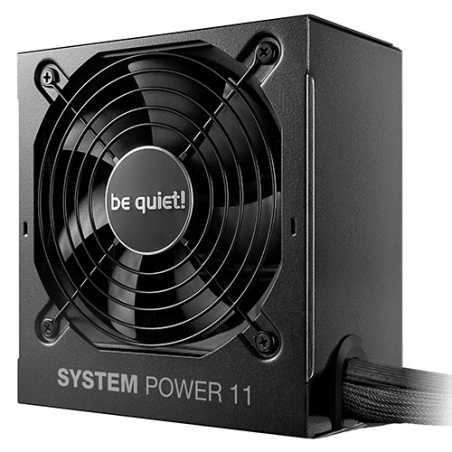

SYSTEM POWER 11 750W
Proven Reliability, Quiet Operation System Power 11 is the ATX 3.1 PSU for value-oriented PC builders that do not want to pass on reliability and quietness.
Highlights
ATX 3.1 PSU with support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Temperature-controlled 120mm quality fan reduces system noise
Rock-solid stability with a strong 12V-rail
Tight voltage regulation using DC-to-DC technology
Up to one PCIe 5.1 12V-2x6 600W and up to 3 PCIe 6-2 connectors for high-end GPUs
Dependable operation to support powerful GPUs
Stand-by drain of less than 0.15 watts
80 PLUS Bronze efficiency (up to 90.0 %)
5-year manufacturer’s warranty
Product conception, design and quality control in Germany
General
Model
System Power 11 750 W
Continuous power (W)
750
Peak power (W)
No
Form factor
Version 3.1
Form factor EPS 12V
Version 2.92
Topology
Double forward + DC-DC
Digitally controlled
No
Voltage (Vac)
200 - 240
Frequency (Hz)
50
Input current (A)
5
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.1
Average life time (h / 25°C)
>100,000
Operating temperature up to (°C)
40
Efficiency
80 PLUS certification
Efficiency (%) at 230V, 2% load65.5 Bronze
Efficiency (%) at 230V, 10% load 85.0 Bronze
Efficiency (%) at 230V, 20% load 89.1 Bronze
Efficiency (%) at 230V, 50% load 90.0 Bronze
Efficiency (%) at 230V, 100% load 86.6 Bronze
Fan and cooling technology
Cybenetics Noise Rating
No
Fan
Silence-optimized be quiet! fan
Fan size (mm)
120
Bearing technology
Rifle
Motor technology
4-pole fan motor
Max. fan speed (rpm)
2100
dB(A) at 10% load
10.5
dB(A) at 20% load
10.5
dB(A) at 50% load
12.3
dB(A) at 100% load
33.4
Output
Multi-rail operation (12V rails)
No
12V single rail operation
Yes
Overclocking key
No
+3.3V (A)
20
+5V (A)
20
+12V1 (A)
62.5
+12V2 (A)
no
+12V3 (A)
No
+12V4 (A)
No
+12V5 (A)
No
+12V6 (A)
No
-12V (A)
0.3
+5Vsb (A)
3
Max. combined power 12V (W)
750
Max. combined power 12V-2x6 (W)
600
Max. combined power 3.3V + 5V (W)
120
Hold-up time at 100% load (ms)
17.34
Hold-up time at 80% load (ms)
21.50
Power good signal (ms)
100 - 150
Cables and connectors
Modular cables
No
Sleeved cables
P24
Flat cables
P4+4, P4, PCIe, drives
Maximum cable length (cm)
55
Cable length to motherboard (cm)
81
No. of cables
8
ATX-Motherboard (20+4-pin)
1
P4+4 (CPU)
1
P8 (CPU)
No
P4 (CPU)
1
12V-2x6 cables
1
PCI-e 6+2-pin (GPU)
2
PCI-e 6-pin (GPU)
No
SATA
6
PATA
1
FDD (Floppy)
No
Protection
OTP (over temperature protection)
Yes
OCP (over current protection)
Yes
OPP (over power protection)
Yes
SCP (short circuit protection)
yes
OVP (over Voltage protection)
Yes
UVP (under Voltage protection)
Yes
SIP (Surge & Inrush protection)
Yes
Safety certification
BSMI
No
CB
No
CCC
No
CE
Yes
cRUus
No
cTUVus
No
CU
Yes
FCC
No
RCM
No
TÜV
Yes
UKCA
Yes
IRAM
No
Environmental directives
Energy Star
8.0
ErP
Yes
WEEE
Yes
RoHS
Yes
Triman
No
Scope of delivery
Thumb screws
No
Screws
Yes
Cable ties
Yes
Velcro cable ties
No
User manual languages
No
OCK slot bracket with switch / OCK jumper
No
SFX-to-ATX adapter bracket
No
Casing
Dimensions without cable (L x W x H), (mm)
86 x 150 x 140
Weight (kg)
2.04
Color
Black
Logistics data and RRP
Dimensions, package (L x W x H), (mm)
268 x 195 x 97
Gross weight, package (kg)
2.4
Pieces per packaging unit
6
Dimensions, shipping box (L x W x H), (mm)
556 x 311 x 218
Gross weight, shipping box (kg)
15.6
Service
Warranty (Years)
5
Proven Reliability, Quiet Operation System Power 11 is the ATX 3.1 PSU for value-oriented PC builders that do not want to pass on reliability and quietness.
Highlights
ATX 3.1 PSU with support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Temperature-controlled 120mm quality fan reduces system noise
Rock-solid stability with a strong 12V-rail
Tight voltage regulation using DC-to-DC technology
Up to one PCIe 5.1 12V-2x6 600W and up to 3 PCIe 6-2 connectors for high-end GPUs
Dependable operation to support powerful GPUs
Stand-by drain of less than 0.15 watts
80 PLUS Bronze efficiency (up to 90.0 %)
5-year manufacturer’s warranty
Product conception, design and quality control in Germany
General
Model
System Power 11 750 W
Continuous power (W)
750
Peak power (W)
No
Form factor
Version 3.1
Form factor EPS 12V
Version 2.92
Topology
Double forward + DC-DC
Digitally controlled
No
Voltage (Vac)
200 - 240
Frequency (Hz)
50
Input current (A)
5
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.1
Average life time (h / 25°C)
>100,000
Operating temperature up to (°C)
40
Efficiency
80 PLUS certification
Efficiency (%) at 230V, 2% load65.5 Bronze
Efficiency (%) at 230V, 10% load 85.0 Bronze
Efficiency (%) at 230V, 20% load 89.1 Bronze
Efficiency (%) at 230V, 50% load 90.0 Bronze
Efficiency (%) at 230V, 100% load 86.6 Bronze
Fan and cooling technology
Cybenetics Noise Rating
No
Fan
Silence-optimized be quiet! fan
Fan size (mm)
120
Bearing technology
Rifle
Motor technology
4-pole fan motor
Max. fan speed (rpm)
2100
dB(A) at 10% load
10.5
dB(A) at 20% load
10.5
dB(A) at 50% load
12.3
dB(A) at 100% load
33.4
Output
Multi-rail operation (12V rails)
No
12V single rail operation
Yes
Overclocking key
No
+3.3V (A)
20
+5V (A)
20
+12V1 (A)
62.5
+12V2 (A)
no
+12V3 (A)
No
+12V4 (A)
No
+12V5 (A)
No
+12V6 (A)
No
-12V (A)
0.3
+5Vsb (A)
3
Max. combined power 12V (W)
750
Max. combined power 12V-2x6 (W)
600
Max. combined power 3.3V + 5V (W)
120
Hold-up time at 100% load (ms)
17.34
Hold-up time at 80% load (ms)
21.50
Power good signal (ms)
100 - 150
Cables and connectors
Modular cables
No
Sleeved cables
P24
Flat cables
P4+4, P4, PCIe, drives
Maximum cable length (cm)
55
Cable length to motherboard (cm)
81
No. of cables
8
ATX-Motherboard (20+4-pin)
1
P4+4 (CPU)
1
P8 (CPU)
No
P4 (CPU)
1
12V-2x6 cables
1
PCI-e 6+2-pin (GPU)
2
PCI-e 6-pin (GPU)
No
SATA
6
PATA
1
FDD (Floppy)
No
Protection
OTP (over temperature protection)
Yes
OCP (over current protection)
Yes
OPP (over power protection)
Yes
SCP (short circuit protection)
yes
OVP (over Voltage protection)
Yes
UVP (under Voltage protection)
Yes
SIP (Surge & Inrush protection)
Yes
Safety certification
BSMI
No
CB
No
CCC
No
CE
Yes
cRUus
No
cTUVus
No
CU
Yes
FCC
No
RCM
No
TÜV
Yes
UKCA
Yes
IRAM
No
Environmental directives
Energy Star
8.0
ErP
Yes
WEEE
Yes
RoHS
Yes
Triman
No
Scope of delivery
Thumb screws
No
Screws
Yes
Cable ties
Yes
Velcro cable ties
No
User manual languages
No
OCK slot bracket with switch / OCK jumper
No
SFX-to-ATX adapter bracket
No
Casing
Dimensions without cable (L x W x H), (mm)
86 x 150 x 140
Weight (kg)
2.04
Color
Black
Logistics data and RRP
Dimensions, package (L x W x H), (mm)
268 x 195 x 97
Gross weight, package (kg)
2.4
Pieces per packaging unit
6
Dimensions, shipping box (L x W x H), (mm)
556 x 311 x 218
Gross weight, shipping box (kg)
15.6
Service
Warranty (Years)
5
BP012EU
102 Items
Data sheet
- Warranty
- 5 Years
- Form Factor
- ATX
- Additional Features
- See Overview
- Series
- Be Quiet! System Power 11
- Colour
- Black
- Weight/Dimensions
- 2.04 kg(LxWxH) 86 x 150 x 140 mm
- Package Contents
- Power SupplyScrewsCable TiesUser Manual
- Compatibility
- ATX 3.1PCIe 5.1EPS 12V v2.92
- Connectors
- 1 x ATX-Motherboard (20+4-pin)1 x P4+4 (CPU)1 x P8 (CPU)1 x 12V-2x6 cables3 x PCI-e 6+2-pin (GPU)6 x SATA1 x PATA
- Wattage
- 750W
- Efficiency
- 80+ Bronze230V, 2% load: 65.5%230V, 10% load: 85.0%230V, 20% load: 89.1%230V, 50% load: 90.0%230V, 100% load: 86.6%
- Modular
- No
- Rail Design
- Single strong 12V-rail
- AC Input
- 200-240 VAC
- Fan Type
- Temperature-controlled 120mm quality fan
- Noise
- 10% load: 10.5 dB(A)20% load: 10.5 dB(A)50% load: 12.3 dB(A)100% load: 33.4 dB(A)
- Fan Bearing
- Rifle Bearing
- MTBF
- 100,000 Hours
- Certification
- Bronze
- Protection
- OTP (over temperature protection)OCP (over current protection)OPP (over power protection)SCP (short circuit protection)OVP (over Voltage protection)UVP (under Voltage protection)SIP (Surge & Inrush Protection)
- SATA Connections
- 5
- Wattage Range
- 700 - 760W
- Size/Version
- ATX 3.1
- ATX 3.1/3.0
- ATX 3.1
- Max Certification
- Bronze
